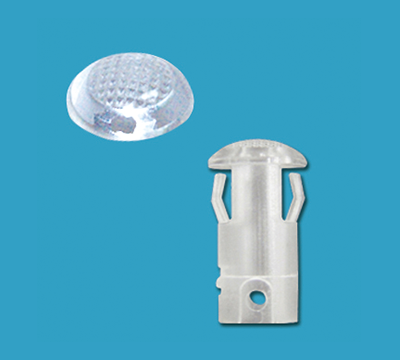

CLEAR LED CAP ROUND EDN-05
- It can become a cover and light transporter for led lamp on the control panel.
- Snapping the unit easily into the hole on panel to assemble.
- High light transmission capability.
- Can be produce in accordance with CUSTOMERS' need.

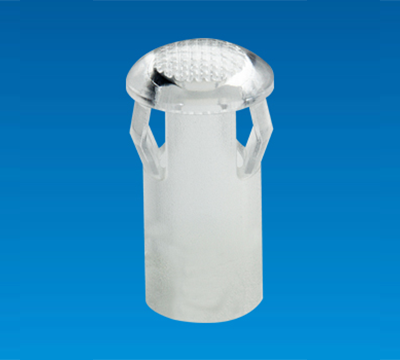

CLEAR LED CAP ROUND EDN-05
FEATURES
SPECIFICATION
FEATURES
- It can become a cover and light transporter for led lamp on the control panel.
- Snapping the unit easily into the hole on panel to assemble.
- High light transmission capability.
- Can be produce in accordance with CUSTOMERS' need.
SPECIFICATION
- MATERIAL: PC (UL)
- FLAME CLASS: 94V-2
- COLOR: CLEAR
| PART NO | A | B | C | D | HOLE IN CHASSIS |
CHASSIS THICKNESS |
SUITABLE LED LAMP |
PACKAGE |
|---|---|---|---|---|---|---|---|---|
| EDN-05 | 13.2 | Ø7.1 | 11.2 | 2.0 | Ø6.0 | 1.6~2.0 | Ø3.0 | 1000 |
