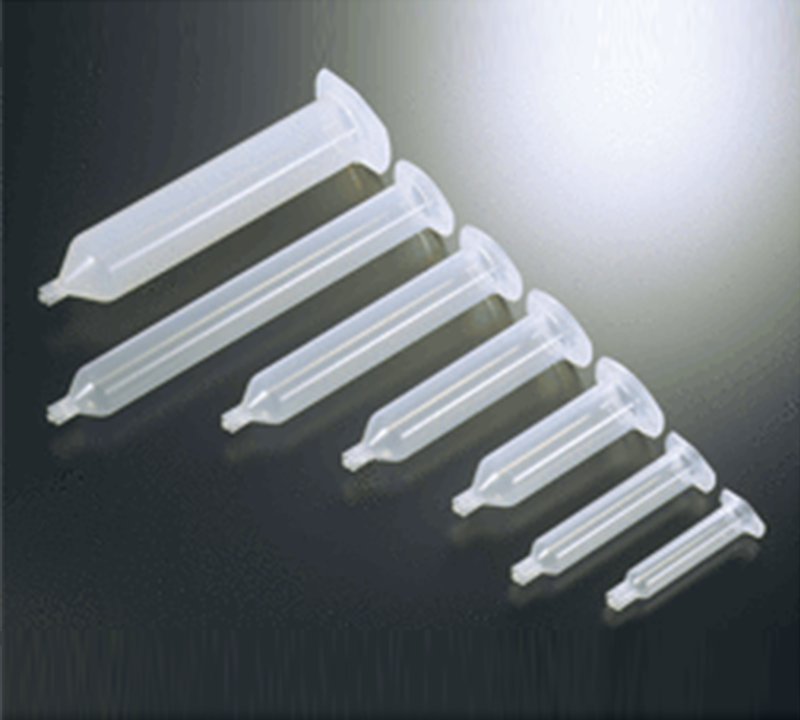

Clear syringe Musashi PSY
Ideal dispensing is achieved by the excellent flow characteristics brought by designing of straight wall inside the syringe
- PSY-[]-[]
These are syringes dedicated for dispensers that hold fluid materials.
The unique shape offers excellent flow characteristics. The straight shape of the wall inside the syringe eliminates knocking of plunger intermittent dispensing. Thus, dispensing stability is greatly improved.
Syringes are available with graduated markings for general use and without markings so that you can check the material level at a glance. Select from nine standard sizes (listed in the table below), taking into account your daily dispensing volume. Material: Polypropylene
The unique shape offers excellent flow characteristics. The straight shape of the wall inside the syringe eliminates knocking of plunger intermittent dispensing. Thus, dispensing stability is greatly improved.
Syringes are available with graduated markings for general use and without markings so that you can check the material level at a glance. Select from nine standard sizes (listed in the table below), taking into account your daily dispensing volume. Material: Polypropylene
| Syringe capacity | Model | Full length (mm) | Dimensions (mm) | Minimum Order Quantity (pcs per pack) | ||
|---|---|---|---|---|---|---|
| Without graduations | With graduations | Outside diameter | Flange dimension | |||
| 1 mL | — | PSY-1E2-M | 84 | φ6.7 | 16x9 | 50 |
| 3 mL | PSY-3E | PSY-3E-M | 80.1 | φ11.7 | 24.3x14.3 | 50 |
| 5 mL | PSY-5E | PSY-5E-M | 80 | φ14.9 | 27x16 | 50 |
| 10 mL | PSY-10E | PSY-10E-M | 105 | φ18.3 | 32x20 | 50 |
| 20 mL | PSY-20F | PSY-20F-M | 104.8 | φ26.2 | 45x30 | 50 |
| 30 mL | PSY-30F | PSY-30F-M | 129.7 | φ26.2 | 45x30 | 50 |
| 50 mL | PSY-50F | PSY-50F-M | 160.7 | φ26.2 | 45x30 | 50 |
| 70 mL | PSY-70F | PSY-70F-M | 223.7 | φ26.5 | 45x30 | 50 |
| 100 mL | PSY-100E | — | 191 | φ35.8 | 60x38.8 | 20 |
