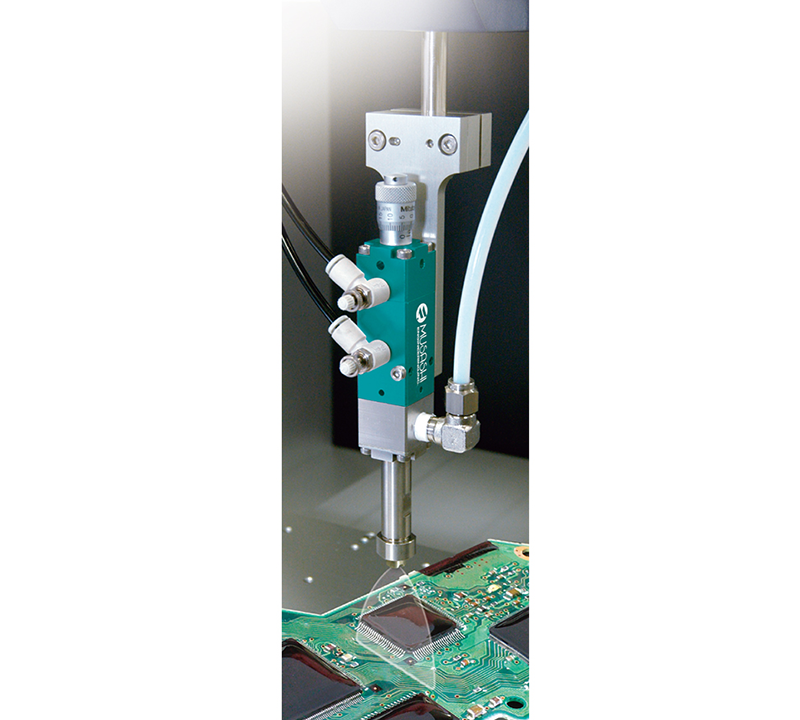

Coating valve Musashi CV-10-2P-1N
Ideal for dispensing thick coatings
- Achieves wide, uniform coatings.
- Precise dispensing without scattering.
- Numerical control of valve stroke.
- Valve controller ME-5000VT
- CV-10-2P-1N
| Model | CV-10-2P-1N |
|---|---|
| Driving system | Pneumatic driven system |
| Compatible viscosity | Up to 100 mPa·s (must not include filler or other solids) |
| Control air supply pressure range | 0.35 to 0.5 MPa |
| Fluid material supply pressure range | Max. 0.5 Mpa |
| Fluid intake port | Rc1/8 (fluid feed joint ordered separately) |
| Fluid dispensing port | Dedicated nozzle |
| Control air | One-touch joint for φ4 outer diameter tube (with speed controller) |
| Operating temperature range | 5 to 60°C |
| Wetted part material | Stainless steel, Fluorine resin, Polyacetal, Ceramic |
| Weight | 237 g |
