Mold Parts
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×16% | F＝L×18% | F＝L×20% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWB | 6 | ||||||||||||
| 15 | 3 | 58.8 | {6.0} | 11.6 | 2.4 | 141.2{14.4} | 2.7 | 158.9{16.2} | 3.0 | 176.5{18.0} | 140 | ||
| 20 | 3 | 44.1 | {4.5} | 15.5 | 3.2 | 141.2{14.4} | 3.6 | 158.9{16.2} | 4.0 | 176.5{18.0} | 145 | ||
| 25 | 3 | 35.3 | {3.6} | 19.4 | 4.0 | 141.2{14.4} | 4.5 | 158.9{16.2} | 5.0 | 176.5{18.0} | 155 | ||
| 30 | 3 | 29.4 | {3.0} | 23.2 | 4.8 | 141.2{14.4} | 5.4 | 158.9{16.2} | 6.0 | 176.5{18.0} | 155 | ||
| 35 | 3 | 25.2 | {2.6} | 27.1 | 5.6 | 141.2{14.4} | 6.3 | 158.9{16.2} | 7.0 | 176.5{18.0} | 160 | ||
| 40 | 3 | 22.1 | {2.3} | 31.0 | 6.4 | 141.2{14.4} | 7.2 | 158.9{16.2} | 8.0 | 176.5{18.0} | 170 | ||
| 45 | 3 | 19.6 | {2.0} | 34.8 | 7.2 | 141.2{14.4} | 8.1 | 158.9{16.2} | 9.0 | 176.5{18.0} | 185 | ||
| 50 | 3 | 17.6 | {1.8} | 38.7 | 8.0 | 141.2{14.4} | 9.0 | 158.9{16.2} | 10.0 | 176.5{18.0} | 195 | ||
| 55 | 3 | 16.1 | {1.6} | 42.6 | 8.8 | 141.2{14.4} | 9.9 | 158.9{16.2} | 11.0 | 176.5{18.0} | 205 | ||
| 60 | 3 | 14.7 | {1.5} | 46.4 | 9.6 | 141.2{14.4} | 10.8 | 158.9{16.2} | 12.0 | 176.5{18.0} | 215 | ||
| SSWB | 8 | ||||||||||||
| 10 | 4 | 161.8 | {16.5} | 7.7 | 1.6 | 258.9{26.4} | 1.8 | 291.3{29.7} | 2.0 | 323.6{33.0} | 110 | ||
| 15 | 4 | 107.9 | {11.0} | 11.6 | 2.4 | 258.9{26.4} | 2.7 | 291.3{29.7} | 3.0 | 323.6{33.0} | 110 | ||
| 20 | 4 | 80.9 | {8.3} | 15.9 | 3.2 | 258.9{26.4} | 3.6 | 291.3{29.7} | 4.0 | 323.6{33.0} | 120 | ||
| 25 | 4 | 64.7 | {6.6} | 19.4 | 4.0 | 258.9{26.4} | 4.5 | 291.3{29.7} | 5.0 | 323.6{33.0} | 130 | ||
| 30 | 4 | 53.9 | {5.5} | 23.2 | 4.8 | 258.9{26.4} | 5.4 | 291.3{29.7} | 6.0 | 323.6{33.0} | 140 | ||
| 35 | 4 | 46.2 | {4.7} | 27.1 | 5.6 | 258.9{26.4} | 6.3 | 291.3{29.7} | 7.0 | 323.6{33.0} | 145 | ||
| 40 | 4 | 40.5 | {4.1} | 31.0 | 6.4 | 258.9{26.4} | 7.2 | 291.3{29.7} | 8.0 | 323.6{33.0} | 155 | ||
| 45 | 4 | 36.0 | {3.7} | 34.8 | 7.2 | 258.9{26.4} | 8.1 | 291.3{29.7} | 9.0 | 323.6{33.0} | 160 | ||
| 50 | 4 | 32.4 | {3.3} | 38.7 | 8.0 | 258.9{26.4} | 9.0 | 291.3{29.7} | 10.0 | 323.6{33.0} | 170 | ||
| 55 | 4 | 29.4 | {3.0} | 42.6 | 8.8 | 258.9{26.4} | 9.9 | 291.3{29.7} | 11.0 | 323.6{33.0} | 180 | ||
| 60 | 4 | 27.0 | {2.8} | 46.4 | 9.6 | 258.9{26.4} | 10.8 | 291.3{29.7} | 12.0 | 323.6{33.0} | 185 | ||
| 65 | 4 | 24.9 | {2.5} | 50.3 | 10.4 | 258.9{26.4} | 11.7 | 291.3{29.7} | 13.0 | 323.6{33.0} | 220 | ||
| 70 | 4 | 23.1 | {2.4} | 54.2 | 11.2 | 258.9{26.4} | 12.6 | 291.3{29.7} | 14.0 | 323.6{33.0} | 240 | ||
| 75 | 4 | 21.6 | {2.2} | 58.1 | 12.0 | 258.9{26.4} | 13.5 | 291.3{29.7} | 15.0 | 323.6{33.0} | 255 | ||
| 80 | 4 | 20.2 | {2.1} | 61.9 | 12.8 | 258.9{26.4} | 14.4 | 291.3{29.7} | 16.0 | 323.6{33.0} | 275 | ||
| SSWB | 10 | ||||||||||||
| 10 | 5 | 220.7 | {22.5} | 7.7 | 1.6 | 353.0{36.0} | 1.8 | 397.2{40.5} | 2.0 | 441.3{45.0} | 110 | ||
| 15 | 5 | 147.1 | {15.0} | 11.6 | 2.4 | 353.0{36.0} | 2.7 | 397.2{40.5} | 3.0 | 441.3{45.0} | 110 | ||
| 20 | 5 | 110.3 | {11.3} | 15.5 | 3.2 | 353.0{36.0} | 3.6 | 397.2{40.5} | 4.0 | 441.3{45.0} | 110 | ||
| 25 | 5 | 88.3 | {9.0} | 19.4 | 4.0 | 353.0{36.0} | 4.5 | 397.2{40.5} | 5.0 | 441.3{45.0} | 120 | ||
| 30 | 5 | 73.5 | {7.5} | 23.2 | 4.8 | 353.0{36.0} | 5.4 | 397.2{40.5} | 6.0 | 441.3{45.0} | 130 | ||
| 35 | 5 | 63.0 | {6.4} | 27.1 | 5.6 | 353.0{36.0} | 6.3 | 397.2{40.5} | 7.0 | 441.3{45.0} | 140 | ||
| 40 | 5 | 55.2 | {5.6} | 31.0 | 6.4 | 353.0{36.0} | 7.2 | 397.2{40.5} | 8.0 | 441.3{45.0} | 145 | ||
| 45 | 5 | 49.0 | {5.0} | 34.8 | 7.2 | 353.0{36.0} | 8.1 | 397.2{40.5} | 9.0 | 441.3{45.0} | 155 | ||
| 50 | 5 | 44.1 | {4.5} | 38.7 | 8.0 | 353.0{36.0} | 9.0 | 397.2{40.5} | 10.0 | 441.3{45.0} | 155 | ||
| 55 | 5 | 40.1 | {4.1} | 42.6 | 8.8 | 353.0{36.0} | 9.9 | 397.2{40.5} | 11.0 | 441.3{45.0} | 160 | ||
| 60 | 5 | 36.8 | {3.8} | 46.4 | 9.6 | 353.0{36.0} | 10.8 | 397.2{40.5} | 12.0 | 441.3{45.0} | 170 | ||
| 65 | 5 | 33.9 | {3.5} | 50.3 | 10.4 | 353.0{36.0} | 11.7 | 397.2{40.5} | 13.0 | 441.3{45.0} | 180 | ||
| 70 | 5 | 31.5 | {3.2} | 54.2 | 11.2 | 353.0{36.0} | 12.6 | 397.2{40.5} | 14.0 | 441.3{45.0} | 185 | ||
| 75 | 5 | 29.4 | {3.0} | 58.1 | 12.0 | 353.0{36.0} | 13.5 | 397.2{40.5} | 15.0 | 441.3{45.0} | 195 | ||
| 80 | 5 | 27.6 | {2.8} | 61.9 | 12.8 | 353.0{36.0} | 14.4 | 397.2{40.5} | 16.0 | 441.3{45.0} | 205 | ||
| 90 | 5 | 24.5 | {2.5} | 69.7 | 14.4 | 353.0{36.0} | 16.2 | 397.2{40.5} | 18.0 | 441.3{45.0} | 225 | ||
| SSWB | 12 | ||||||||||||
| 15 | 6 | 189.6 | {19.3} | 11.6 | 2.4 | 455.0{46.4} | 2.7 | 511.9{52.2} | 3.0 | 568.8{58.0} | 145 | ||
| 20 | 6 | 142.2 | {14.5} | 15.5 | 3.2 | 455.0{46.4} | 3.6 | 511.9{52.2} | 4.0 | 568.8{58.0} | 145 | ||
| 25 | 6 | 113.8 | {11.6} | 19.4 | 4.0 | 455.0{46.4} | 4.5 | 511.9{52.2} | 5.0 | 568.8{58.0} | 155 | ||
| 30 | 6 | 94.8 | {9.7} | 23.2 | 4.8 | 455.0{46.4} | 5.4 | 511.9{52.2} | 6.0 | 568.8{58.0} | 155 | ||
| 35 | 6 | 81.3 | {8.3} | 27.1 | 5.6 | 455.0{46.4} | 6.3 | 511.9{52.2} | 7.0 | 568.8{58.0} | 160 | ||
| 40 | 6 | 71.1 | {7.3} | 31.0 | 6.4 | 455.0{46.4} | 7.2 | 511.9{52.2} | 8.0 | 568.8{58.0} | 170 | ||
| 45 | 6 | 63.2 | {6.4} | 34.8 | 7.2 | 455.0{46.4} | 8.1 | 511.9{52.2} | 9.0 | 568.8{58.0} | 185 | ||
| 50 | 6 | 56.9 | {5.8} | 38.7 | 8.0 | 455.0{46.4} | 9.0 | 511.9{52.2} | 10.0 | 568.8{58.0} | 195 | ||
| 55 | 6 | 51.7 | {5.3} | 42.6 | 8.8 | 455.0{46.4} | 9.9 | 511.9{52.2} | 11.0 | 568.8{58.0} | 205 | ||
| 60 | 6 | 47.4 | {4.8} | 46.4 | 9.6 | 455.0{46.4} | 10.8 | 511.9{52.2} | 12.0 | 568.8{58.0} | 215 | ||
| 65 | 6 | 43.8 | {4.5} | 50.3 | 10.4 | 455.0{46.4} | 11.7 | 511.9{52.2} | 13.0 | 568.8{58.0} | 225 | ||
| 70 | 6 | 40.6 | {4.1} | 54.2 | 11.2 | 455.0{46.4} | 12.6 | 511.9{52.2} | 14.0 | 568.8{58.0} | 235 | ||
| 75 | 6 | 37.9 | {3.9} | 58.1 | 12.0 | 455.0{46.4} | 13.5 | 511.9{52.2} | 15.0 | 568.8{58.0} | 240 | ||
| 80 | 6 | 35.5 | {3.6} | 61.9 | 12.8 | 455.0{46.4} | 14.4 | 511.9{52.2} | 16.0 | 568.8{58.0} | 260 | ||
| 90 | 6 | 31.6 | {3.2} | 69.7 | 14.4 | 455.0{46.4} | 16.2 | 511.9{52.2} | 18.0 | 568.8{58.0} | 280 | ||
| SSWB | 14 | ||||||||||||
| 20 | 7 | 183.9 | {18.8} | 15.5 | 3.2 | 588.4{60.0} | 3.6 | 661.9{67.5} | 4.0 | 735.5{75.0} | 170 | ||
| 25 | 7 | 147.1 | {15.0} | 19.4 | 4.0 | 588.4{60.0} | 4.5 | 661.9{67.5} | 5.0 | 735.5{75.0} | 170 | ||
| 30 | 7 | 122.6 | {12.5} | 23.2 | 4.8 | 588.4{60.0} | 5.4 | 661.9{67.5} | 6.0 | 735.5{75.0} | 170 | ||
| 35 | 7 | 105.1 | {10.7} | 27.1 | 5.6 | 588.4{60.0} | 6.3 | 661.9{67.5} | 7.0 | 735.5{75.0} | 180 | ||
| 40 | 7 | 91.9 | {9.4} | 31.0 | 6.4 | 588.4{60.0} | 7.2 | 661.9{67.5} | 8.0 | 735.5{75.0} | 185 | ||
| 45 | 7 | 81.7 | {8.3} | 34.8 | 7.2 | 588.4{60.0} | 8.1 | 661.9{67.5} | 9.0 | 735.5{75.0} | 195 | ||
| 50 | 7 | 73.5 | {7.5} | 38.7 | 8.0 | 588.4{60.0} | 9.0 | 661.9{67.5} | 10.0 | 735.5{75.0} | 205 | ||
| 55 | 7 | 66.9 | {6.8} | 42.6 | 8.8 | 588.4{60.0} | 9.9 | 661.9{67.5} | 11.0 | 735.5{75.0} | 225 | ||
| 60 | 7 | 61.3 | {6.3} | 46.4 | 9.6 | 588.4{60.0} | 10.8 | 661.9{67.5} | 12.0 | 735.5{75.0} | 235 | ||
| 65 | 7 | 56.6 | {5.8} | 50.3 | 10.4 | 588.4{60.0} | 11.7 | 661.9{67.5} | 13.0 | 735.5{75.0} | 250 | ||
| 70 | 7 | 52.5 | {5.4} | 54.2 | 11.2 | 588.4{60.0} | 12.6 | 661.9{67.5} | 14.0 | 735.5{75.0} | 260 | ||
| 75 | 7 | 49.0 | {5.0} | 58.1 | 12.0 | 588.4{60.0} | 13.5 | 661.9{67.5} | 15.0 | 735.5{75.0} | 270 | ||
| 80 | 7 | 46.0 | {4.7} | 61.9 | 12.8 | 588.4{60.0} | 14.4 | 661.9{67.5} | 16.0 | 735.5{75.0} | 275 | ||
| 90 | 7 | 40.9 | {4.2} | 69.7 | 14.4 | 588.4{60.0} | 16.2 | 661.9{67.5} | 18.0 | 735.5{75.0} | 285 | ||
| 100 | 7 | 36.8 | {3.8} | 77.4 | 16.0 | 588.4{60.0} | 18.0 | 661.9{67.5} | 20.0 | 735.5{75.0} | 310 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×16% | F＝L×18% | F＝L×20% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWB | 16 | ||||||||||||
| 20 | 8 | 245.2 | {25.0} | 15.5 | 3.2 | 784.5{80.0} | 3.6 | 882.6{90.0} | 4.0 | 980.7{100} | 180 | ||
| 25 | 8 | 196.1 | {20.0} | 19.4 | 4.0 | 784.5{80.0} | 4.5 | 882.6{90.0} | 5.0 | 980.7{100} | 180 | ||
| 30 | 8 | 163.4 | {16.7} | 23.2 | 4.8 | 784.5{80.0} | 5.4 | 882.6{90.0} | 6.0 | 980.7{100} | 185 | ||
| 35 | 8 | 140.1 | {14.3} | 27.1 | 5.6 | 784.5{80.0} | 6.3 | 882.6{90.0} | 7.0 | 980.7{100} | 195 | ||
| 40 | 8 | 122.6 | {12.5} | 31.0 | 6.4 | 784.5{80.0} | 7.2 | 882.6{90.0} | 8.0 | 980.7{100} | 205 | ||
| 45 | 8 | 109.0 | {11.1} | 34.8 | 7.2 | 784.5{80.0} | 8.1 | 882.6{90.0} | 9.0 | 980.7{100} | 225 | ||
| 50 | 8 | 98.1 | {10.0} | 38.7 | 8.0 | 784.5{80.0} | 9.0 | 882.6{90.0} | 10.0 | 980.7{100} | 235 | ||
| 55 | 8 | 89.2 | {9.1} | 42.6 | 8.8 | 784.5{80.0} | 9.9 | 882.6{90.0} | 11.0 | 980.7{100} | 250 | ||
| 60 | 8 | 81.7 | {8.3} | 46.4 | 9.6 | 784.5{80.0} | 10.8 | 882.6{90.0} | 12.0 | 980.7{100} | 260 | ||
| 65 | 8 | 75.4 | {7.7} | 50.3 | 10.4 | 784.5{80.0} | 11.7 | 882.6{90.0} | 13.0 | 980.7{100} | 275 | ||
| 70 | 8 | 70.1 | {7.1} | 54.2 | 11.2 | 784.5{80.0} | 12.6 | 882.6{90.0} | 14.0 | 980.7{100} | 285 | ||
| 75 | 8 | 65.4 | {6.7} | 58.1 | 12.0 | 784.5{80.0} | 13.5 | 882.6{90.0} | 15.0 | 980.7{100} | 305 | ||
| 80 | 8 | 61.3 | {6.3} | 61.9 | 12.8 | 784.5{80.0} | 14.4 | 882.6{90.0} | 16.0 | 980.7{100} | 325 | ||
| 90 | 8 | 54.5 | {5.6} | 69.7 | 14.4 | 784.5{80.0} | 16.2 | 882.6{90.0} | 18.0 | 980.7{100} | 335 | ||
| 100 | 8 | 49.0 | {5.0} | 77.4 | 16.0 | 784.5{80.0} | 18.0 | 882.6{90.0} | 20.0 | 980.7{100} | 350 | ||
| SSWB | 18 | ||||||||||||
| 20 | 9 | 306.4 | {31.3} | 15.5 | 3.2 | 980.7{100} | 3.6 | 1108{113} | 4.0 | 1226{125} | 180 | ||
| 25 | 9 | 245.2 | {25.0} | 19.4 | 4.0 | 980.7{100} | 4.5 | 1108{113} | 5.0 | 1226{125} | 180 | ||
| 30 | 9 | 204.3 | {20.8} | 23.2 | 4.8 | 980.7{100} | 5.4 | 1108{113} | 6.0 | 1226{125} | 185 | ||
| 35 | 9 | 175.1 | {17.9} | 27.1 | 5.6 | 980.7{100} | 6.3 | 1108{113} | 7.0 | 1226{125} | 205 | ||
| 40 | 9 | 153.2 | {15.6} | 31.0 | 6.4 | 980.7{100} | 7.2 | 1108{113} | 8.0 | 1226{125} | 215 | ||
| 45 | 9 | 136.2 | {13.9} | 34.8 | 7.2 | 980.7{100} | 8.1 | 1108{113} | 9.0 | 1226{125} | 235 | ||
| 50 | 9 | 122.6 | {12.5} | 38.7 | 8.0 | 980.7{100} | 9.0 | 1108{113} | 10.0 | 1226{125} | 240 | ||
| 55 | 9 | 111.4 | {11.4} | 42.6 | 8.8 | 980.7{100} | 9.9 | 1108{113} | 11.0 | 1226{125} | 260 | ||
| 60 | 9 | 102.2 | {10.4} | 46.4 | 9.6 | 980.7{100} | 10.8 | 1108{113} | 12.0 | 1226{125} | 270 | ||
| 65 | 9 | 94.3 | {9.6} | 50.3 | 10.4 | 980.7{100} | 11.7 | 1108{113} | 13.0 | 1226{125} | 285 | ||
| 70 | 9 | 87.6 | {8.9} | 54.2 | 11.2 | 980.7{100} | 12.6 | 1108{113} | 14.0 | 1226{125} | 295 | ||
| 75 | 9 | 81.7 | {8.3} | 58.1 | 12.0 | 980.7{100} | 13.5 | 1108{113} | 15.0 | 1226{125} | 315 | ||
| 80 | 9 | 76.6 | {7.8} | 61.9 | 12.8 | 980.7{100} | 14.4 | 1108{113} | 16.0 | 1226{125} | 335 | ||
| 90 | 9 | 68.1 | {6.9} | 69.7 | 14.4 | 980.7{100} | 16.2 | 1108{113} | 18.0 | 1226{125} | 360 | ||
| 100 | 9 | 61.3 | {6.3} | 77.4 | 16.0 | 980.7{100} | 18.0 | 1108{113} | 20.0 | 1226{125} | 395 | ||
| SSWB | 20 | ||||||||||||
| 20 | 10 | 392.3 | {40.0} | 15.5 | 3.2 | 1255{128} | 3.6 | 1412{144} | 4.0 | 1569{160} | 180 | ||
| 25 | 10 | 313.8 | {32.0} | 19.4 | 4.0 | 1255{128} | 4.5 | 1412{144} | 5.0 | 1569{160} | 180 | ||
| 30 | 10 | 261.5 | {26.7} | 23.2 | 4.8 | 1255{128} | 5.4 | 1412{144} | 6.0 | 1569{160} | 185 | ||
| 35 | 10 | 224.2 | {22.9} | 27.1 | 5.6 | 1255{128} | 6.3 | 1412{144} | 7.0 | 1569{160} | 195 | ||
| 40 | 10 | 196.1 | {20.0} | 31.0 | 6.4 | 1255{128} | 7.2 | 1412{144} | 8.0 | 1569{160} | 215 | ||
| 45 | 10 | 174.3 | {17.8} | 34.8 | 7.2 | 1255{128} | 8.1 | 1412{144} | 9.0 | 1569{160} | 235 | ||
| 50 | 10 | 156.9 | {16.0} | 38.7 | 8.0 | 1255{128} | 9.0 | 1412{144} | 10.0 | 1569{160} | 250 | ||
| 55 | 10 | 142.6 | {14.6} | 42.6 | 8.8 | 1255{128} | 9.9 | 1412{144} | 11.0 | 1569{160} | 270 | ||
| 60 | 10 | 130.8 | {13.3} | 46.4 | 9.6 | 1255{128} | 10.8 | 1412{144} | 12.0 | 1569{160} | 275 | ||
| 65 | 10 | 120.7 | {12.3} | 50.3 | 10.4 | 1255{128} | 11.7 | 1412{144} | 13.0 | 1569{160} | 295 | ||
| 70 | 10 | 112.1 | {11.4} | 54.2 | 11.2 | 1255{128} | 12.6 | 1412{144} | 14.0 | 1569{160} | 315 | ||
| 75 | 10 | 104.6 | {10.7} | 58.1 | 12.0 | 1255{128} | 13.5 | 1412{144} | 15.0 | 1569{160} | 335 | ||
| 80 | 10 | 98.1 | {10.0} | 61.9 | 12.8 | 1255{128} | 14.4 | 1412{144} | 16.0 | 1569{160} | 340 | ||
| 90 | 10 | 87.2 | {8.9} | 69.7 | 14.4 | 1255{128} | 16.2 | 1412{144} | 18.0 | 1569{160} | 365 | ||
| 100 | 10 | 78.5 | {8.0} | 77.4 | 16.0 | 1255{128} | 18.0 | 1412{144} | 20.0 | 1569{160} | 405 | ||
| 125 | 10 | 62.8 | {6.4} | 96.8 | 20.0 | 1255{128} | 22.5 | 1412{144} | 25.0 | 1569{160} | 475 | ||
| 150 | 10 | 52.3 | {5.3} | 116.1 | 24.0 | 1255{128} | 27.0 | 1412{144} | 30.0 | 1569{160} | 545 | ||
| SSWB | 22 | ||||||||||||
| 25 | 11 | 382.5 | {39.0} | 19.4 | 4.0 | 1530{156} | 4.5 | 1726{176} | 5.0 | 1912{195} | 180 | ||
| 30 | 11 | 318.7 | {32.5} | 23.2 | 4.8 | 1530{156} | 5.4 | 1726{176} | 6.0 | 1912{195} | 195 | ||
| 35 | 11 | 273.2 | {27.9} | 27.1 | 5.6 | 1530{156} | 6.3 | 1726{176} | 7.0 | 1912{195} | 205 | ||
| 40 | 11 | 239.0 | {24.4} | 31.0 | 6.4 | 1530{156} | 7.2 | 1726{176} | 8.0 | 1912{195} | 225 | ||
| 45 | 11 | 212.5 | {21.7} | 34.8 | 7.2 | 1530{156} | 8.1 | 1726{176} | 9.0 | 1912{195} | 240 | ||
| 50 | 11 | 191.2 | {19.5} | 38.7 | 8.0 | 1530{156} | 9.0 | 1726{176} | 10.0 | 1912{195} | 260 | ||
| 55 | 11 | 173.8 | {17.7} | 42.6 | 8.8 | 1530{156} | 9.9 | 1726{176} | 11.0 | 1912{195} | 275 | ||
| 60 | 11 | 159.4 | {16.3} | 46.4 | 9.6 | 1530{156} | 10.8 | 1726{176} | 12.0 | 1912{195} | 285 | ||
| 65 | 11 | 147.1 | {15.0} | 50.3 | 10.4 | 1530{156} | 11.7 | 1726{176} | 13.0 | 1912{195} | 305 | ||
| 70 | 11 | 136.6 | {13.9} | 54.2 | 11.2 | 1530{156} | 12.6 | 1726{176} | 14.0 | 1912{195} | 325 | ||
| 75 | 11 | 127.5 | {13.0} | 58.1 | 12.0 | 1530{156} | 13.5 | 1726{176} | 15.0 | 1912{195} | 335 | ||
| 80 | 11 | 119.5 | {12.2} | 61.9 | 12.8 | 1530{156} | 14.4 | 1726{176} | 16.0 | 1912{195} | 350 | ||
| 90 | 11 | 106.2 | {10.8} | 69.7 | 14.4 | 1530{156} | 16.2 | 1726{176} | 18.0 | 1912{195} | 375 | ||
| 100 | 11 | 95.6 | {9.8} | 77.4 | 16.0 | 1530{156} | 18.0 | 1726{176} | 20.0 | 1912{195} | 415 | ||
| 125 | 11 | 76.5 | {7.8} | 96.8 | 20.0 | 1530{156} | 22.5 | 1726{176} | 25.0 | 1912{195} | 495 | ||
| 150 | 11 | 63.7 | {6.5} | 116.1 | 24.0 | 1530{156} | 27.0 | 1726{176} | 30.0 | 1912{195} | 565 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×16% | F＝L×18% | F＝L×20% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWB | 25 | ||||||||||||
| 25 | 12.5 | 480.6 | {49.0} | 19.0 | 4.0 | 1922{196} | 4.5 | 2167{221} | 5.0 | 2403{245} | 185 | ||
| 30 | 12.5 | 400.4 | {40.9} | 22.8 | 4.8 | 1922{196} | 5.4 | 2167{221} | 6.0 | 2403{245} | 195 | ||
| 35 | 12.5 | 343.2 | {35.0} | 26.6 | 5.6 | 1922{196} | 6.3 | 2167{221} | 7.0 | 2403{245} | 215 | ||
| 40 | 12.5 | 300.3 | {30.6} | 30.4 | 6.4 | 1922{196} | 7.2 | 2167{221} | 8.0 | 2403{245} | 235 | ||
| 45 | 12.5 | 267.0 | {27.2} | 34.2 | 7.2 | 1922{196} | 8.1 | 2167{221} | 9.0 | 2403{245} | 250 | ||
| 50 | 12.5 | 240.3 | {24.5} | 38.0 | 8.0 | 1922{196} | 9.0 | 2167{221} | 10.0 | 2403{245} | 270 | ||
| 55 | 12.5 | 218.4 | {22.3} | 41.8 | 8.8 | 1922{196} | 9.9 | 2167{221} | 11.0 | 2403{245} | 275 | ||
| 60 | 12.5 | 200.2 | {20.4} | 45.6 | 9.6 | 1922{196} | 10.8 | 2167{221} | 12.0 | 2403{245} | 295 | ||
| 65 | 12.5 | 184.8 | {18.9} | 49.4 | 10.4 | 1922{196} | 11.7 | 2167{221} | 13.0 | 2403{245} | 315 | ||
| 70 | 12.5 | 171.6 | {17.5} | 53.2 | 11.2 | 1922{196} | 12.6 | 2167{221} | 14.0 | 2403{245} | 335 | ||
| 75 | 12.5 | 160.2 | {16.3} | 57.0 | 12.0 | 1922{196} | 13.5 | 2167{221} | 15.0 | 2403{245} | 340 | ||
| 80 | 12.5 | 150.2 | {15.3} | 60.8 | 12.8 | 1922{196} | 14.4 | 2167{221} | 16.0 | 2403{245} | 350 | ||
| 90 | 12.5 | 133.5 | {13.6} | 68.4 | 14.4 | 1922{196} | 16.2 | 2167{221} | 18.0 | 2403{245} | 385 | ||
| 100 | 12.5 | 120.1 | {12.3} | 76.0 | 16.0 | 1922{196} | 18.0 | 2167{221} | 20.0 | 2403{245} | 425 | ||
| 125 | 12.5 | 96.1 | {9.8} | 95.0 | 20.0 | 1922{196} | 22.5 | 2167{221} | 25.0 | 2403{245} | 505 | ||
| 150 | 12.5 | 80.1 | {8.2} | 114.0 | 24.0 | 1922{196} | 27.0 | 2167{221} | 30.0 | 2403{245} | 585 | ||
| 175 | 12.5 | 68.6 | {7.0} | 133.0 | 28.0 | 1922{196} | 31.5 | 2167{221} | 35.0 | 2403{245} | 675 | ||
| SSWB | 27 | ||||||||||||
| 25 | 13.5 | 568.8 | {58.0} | 19.0 | 4.0 | 2275{232} | 4.5 | 2560{261} | 5.0 | 2844{290} | 205 | ||
| 30 | 13.5 | 474.0 | {48.4} | 22.8 | 4.8 | 2275{232} | 5.4 | 2560{261} | 6.0 | 2844{290} | 225 | ||
| 35 | 13.5 | 406.3 | {41.5} | 26.6 | 5.6 | 2275{232} | 6.3 | 2560{261} | 7.0 | 2844{290} | 240 | ||
| 40 | 13.5 | 355.5 | {36.3} | 30.4 | 6.4 | 2275{232} | 7.2 | 2560{261} | 8.0 | 2844{290} | 260 | ||
| 45 | 13.5 | 316.0 | {32.2} | 34.2 | 7.2 | 2275{232} | 8.1 | 2560{261} | 9.0 | 2844{290} | 275 | ||
| 50 | 13.5 | 284.4 | {29.0} | 38.0 | 8.0 | 2275{232} | 9.0 | 2560{261} | 10.0 | 2844{290} | 285 | ||
| 55 | 13.5 | 258.5 | {26.4} | 41.8 | 8.8 | 2275{232} | 9.9 | 2560{261} | 11.0 | 2844{290} | 305 | ||
| 60 | 13.5 | 237.0 | {24.2} | 45.6 | 9.6 | 2275{232} | 10.8 | 2560{261} | 12.0 | 2844{290} | 325 | ||
| 65 | 13.5 | 218.8 | {22.3} | 49.4 | 10.4 | 2275{232} | 11.7 | 2560{261} | 13.0 | 2844{290} | 335 | ||
| 70 | 13.5 | 203.1 | {20.7} | 53.2 | 11.2 | 2275{232} | 12.6 | 2560{261} | 14.0 | 2844{290} | 350 | ||
| 75 | 13.5 | 189.6 | {19.3} | 57.0 | 12.0 | 2275{232} | 13.5 | 2560{261} | 15.0 | 2844{290} | 360 | ||
| 80 | 13.5 | 177.7 | {18.1} | 60.8 | 12.8 | 2275{232} | 14.4 | 2560{261} | 16.0 | 2844{290} | 375 | ||
| 90 | 13.5 | 158.0 | {16.1} | 68.4 | 14.4 | 2275{232} | 16.2 | 2560{261} | 18.0 | 2844{290} | 430 | ||
| 100 | 13.5 | 142.2 | {14.5} | 76.0 | 16.0 | 2275{232} | 18.0 | 2560{261} | 20.0 | 2844{290} | 475 | ||
| 125 | 13.5 | 113.8 | {11.6} | 95.0 | 20.0 | 2275{232} | 22.5 | 2560{261} | 25.0 | 2844{290} | 585 | ||
| 150 | 13.5 | 94.8 | {9.7} | 114.0 | 24.0 | 2275{232} | 27.0 | 2560{261} | 30.0 | 2844{290} | 685 | ||
| 175 | 13.5 | 81.3 | {8.3} | 133.0 | 28.0 | 2275{232} | 31.5 | 2560{261} | 35.0 | 2844{290} | 795 | ||
| SSWB | 30 | ||||||||||||
| 25 | 15 | 706.1 | {72.0} | 19.0 | 4.0 | 2824{288} | 4.5 | 3177{324} | 5.0 | 3530{360} | 225 | ||
| 30 | 15 | 588.4 | {60.0} | 22.8 | 4.8 | 2824{288} | 5.4 | 3177{324} | 6.0 | 3530{360} | 240 | ||
| 35 | 15 | 504.3 | {51.5} | 26.6 | 5.6 | 2824{288} | 6.3 | 3177{324} | 7.0 | 3530{360} | 270 | ||
| 40 | 15 | 441.3 | {45.0} | 30.4 | 6.4 | 2824{288} | 7.2 | 3177{324} | 8.0 | 3530{360} | 275 | ||
| 45 | 15 | 392.3 | {40.0} | 34.2 | 7.2 | 2824{288} | 8.1 | 3177{324} | 9.0 | 3530{360} | 305 | ||
| 50 | 15 | 353.0 | {36.0} | 38.0 | 8.0 | 2824{288} | 9.0 | 3177{324} | 10.0 | 3530{360} | 325 | ||
| 55 | 15 | 320.9 | {32.7} | 41.8 | 8.8 | 2824{288} | 9.9 | 3177{324} | 11.0 | 3530{360} | 340 | ||
| 60 | 15 | 294.2 | {30.0} | 45.6 | 9.6 | 2824{288} | 10.8 | 3177{324} | 12.0 | 3530{360} | 350 | ||
| 65 | 15 | 271.6 | {27.7} | 49.4 | 10.4 | 2824{288} | 11.7 | 3177{324} | 13.0 | 3530{360} | 375 | ||
| 70 | 15 | 252.2 | {25.7} | 53.2 | 11.2 | 2824{288} | 12.6 | 3177{324} | 14.0 | 3530{360} | 395 | ||
| 75 | 15 | 235.4 | {24.0} | 57.0 | 12.0 | 2824{288} | 13.5 | 3177{324} | 15.0 | 3530{360} | 425 | ||
| 80 | 15 | 220.7 | {22.5} | 60.8 | 12.8 | 2824{288} | 14.4 | 3177{324} | 16.0 | 3530{360} | 430 | ||
| 90 | 15 | 196.1 | {20.0} | 68.4 | 14.4 | 2824{288} | 16.2 | 3177{324} | 18.0 | 3530{360} | 475 | ||
| 100 | 15 | 176.5 | {18.0} | 76.0 | 16.0 | 2824{288} | 18.0 | 3177{324} | 20.0 | 3530{360} | 505 | ||
| 125 | 15 | 141.2 | {14.4} | 95.0 | 20.0 | 2824{288} | 22.5 | 3177{324} | 25.0 | 3530{360} | 615 | ||
| 150 | 15 | 117.7 | {12.0} | 114.0 | 24.0 | 2824{288} | 27.0 | 3177{324} | 30.0 | 3530{360} | 715 | ||
| 175 | 15 | 100.9 | {10.3} | 133.0 | 28.0 | 2824{288} | 31.5 | 3177{324} | 35.0 | 3530{360} | 815 | ||
| 200 | 15 | 88.3 | {9.0} | 152.0 | 32.0 | 2824{288} | 36.0 | 3177{324} | 40.0 | 3530{360} | 915 | ||
| SSWB | 35 | ||||||||||||
| 40 | 17.5 | 600.7 | {61.3} | 31.0 | 6.4 | 3844{392} | 7.2 | 4325{441} | 8.0 | 4805{490} | 335 | ||
| 45 | 17.5 | 533.9 | {54.5} | 34.8 | 7.2 | 3844{392} | 8.1 | 4325{441} | 9.0 | 4805{490} | 350 | ||
| 50 | 17.5 | 480.5 | {49.0} | 38.7 | 8.0 | 3844{392} | 9.0 | 4325{441} | 10.0 | 4805{490} | 385 | ||
| 55 | 17.5 | 436.8 | {44.6} | 42.6 | 8.8 | 3844{392} | 9.9 | 4325{441} | 11.0 | 4805{490} | 425 | ||
| 60 | 17.5 | 400.4 | {40.9} | 46.4 | 9.6 | 3844{392} | 10.8 | 4325{441} | 12.0 | 4805{490} | 450 | ||
| 65 | 17.5 | 369.6 | {37.7} | 50.3 | 10.4 | 3844{392} | 11.7 | 4325{441} | 13.0 | 4805{490} | 485 | ||
| 70 | 17.5 | 343.2 | {35.0} | 54.2 | 11.2 | 3844{392} | 12.6 | 4325{441} | 14.0 | 4805{490} | 505 | ||
| 75 | 17.5 | 320.4 | {32.7} | 58.1 | 12.0 | 3844{392} | 13.5 | 4325{441} | 15.0 | 4805{490} | 540 | ||
| 80 | 17.5 | 300.3 | {30.6} | 61.9 | 12.8 | 3844{392} | 14.4 | 4325{441} | 16.0 | 4805{490} | 575 | ||
| 90 | 17.5 | 267.0 | {27.2} | 69.7 | 14.4 | 3844{392} | 16.2 | 4325{441} | 18.0 | 4805{490} | 635 | ||
| 100 | 17.5 | 240.3 | {24.5} | 77.4 | 16.0 | 3844{392} | 18.0 | 4325{441} | 20.0 | 4805{490} | 695 | ||
| 125 | 17.5 | 192.2 | {19.6} | 96.8 | 20.0 | 3844{392} | 22.5 | 4325{441} | 25.0 | 4805{490} | 835 | ||
| 150 | 17.5 | 160.2 | {16.3} | 116.1 | 24.0 | 3844{392} | 27.0 | 4325{441} | 30.0 | 4805{490} | 975 | ||
| 175 | 17.5 | 137.3 | {14.0} | 135.4 | 28.0 | 3844{392} | 31.5 | 4325{441} | 35.0 | 4805{490} | 1,120 | ||
| 200 | 17.5 | 120.1 | {12.3} | 154.8 | 32.0 | 3844{392} | 36.0 | 4325{441} | 40.0 | 4805{490} | 1,250 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||

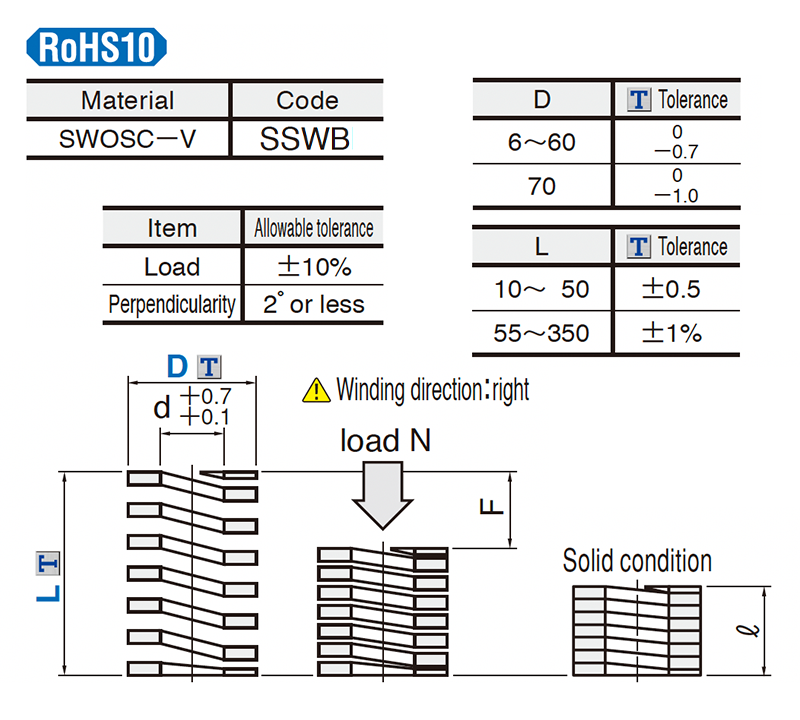

| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×16% | F＝L×18% | F＝L×20% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWB | 40 | ||||||||||||
| 40 | 20 | 784.5 | {80.1} | 31.0 | 6.4 | 5021{512} | 7.2 | 5649{576} | 8.0 | 6276{640} | 465 | ||
| 45 | 20 | 697.4 | {71.2} | 34.8 | 7.2 | 5021{512} | 8.1 | 5649{576} | 9.0 | 6276{640} | 500 | ||
| 50 | 20 | 627.6 | {64.0} | 38.7 | 8.0 | 5021{512} | 9.0 | 5649{576} | 10.0 | 6276{640} | 505 | ||
| 55 | 20 | 570.6 | {58.2} | 42.6 | 8.8 | 5021{512} | 9.9 | 5649{576} | 11.0 | 6276{640} | 550 | ||
| 60 | 20 | 523.0 | {53.4} | 46.4 | 9.6 | 5021{512} | 10.8 | 5649{576} | 12.0 | 6276{640} | 585 | ||
| 65 | 20 | 482.8 | {49.3} | 50.3 | 10.4 | 5021{512} | 11.7 | 5649{576} | 13.0 | 6276{640} | 620 | ||
| 70 | 20 | 448.3 | {45.7} | 54.2 | 11.2 | 5021{512} | 12.6 | 5649{576} | 14.0 | 6276{640} | 655 | ||
| 75 | 20 | 418.4 | {42.7} | 58.1 | 12.0 | 5021{512} | 13.5 | 5649{576} | 15.0 | 6276{640} | 695 | ||
| 80 | 20 | 392.3 | {40.0} | 61.9 | 12.8 | 5021{512} | 14.4 | 5649{576} | 16.0 | 6276{640} | 720 | ||
| 90 | 20 | 348.7 | {35.6} | 69.7 | 14.4 | 5021{512} | 16.2 | 5649{576} | 18.0 | 6276{640} | 795 | ||
| 100 | 20 | 313.8 | {32.0} | 77.4 | 16.0 | 5021{512} | 18.0 | 5649{576} | 20.0 | 6276{640} | 855 | ||
| 125 | 20 | 251.1 | {25.6} | 96.8 | 20.0 | 5021{512} | 22.5 | 5649{576} | 25.0 | 6276{640} | 1,030 | ||
| 150 | 20 | 209.2 | {21.3} | 116.1 | 24.0 | 5021{512} | 27.0 | 5649{576} | 30.0 | 6276{640} | 1,200 | ||
| 175 | 20 | 179.3 | {18.3} | 135.4 | 28.0 | 5021{512} | 31.5 | 5649{576} | 35.0 | 6276{640} | 1,380 | ||
| 200 | 20 | 156.9 | {16.0} | 154.8 | 32.0 | 5021{512} | 36.0 | 5649{576} | 40.0 | 6276{640} | 1,560 | ||
| 225 | 20 | 139.5 | {14.2} | 174.2 | 36.0 | 5021{512} | 40.5 | 5649{576} | 45.0 | 6276{640} | 1,740 | ||
| 250 | 20 | 125.5 | {12.8} | 193.5 | 40.0 | 5021{512} | 45.0 | 5649{576} | 50.0 | 6276{640} | 1,900 | ||
| 275 | 20 | 114.1 | {11.6} | 212.8 | 44.0 | 5021{512} | 49.5 | 5649{576} | 55.0 | 6276{640} | 2,200 | ||
| 300 | 20 | 104.6 | {10.7} | 232.2 | 48.0 | 5021{512} | 54.0 | 5649{576} | 60.0 | 6276{640} | 2,470 | ||
| SSWB | 50 | ||||||||||||
| 50 | 25 | 980.7 | {100.1} | 38.7 | 8.0 | 7845{800} | 9.0 | 8826{900} | 10.0 | 9807{1000} | 810 | ||
| 55 | 25 | 891.5 | {91.0} | 42.6 | 8.8 | 7845{800} | 9.9 | 8826{900} | 11.0 | 9807{1000} | 830 | ||
| 60 | 25 | 817.2 | {83.4} | 46.4 | 9.6 | 7845{800} | 10.8 | 8826{900} | 12.0 | 9807{1000} | 845 | ||
| 65 | 25 | 754.4 | {77.0} | 50.3 | 10.4 | 7845{800} | 11.7 | 8826{900} | 13.0 | 9807{1000} | 910 | ||
| 70 | 25 | 700.5 | {71.5} | 54.2 | 11.2 | 7845{800} | 12.6 | 8826{900} | 14.0 | 9807{1000} | 975 | ||
| 75 | 25 | 653.8 | {66.7} | 58.1 | 12.0 | 7845{800} | 13.5 | 8826{900} | 15.0 | 9807{1000} | 1,040 | ||
| 80 | 25 | 612.9 | {62.5} | 61.9 | 12.8 | 7845{800} | 14.4 | 8826{900} | 16.0 | 9807{1000} | 1,080 | ||
| 90 | 25 | 544.8 | {55.6} | 69.7 | 14.4 | 7845{800} | 16.2 | 8826{900} | 18.0 | 9807{1000} | 1,200 | ||
| 100 | 25 | 490.3 | {50.0} | 77.4 | 16.0 | 7845{800} | 18.0 | 8826{900} | 20.0 | 9807{1000} | 1,320 | ||
| 125 | 25 | 392.3 | {40.0} | 96.8 | 20.0 | 7845{800} | 22.5 | 8826{900} | 25.0 | 9807{1000} | 1,590 | ||
| 150 | 25 | 326.9 | {33.4} | 116.1 | 24.0 | 7845{800} | 27.0 | 8826{900} | 30.0 | 9807{1000} | 1,880 | ||
| 175 | 25 | 280.2 | {28.6} | 135.4 | 28.0 | 7845{800} | 31.5 | 8826{900} | 35.0 | 9807{1000} | 2,150 | ||
| 200 | 25 | 245.2 | {25.0} | 154.8 | 32.0 | 7845{800} | 36.0 | 8826{900} | 40.0 | 9807{1000} | 2,430 | ||
| 225 | 25 | 217.9 | {22.2} | 174.2 | 36.0 | 7845{800} | 40.5 | 8826{900} | 45.0 | 9807{1000} | 2,710 | ||
| 250 | 25 | 196.1 | {20.0} | 193.5 | 40.0 | 7845{800} | 45.0 | 8826{900} | 50.0 | 9807{1000} | 2,970 | ||
| 275 | 25 | 178.3 | {18.2} | 212.8 | 44.0 | 7845{800} | 49.5 | 8826{900} | 55.0 | 9807{1000} | 3,250 | ||
| 300 | 25 | 163.4 | {16.7} | 232.2 | 48.0 | 7845{800} | 54.0 | 8826{900} | 60.0 | 9807{1000} | 3,510 | ||
| 350 | 25 | 140.1 | {14.3} | 270.9 | 56.0 | 7845{800} | 63.0 | 8826{900} | 70.0 | 9807{1000} | 4,180 | ||
| SSWB | 60 | ||||||||||||
| 60 | 30 | 1176.8 | {120.1} | 46.4 | 9.6 | 11297{1152} | 10.8 | 12709{1296} | 12.0 | 14122{1440} | 1,410 | ||
| 70 | 30 | 1008.7 | {102.9} | 54.2 | 11.2 | 11297{1152} | 12.6 | 12709{1296} | 14.0 | 14122{1440} | 1,530 | ||
| 80 | 30 | 882.6 | {90.1} | 61.9 | 12.8 | 11297{1152} | 14.4 | 12709{1296} | 16.0 | 14122{1440} | 1,620 | ||
| 90 | 30 | 784.5 | {80.1} | 69.7 | 14.4 | 11297{1152} | 16.2 | 12709{1296} | 18.0 | 14122{1440} | 1,670 | ||
| 100 | 30 | 706.1 | {2.0} | 77.4 | 16.0 | 11297{1152} | 18.0 | 12709{1296} | 20.0 | 14122{1440} | 1,810 | ||
| 125 | 30 | 564.9 | {57.6} | 96.8 | 20.0 | 11297{1152} | 22.5 | 12709{1296} | 25.0 | 14122{1440} | 2,150 | ||
| 150 | 30 | 470.7 | {48.0} | 116.1 | 24.0 | 11297{1152} | 27.0 | 12709{1296} | 30.0 | 14122{1440} | 2,500 | ||
| 175 | 30 | 403.5 | {41.2} | 135.4 | 28.0 | 11297{1152} | 31.5 | 12709{1296} | 35.0 | 14122{1440} | 2,840 | ||
| 200 | 30 | 353.0 | {36.0} | 154.8 | 32.0 | 11297{1152} | 36.0 | 12709{1296} | 40.0 | 14122{1440} | 3,190 | ||
| 225 | 30 | 314.0 | {32.0} | 174.2 | 36.0 | 11297{1152} | 45.0 | 12709{1296} | 45.0 | 14122{1440} | 3,490 | ||
| 250 | 30 | 282.4 | {28.8} | 193.5 | 40.0 | 11297{1152} | 45.0 | 12709{1296} | 50.0 | 14122{1440} | 3,800 | ||
| 275 | 30 | 257.0 | {26.2} | 212.9 | 44.0 | 11297{1152} | 49.5 | 12709{1296} | 55.0 | 14122{1440} | 4,110 | ||
| 300 | 30 | 235.4 | {24.0} | 232.2 | 48.0 | 11297{1152} | 54.0 | 12709{1296} | 60.0 | 14122{1440} | 4,430 | ||
| 350 | 30 | 201.7 | {20.6} | 270.9 | 56.0 | 11297{1152} | 63.0 | 12709{1296} | 70.0 | 14122{1440} | 5,230 | ||
| SSWB | 70 | ||||||||||||
| 70 | 38.5 | 1219.0 | {124.3} | 54.2 | 11.2 | 13655{1392} | 12.6 | 15362{1567} | 14.0 | 17069{1740} | 2,390 | ||
| 80 | 38.5 | 1067.0 | {108.8} | 61.9 | 12.8 | 13655{1392} | 14.4 | 15362{1567} | 16.0 | 17069{1740} | 2,470 | ||
| 90 | 38.5 | 948.0 | {96.7} | 69.7 | 14.4 | 13655{1392} | 16.2 | 15362{1567} | 18.0 | 17069{1740} | 2,550 | ||
| 100 | 38.5 | 853.0 | {87.0} | 77.4 | 16.0 | 13655{1392} | 18.0 | 15362{1567} | 20.0 | 17069{1740} | 2,690 | ||
| 125 | 38.5 | 683.0 | {69.6} | 96.8 | 20.0 | 13655{1392} | 22.5 | 15362{1567} | 25.0 | 17069{1740} | 3,140 | ||
| 150 | 38.5 | 569.0 | {58.0} | 116.1 | 24.0 | 13655{1392} | 27.0 | 15362{1567} | 30.0 | 17069{1740} | 3,670 | ||
| 175 | 38.5 | 488.0 | {49.7} | 135.4 | 28.0 | 13655{1392} | 31.5 | 15362{1567} | 35.0 | 17069{1740} | 4,160 | ||
| 200 | 38.5 | 427.0 | {43.5} | 154.8 | 32.0 | 13655{1392} | 36.0 | 15362{1567} | 40.0 | 17069{1740} | 4,650 | ||
| 250 | 38.5 | 341.0 | {34.8} | 193.5 | 40.0 | 13655{1392} | 45.0 | 15362{1567} | 50.0 | 17069{1740} | 5,530 | ||
| 300 | 38.5 | 284.0 | {29.0} | 232.2 | 48.0 | 13655{1392} | 54.0 | 15362{1567} | 60.0 | 17069{1740} | 6,560 | ||
| 350 | 38.5 | 244.0 | {24.9} | 270.9 | 56.0 | 13655{1392} | 63.0 | 15362{1567} | 70.0 | 17069{1740} | 7,530 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
- Load calculation method:Load=Spring constant×Deflection
(kgf=N×0.101972)
- The solid height values are reference only
