Mold Parts

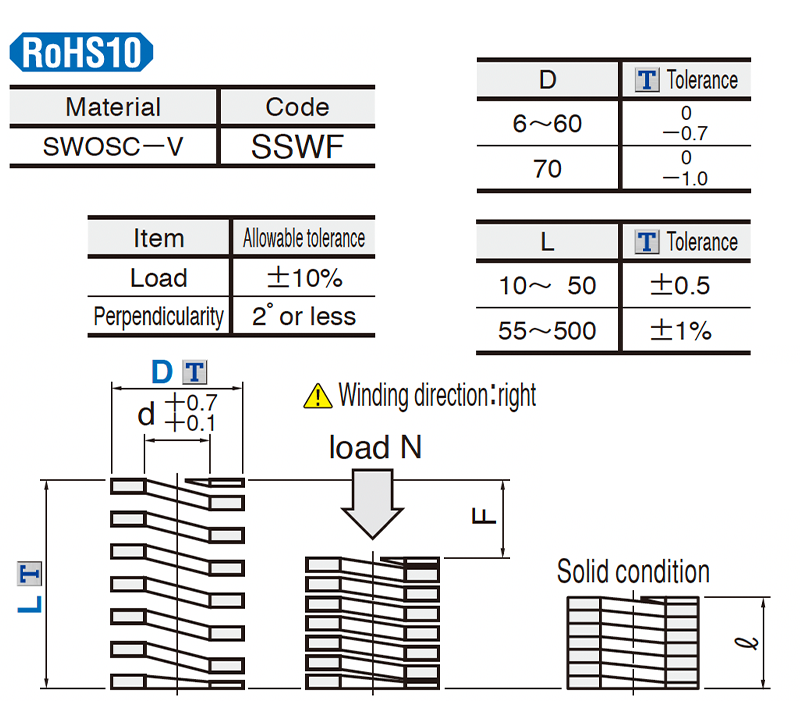

| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×40% | F＝L×45% | F＝L×50% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWF | 6 | ||||||||||||
| 15 | 3 | 7.9 | {0.80} | 6.8 | 6.0 | 47.1{4.8} | 6.8 | 53.0{5.4} | 7.5 | 58.8{6.0} | 90 | ||
| 20 | 3 | 5.9 | {0.60} | 9.0 | 8.0 | 47.1{4.8} | 9.0 | 53.0{5.4} | 10.0 | 58.8{6.0} | 90 | ||
| 25 | 3 | 4.7 | {0.48} | 11.3 | 10.0 | 47.1{4.8} | 11.3 | 53.0{5.4} | 12.5 | 58.8{6.0} | 110 | ||
| 30 | 3 | 3.9 | {0.40} | 13.5 | 12.0 | 47.1{4.8} | 13.5 | 53.0{5.4} | 15.0 | 58.8{6.0} | 110 | ||
| 35 | 3 | 3.4 | {0.34} | 15.8 | 14.0 | 47.1{4.8} | 15.8 | 53.0{5.4} | 17.5 | 58.8{6.0} | 110 | ||
| 40 | 3 | 3.0 | {0.30} | 18.0 | 16.0 | 47.1{4.8} | 18.0 | 53.0{5.4} | 20.0 | 58.8{6.0} | 120 | ||
| SSWF | 8 | ||||||||||||
| 10 | 4 | 15.8 | {1.61} | 4.5 | 4.0 | 62.8{6.4} | 4.5 | 70.6{7.2} | 5.0 | 78.5{8.0} | 80 | ||
| 15 | 4 | 10.5 | {1.07} | 6.8 | 6.0 | 62.8{6.4} | 6.8 | 70.6{7.2} | 7.5 | 78.5{8.0} | 75 | ||
| 20 | 4 | 7.9 | {0.81} | 9.0 | 8.0 | 62.8{6.4} | 9.0 | 70.6{7.2} | 10.0 | 78.5{8.0} | 85 | ||
| 25 | 4 | 6.3 | {0.64} | 11.3 | 10.0 | 62.8{6.4} | 11.3 | 70.6{7.2} | 12.5 | 78.5{8.0} | 100 | ||
| 30 | 4 | 5.3 | {0.54} | 13.5 | 12.0 | 62.8{6.4} | 13.5 | 70.6{7.2} | 15.0 | 78.5{8.0} | 100 | ||
| 35 | 4 | 4.5 | {0.46} | 15.8 | 14.0 | 62.8{6.4} | 15.8 | 70.6{7.2} | 17.5 | 78.5{8.0} | 110 | ||
| 40 | 4 | 4.0 | {0.40} | 18.0 | 16.0 | 62.8{6.4} | 18.0 | 70.6{7.2} | 20.0 | 78.5{8.0} | 120 | ||
| 45 | 4 | 3.5 | {0.36} | 20.2 | 18.0 | 62.8{6.4} | 20.2 | 70.6{7.2} | 22.5 | 78.5{8.0} | 130 | ||
| 50 | 4 | 3.2 | {0.32} | 22.5 | 20.0 | 62.8{6.4} | 22.5 | 70.6{7.2} | 25.0 | 78.5{8.0} | 140 | ||
| 55 | 4 | 2.9 | {0.29} | 24.8 | 22.0 | 62.8{6.4} | 24.8 | 70.6{7.2} | 27.5 | 78.5{8.0} | 145 | ||
| 60 | 4 | 2.6 | {0.27} | 27.0 | 24.0 | 62.8{6.4} | 27.0 | 70.6{7.2} | 30.0 | 78.5{8.0} | 155 | ||
| 65 | 4 | 2.4 | {0.25} | 29.2 | 26.0 | 62.8{6.4} | 29.2 | 70.6{7.2} | 32.5 | 78.5{8.0} | 165 | ||
| 70 | 4 | 2.3 | {0.23} | 31.5 | 28.0 | 62.8{6.4} | 31.5 | 70.6{7.2} | 35.0 | 78.5{8.0} | 175 | ||
| 75 | 4 | 2.1 | {0.21} | 33.8 | 30.0 | 62.8{6.4} | 33.8 | 70.6{7.2} | 37.5 | 78.5{8.0} | 185 | ||
| 80 | 4 | 2.0 | {0.20} | 36.0 | 32.0 | 62.8{6.4} | 36.0 | 70.6{7.2} | 40.0 | 78.5{8.0} | 195 | ||
| SSWF | 10 | ||||||||||||
| 10 | 5 | 19.6 | {2.00} | 4.5 | 4.0 | 78.5{8.0} | 4.5 | 88.3{9.0} | 5.0 | 98.1{10.0} | 85 | ||
| 15 | 5 | 13.1 | {1.34} | 6.8 | 6.0 | 78.5{8.0} | 6.8 | 88.3{9.0} | 7.5 | 98.1{10.0} | 80 | ||
| 20 | 5 | 9.8 | {1.00} | 9.0 | 8.0 | 78.5{8.0} | 9.0 | 88.3{9.0} | 10.0 | 98.1{10.0} | 85 | ||
| 25 | 5 | 7.9 | {0.80} | 11.3 | 10.0 | 78.5{8.0} | 11.3 | 88.3{9.0} | 12.5 | 98.1{10.0} | 85 | ||
| 30 | 5 | 6.5 | {0.67} | 13.5 | 12.0 | 78.5{8.0} | 13.5 | 88.3{9.0} | 15.0 | 98.1{10.0} | 85 | ||
| 35 | 5 | 5.6 | {0.57} | 15.8 | 14.0 | 78.5{8.0} | 15.8 | 88.3{9.0} | 17.5 | 98.1{10.0} | 85 | ||
| 40 | 5 | 4.9 | {0.50} | 18.0 | 16.0 | 78.5{8.0} | 18.0 | 88.3{9.0} | 20.0 | 98.1{10.0} | 90 | ||
| 45 | 5 | 4.4 | {0.45} | 20.2 | 18.0 | 78.5{8.0} | 20.2 | 88.3{9.0} | 22.5 | 98.1{10.0} | 100 | ||
| 50 | 5 | 3.9 | {0.40} | 22.5 | 20.0 | 78.5{8.0} | 22.5 | 88.3{9.0} | 25.0 | 98.1{10.0} | 110 | ||
| 55 | 5 | 3.6 | {0.36} | 24.8 | 22.0 | 78.5{8.0} | 24.8 | 88.3{9.0} | 27.5 | 98.1{10.0} | 120 | ||
| 60 | 5 | 3.3 | {0.33} | 27.0 | 24.0 | 78.5{8.0} | 27.0 | 88.3{9.0} | 30.0 | 98.1{10.0} | 130 | ||
| 65 | 5 | 3.0 | {0.31} | 29.2 | 26.0 | 78.5{8.0} | 29.2 | 88.3{9.0} | 32.5 | 98.1{10.0} | 140 | ||
| 70 | 5 | 2.8 | {0.29} | 31.5 | 28.0 | 78.5{8.0} | 31.5 | 88.3{9.0} | 35.0 | 98.1{10.0} | 140 | ||
| 75 | 5 | 2.6 | {0.27} | 33.8 | 30.0 | 78.5{8.0} | 33.8 | 88.3{9.0} | 37.5 | 98.1{10.0} | 155 | ||
| 80 | 5 | 2.5 | {0.25} | 36.0 | 32.0 | 78.5{8.0} | 36.0 | 88.3{9.0} | 40.0 | 98.1{10.0} | 170 | ||
| 90 | 5 | 2.2 | {0.22} | 40.5 | 36.0 | 78.5{8.0} | 40.5 | 88.3{9.0} | 45.0 | 98.1{10.0} | 190 | ||
| SSWF | 12 | ||||||||||||
| 15 | 6 | 18.2 | {1.85} | 6.8 | 6.0 | 109.8{11.2} | 6.8 | 123.6{12.6} | 7.5 | 137.3{14.0} | 90 | ||
| 20 | 6 | 13.6 | {1.39} | 9.0 | 8.0 | 109.8{11.2} | 9.0 | 123.6{12.6} | 10.0 | 137.3{14.0} | 90 | ||
| 25 | 6 | 10.9 | {1.11} | 11.3 | 10.0 | 109.8{11.2} | 11.3 | 123.6{12.6} | 12.5 | 137.3{14.0} | 100 | ||
| 30 | 6 | 9.1 | {0.93} | 13.5 | 12.0 | 109.8{11.2} | 13.5 | 123.6{12.6} | 15.0 | 137.3{14.0} | 110 | ||
| 35 | 6 | 7.8 | {0.79} | 15.8 | 14.0 | 109.8{11.2} | 15.8 | 123.6{12.6} | 17.5 | 137.3{14.0} | 110 | ||
| 40 | 6 | 6.8 | {0.70} | 18.0 | 16.0 | 109.8{11.2} | 18.0 | 123.6{12.6} | 20.0 | 137.3{14.0} | 120 | ||
| 45 | 6 | 6.1 | {0.62} | 20.2 | 18.0 | 109.8{11.2} | 20.2 | 123.6{12.6} | 22.5 | 137.3{14.0} | 130 | ||
| 50 | 6 | 5.5 | {0.56} | 22.5 | 20.0 | 109.8{11.2} | 22.5 | 123.6{12.6} | 25.0 | 137.3{14.0} | 140 | ||
| 55 | 6 | 5.0 | {0.51} | 24.8 | 22.0 | 109.8{11.2} | 24.8 | 123.6{12.6} | 27.5 | 137.3{14.0} | 145 | ||
| 60 | 6 | 4.5 | {0.46} | 27.0 | 24.0 | 109.8{11.2} | 27.0 | 123.6{12.6} | 30.0 | 137.3{14.0} | 155 | ||
| 65 | 6 | 4.2 | {0.43} | 29.2 | 26.0 | 109.8{11.2} | 29.2 | 123.6{12.6} | 32.5 | 137.3{14.0} | 160 | ||
| 70 | 6 | 3.9 | {0.40} | 31.5 | 28.0 | 109.8{11.2} | 31.5 | 123.6{12.6} | 35.0 | 137.3{14.0} | 170 | ||
| 75 | 6 | 3.6 | {0.37} | 33.8 | 30.0 | 109.8{11.2} | 33.8 | 123.6{12.6} | 37.5 | 137.3{14.0} | 180 | ||
| 80 | 6 | 3.4 | {0.35} | 36.0 | 32.0 | 109.8{11.2} | 36.0 | 123.6{12.6} | 40.0 | 137.3{14.0} | 195 | ||
| 90 | 6 | 3.0 | {0.31} | 40.5 | 36.0 | 109.8{11.2} | 40.5 | 123.6{12.6} | 45.0 | 137.3{14.0} | 215 | ||
| SSWF | 14 | ||||||||||||
| 20 | 7 | 17.5 | {1.79} | 9.0 | 8.0 | 141.2{14.4} | 9.0 | 158.9{16.2} | 10.0 | 176.5{18.0} | 130 | ||
| 25 | 7 | 14.0 | {1.43} | 11.3 | 10.0 | 141.2{14.4} | 11.3 | 158.9{16.2} | 12.5 | 176.5{18.0} | 130 | ||
| 30 | 7 | 11.7 | {1.19} | 13.5 | 12.0 | 141.2{14.4} | 13.5 | 158.9{16.2} | 15.0 | 176.5{18.0} | 140 | ||
| 35 | 7 | 10.0 | {1.02} | 15.8 | 14.0 | 141.2{14.4} | 15.8 | 158.9{16.2} | 17.5 | 176.5{18.0} | 145 | ||
| 40 | 7 | 8.8 | {0.89} | 18.0 | 16.0 | 141.2{14.4} | 18.0 | 158.9{16.2} | 20.0 | 176.5{18.0} | 155 | ||
| 45 | 7 | 7.8 | {0.79} | 20.2 | 18.0 | 141.2{14.4} | 20.2 | 158.9{16.2} | 22.5 | 176.5{18.0} | 160 | ||
| 50 | 7 | 7.0 | {0.71} | 22.5 | 20.0 | 141.2{14.4} | 22.5 | 158.9{16.2} | 25.0 | 176.5{18.0} | 170 | ||
| 55 | 7 | 6.4 | {0.65} | 24.8 | 22.0 | 141.2{14.4} | 24.8 | 158.9{16.2} | 27.5 | 176.5{18.0} | 180 | ||
| 60 | 7 | 5.8 | {0.60} | 27.0 | 24.0 | 141.2{14.4} | 27.0 | 158.9{16.2} | 30.0 | 176.5{18.0} | 185 | ||
| 65 | 7 | 5.4 | {0.55} | 29.2 | 26.0 | 141.2{14.4} | 29.2 | 158.9{16.2} | 32.5 | 176.5{18.0} | 195 | ||
| 70 | 7 | 5.0 | {0.51} | 31.5 | 28.0 | 141.2{14.4} | 31.5 | 158.9{16.2} | 35.0 | 176.5{18.0} | 195 | ||
| 75 | 7 | 4.7 | {0.48} | 33.8 | 30.0 | 141.2{14.4} | 33.8 | 158.9{16.2} | 37.5 | 176.5{18.0} | 205 | ||
| 80 | 7 | 4.4 | {0.45} | 36.0 | 32.0 | 141.2{14.4} | 36.0 | 158.9{16.2} | 40.0 | 176.5{18.0} | 215 | ||
| 90 | 7 | 3.9 | {0.40} | 40.5 | 36.0 | 141.2{14.4} | 40.5 | 158.9{16.2} | 45.0 | 176.5{18.0} | 235 | ||
| 100 | 7 | 3.5 | {0.36} | 45.0 | 40.0 | 141.2{14.4} | 45.0 | 158.9{16.2} | 50.0 | 176.5{18.0} | 250 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×40% | F＝L×45% | F＝L×50% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWF | 16 | ||||||||||||
| 20 | 8 | 20.8 | {2.13} | 9.0 | 8.0 | 164.8{16.8} | 9.0 | 185.3{18.9} | 10.0 | 205.9{21.0} | 140 | ||
| 25 | 8 | 16.7 | {1.70} | 11.3 | 10.0 | 164.8{16.8} | 11.3 | 185.3{18.9} | 12.5 | 205.9{21.0} | 140 | ||
| 30 | 8 | 13.9 | {1.42} | 13.5 | 12.0 | 164.8{16.8} | 13.5 | 185.3{18.9} | 15.0 | 205.9{21.0} | 145 | ||
| 35 | 8 | 11.9 | {1.22} | 15.8 | 14.0 | 164.8{16.8} | 15.8 | 185.3{18.9} | 17.5 | 205.9{21.0} | 155 | ||
| 40 | 8 | 10.4 | {1.06} | 18.0 | 16.0 | 164.8{16.8} | 18.0 | 185.3{18.9} | 20.0 | 205.9{21.0} | 160 | ||
| 45 | 8 | 9.3 | {0.95} | 20.2 | 18.0 | 164.8{16.8} | 20.2 | 185.3{18.9} | 22.5 | 205.9{21.0} | 170 | ||
| 50 | 8 | 8.3 | {0.85} | 22.5 | 20.0 | 164.8{16.8} | 22.5 | 185.3{18.9} | 25.0 | 205.9{21.0} | 180 | ||
| 55 | 8 | 7.6 | {0.77} | 24.8 | 22.0 | 164.8{16.8} | 24.8 | 185.3{18.9} | 27.5 | 205.9{21.0} | 195 | ||
| 60 | 8 | 6.9 | {0.71} | 27.0 | 24.0 | 164.8{16.8} | 27.0 | 185.3{18.9} | 30.0 | 205.9{21.0} | 205 | ||
| 65 | 8 | 6.4 | {0.65} | 29.2 | 26.0 | 164.8{16.8} | 29.2 | 185.3{18.9} | 32.5 | 205.9{21.0} | 215 | ||
| 70 | 8 | 6.0 | {0.61} | 31.5 | 28.0 | 164.8{16.8} | 31.5 | 185.3{18.9} | 35.0 | 205.9{21.0} | 225 | ||
| 75 | 8 | 5.6 | {0.57} | 33.8 | 30.0 | 164.8{16.8} | 33.8 | 185.3{18.9} | 37.5 | 205.9{21.0} | 235 | ||
| 80 | 8 | 5.2 | {0.53} | 36.0 | 32.0 | 164.8{16.8} | 36.0 | 185.3{18.9} | 40.0 | 205.9{21.0} | 250 | ||
| 90 | 8 | 4.6 | {0.47} | 40.5 | 36.0 | 164.8{16.8} | 40.5 | 185.3{18.9} | 45.0 | 205.9{21.0} | 270 | ||
| 100 | 8 | 4.2 | {0.43} | 45.0 | 40.0 | 164.8{16.8} | 45.0 | 185.3{18.9} | 50.0 | 205.9{21.0} | 295 | ||
| 125 | 8 | 3.3 | {0.34} | 56.2 | 50.0 | 164.8{16.8} | 56.2 | 185.3{18.9} | 62.5 | 205.9{21.0} | 315 | ||
| SSWF | 18 | ||||||||||||
| 20 | 9 | 25.7 | {2.63} | 9.0 | 8.0 | 204.0{20.8} | 9.0 | 229.5{23.4} | 10.0 | 255.0{26.0} | 140 | ||
| 25 | 9 | 20.6 | {2.10} | 11.3 | 10.0 | 204.0{20.8} | 11.3 | 229.5{23.4} | 12.5 | 255.0{26.0} | 140 | ||
| 30 | 9 | 17.1 | {1.75} | 13.5 | 12.0 | 204.0{20.8} | 13.5 | 229.5{23.4} | 15.0 | 255.0{26.0} | 145 | ||
| 35 | 9 | 14.7 | {1.50} | 15.8 | 14.0 | 204.0{20.8} | 15.8 | 229.5{23.4} | 17.5 | 255.0{26.0} | 155 | ||
| 40 | 9 | 12.9 | {1.31} | 18.0 | 16.0 | 204.0{20.8} | 18.0 | 229.5{23.4} | 20.0 | 255.0{26.0} | 160 | ||
| 45 | 9 | 11.4 | {1.17} | 20.2 | 18.0 | 204.0{20.8} | 20.2 | 229.5{23.4} | 22.5 | 255.0{26.0} | 170 | ||
| 50 | 9 | 10.3 | {1.05} | 22.5 | 20.0 | 204.0{20.8} | 22.5 | 229.5{23.4} | 25.0 | 255.0{26.0} | 185 | ||
| 55 | 9 | 9.4 | {0.95} | 24.8 | 22.0 | 204.0{20.8} | 24.8 | 229.5{23.4} | 27.5 | 255.0{26.0} | 195 | ||
| 60 | 9 | 8.6 | {0.88} | 27.0 | 24.0 | 204.0{20.8} | 27.0 | 229.5{23.4} | 30.0 | 255.0{26.0} | 205 | ||
| 65 | 9 | 7.9 | {0.81} | 29.2 | 26.0 | 204.0{20.8} | 29.2 | 229.5{23.4} | 32.5 | 255.0{26.0} | 215 | ||
| 70 | 9 | 7.4 | {0.75} | 31.5 | 28.0 | 204.0{20.8} | 31.5 | 229.5{23.4} | 35.0 | 255.0{26.0} | 225 | ||
| 75 | 9 | 6.9 | {0.70} | 33.8 | 30.0 | 204.0{20.8} | 33.8 | 229.5{23.4} | 37.5 | 255.0{26.0} | 235 | ||
| 80 | 9 | 6.4 | {0.66} | 36.0 | 32.0 | 204.0{20.8} | 36.0 | 229.5{23.4} | 40.0 | 255.0{26.0} | 250 | ||
| 90 | 9 | 5.7 | {0.58} | 40.5 | 36.0 | 204.0{20.8} | 40.5 | 229.5{23.4} | 45.0 | 255.0{26.0} | 275 | ||
| 100 | 9 | 5.1 | {0.53} | 45.0 | 40.0 | 204.0{20.8} | 45.0 | 229.5{23.4} | 50.0 | 255.0{26.0} | 305 | ||
| 125 | 9 | 4.1 | {0.42} | 56.2 | 50.0 | 204.0{20.8} | 56.2 | 229.5{23.4} | 62.5 | 255.0{26.0} | 325 | ||
| SSWF | 20 | ||||||||||||
| 20 | 11 | 31.9 | {3.25} | 9.0 | 8.0 | 251.1{25.6} | 9.0 | 282.4{28.8} | 10.0 | 313.8{32.0} | 140 | ||
| 25 | 11 | 25.5 | {2.60} | 11.3 | 10.0 | 251.1{25.6} | 11.3 | 282.4{28.8} | 12.5 | 313.8{32.0} | 140 | ||
| 30 | 11 | 21.2 | {2.17} | 13.5 | 12.0 | 251.1{25.6} | 13.5 | 282.4{28.8} | 15.0 | 313.8{32.0} | 145 | ||
| 35 | 11 | 18.2 | {1.86} | 15.8 | 14.0 | 251.1{25.6} | 15.8 | 282.4{28.8} | 17.5 | 313.8{32.0} | 155 | ||
| 40 | 11 | 15.9 | {1.63} | 18.0 | 16.0 | 251.1{25.6} | 18.0 | 282.4{28.8} | 20.0 | 313.8{32.0} | 160 | ||
| 45 | 11 | 14.2 | {1.45} | 20.2 | 18.0 | 251.1{25.6} | 20.2 | 282.4{28.8} | 22.5 | 313.8{32.0} | 180 | ||
| 50 | 11 | 12.8 | {1.30} | 22.5 | 20.0 | 251.1{25.6} | 22.5 | 282.4{28.8} | 25.0 | 313.8{32.0} | 185 | ||
| 55 | 11 | 11.6 | {1.18} | 24.8 | 22.0 | 251.1{25.6} | 24.8 | 282.4{28.8} | 27.5 | 313.8{32.0} | 195 | ||
| 60 | 11 | 10.6 | {1.08} | 27.0 | 24.0 | 251.1{25.6} | 27.0 | 282.4{28.8} | 30.0 | 313.8{32.0} | 205 | ||
| 65 | 11 | 9.8 | {1.00} | 29.2 | 26.0 | 251.1{25.6} | 29.2 | 282.4{28.8} | 32.5 | 313.8{32.0} | 215 | ||
| 70 | 11 | 9.1 | {0.93} | 31.5 | 28.0 | 251.1{25.6} | 31.5 | 282.4{28.8} | 35.0 | 313.8{32.0} | 225 | ||
| 75 | 11 | 8.5 | {0.87} | 33.8 | 30.0 | 251.1{25.6} | 33.8 | 282.4{28.8} | 37.5 | 313.8{32.0} | 235 | ||
| 80 | 11 | 8.0 | {0.81} | 36.0 | 32.0 | 251.1{25.6} | 36.0 | 282.4{28.8} | 40.0 | 313.8{32.0} | 240 | ||
| 90 | 11 | 7.1 | {0.72} | 40.5 | 36.0 | 251.1{25.6} | 40.5 | 282.4{28.8} | 45.0 | 313.8{32.0} | 260 | ||
| 100 | 11 | 6.4 | {0.65} | 45.0 | 40.0 | 251.1{25.6} | 45.0 | 282.4{28.8} | 50.0 | 313.8{32.0} | 275 | ||
| 125 | 11 | 5.1 | {0.52} | 56.2 | 50.0 | 251.1{25.6} | 56.2 | 282.4{28.8} | 62.5 | 313.8{32.0} | 295 | ||
| 150 | 11 | 4.3 | {0.43} | 67.5 | 60.0 | 251.1{25.6} | 67.5 | 282.4{28.8} | 75.0 | 313.8{32.0} | 335 | ||
| SSWF | 22 | ||||||||||||
| 25 | 11 | 31.4 | {3.20} | 11.3 | 10.0 | 313.8{32.0} | 11.3 | 353.0{36.0} | 12.5 | 392.3{40.0} | 140 | ||
| 30 | 11 | 26.2 | {2.67} | 13.5 | 12.0 | 313.8{32.0} | 13.5 | 353.0{36.0} | 15.0 | 392.3{40.0} | 145 | ||
| 35 | 11 | 22.4 | {2.29} | 15.8 | 14.0 | 313.8{32.0} | 15.8 | 353.0{36.0} | 17.5 | 392.3{40.0} | 155 | ||
| 40 | 11 | 19.6 | {2.00} | 18.0 | 16.0 | 313.8{32.0} | 18.0 | 353.0{36.0} | 20.0 | 392.3{40.0} | 160 | ||
| 45 | 11 | 17.4 | {1.78} | 20.2 | 18.0 | 313.8{32.0} | 20.2 | 353.0{36.0} | 22.5 | 392.3{40.0} | 180 | ||
| 50 | 11 | 15.7 | {1.60} | 22.5 | 20.0 | 313.8{32.0} | 22.5 | 353.0{36.0} | 25.0 | 392.3{40.0} | 185 | ||
| 55 | 11 | 14.3 | {1.46} | 24.8 | 22.0 | 313.8{32.0} | 24.8 | 353.0{36.0} | 27.5 | 392.3{40.0} | 195 | ||
| 60 | 11 | 13.1 | {1.34} | 27.0 | 24.0 | 313.8{32.0} | 27.0 | 353.0{36.0} | 30.0 | 392.3{40.0} | 205 | ||
| 65 | 11 | 12.1 | {1.23} | 29.2 | 26.0 | 313.8{32.0} | 29.2 | 353.0{36.0} | 32.5 | 392.3{40.0} | 215 | ||
| 70 | 11 | 11.2 | {1.14} | 31.5 | 28.0 | 313.8{32.0} | 31.5 | 353.0{36.0} | 35.0 | 392.3{40.0} | 225 | ||
| 75 | 11 | 10.5 | {1.07} | 33.8 | 30.0 | 313.8{32.0} | 33.8 | 353.0{36.0} | 37.5 | 392.3{40.0} | 235 | ||
| 80 | 11 | 9.8 | {1.00} | 36.0 | 32.0 | 313.8{32.0} | 36.0 | 353.0{36.0} | 40.0 | 392.3{40.0} | 240 | ||
| 90 | 11 | 8.7 | {0.89} | 40.5 | 36.0 | 313.8{32.0} | 40.5 | 353.0{36.0} | 45.0 | 392.3{40.0} | 270 | ||
| 100 | 11 | 7.9 | {0.80} | 45.0 | 40.0 | 313.8{32.0} | 45.0 | 353.0{36.0} | 50.0 | 392.3{40.0} | 275 | ||
| 125 | 11 | 6.3 | {0.64} | 56.2 | 50.0 | 313.8{32.0} | 56.2 | 353.0{36.0} | 62.5 | 392.3{40.0} | 315 | ||
| 150 | 11 | 5.2 | {0.53} | 67.5 | 60.0 | 313.8{32.0} | 67.5 | 353.0{36.0} | 75.0 | 392.3{40.0} | 340 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×40% | F＝L×45% | F＝L×50% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWF | 25 | ||||||||||||
| 25 | 13.5 | 39.2 | {4.00} | 11.3 | 10.011.312.5145 | 392.3{40.0} | 441.3{45.0} | 490.3{50.0} | |||||
| 30 | 13.5 | 32.7 | {3.33} | 13.5 | 12.0 | 392.3{40.0} | 13.5 | 441.3{45.0} | 15.0 | 490.3{50.0} | 155 | ||
| 35 | 13.5 | 28.0 | {2.86} | 15.8 | 14.0 | 392.3{40.0} | 15.8 | 441.3{45.0} | 17.5 | 490.3{50.0} | 160 | ||
| 40 | 13.5 | 24.5 | {2.50} | 18.0 | 16.0 | 392.3{40.0} | 18.0 | 441.3{45.0} | 20.0 | 490.3{50.0} | 170 | ||
| 45 | 13.5 | 21.8 | {2.22} | 20.2 | 18.0 | 392.3{40.0} | 20.2 | 441.3{45.0} | 22.5 | 490.3{50.0} | 180 | ||
| 50 | 13.5 | 19.6 | {2.00} | 22.5 | 20.0 | 392.3{40.0} | 22.5 | 441.3{45.0} | 25.0 | 490.3{50.0} | 185 | ||
| 55 | 13.5 | 17.8 | {1.82} | 24.8 | 22.0 | 392.3{40.0} | 24.8 | 441.3{45.0} | 27.5 | 490.3{50.0} | 195 | ||
| 60 | 13.5 | 16.3 | {1.67} | 27.0 | 24.0 | 392.3{40.0} | 27.0 | 441.3{45.0} | 30.0 | 490.3{50.0} | 205 | ||
| 65 | 13.5 | 15.1 | {1.54} | 29.2 | 26.0 | 392.3{40.0} | 29.2 | 441.3{45.0} | 32.5 | 490.3{50.0} | 225 | ||
| 70 | 13.5 | 14.0 | {1.43} | 31.5 | 28.0 | 392.3{40.0} | 31.5 | 441.3{45.0} | 35.0 | 490.3{50.0} | 235 | ||
| 75 | 13.5 | 13.1 | {1.33} | 33.8 | 30.0 | 392.3{40.0} | 33.8 | 441.3{45.0} | 37.5 | 490.3{50.0} | 240 | ||
| 80 | 13.5 | 12.3 | {1.25} | 36.0 | 32.0 | 392.3{40.0} | 36.0 | 441.3{45.0} | 40.0 | 490.3{50.0} | 250 | ||
| 90 | 13.5 | 10.9 | {1.11} | 40.5 | 36.0 | 392.3{40.0} | 40.5 | 441.3{45.0} | 45.0 | 490.3{50.0} | 270 | ||
| 100 | 13.5 | 9.8 | {1.00} | 45.0 | 40.0 | 392.3{40.0} | 45.0 | 441.3{45.0} | 50.0 | 490.3{50.0} | 285 | ||
| 125 | 13.5 | 7.8 | {0.80} | 56.2 | 50.0 | 392.3{40.0} | 56.2 | 441.3{45.0} | 62.5 | 490.3{50.0} | 335 | ||
| 150 | 13.5 | 6.5 | {0.67} | 67.5 | 60.0 | 392.3{40.0} | 67.5 | 441.3{45.0} | 75.0 | 490.3{50.0} | 360 | ||
| 175 | 13.5 | 5.6 | {0.57} | 78.8 | 70.0 | 392.3{40.0} | 78.8 | 441.3{45.0} | 87.5 | 490.3{50.0} | 405 | ||
| 200 | 13.5 | 4.9 | {0.50} | 90.0 | 80.0 | 392.3{40.0} | 90.0 | 441.3{45.0} | 100.0 | 490.3{50.0} | 445 | ||
| SSWF | 27 | ||||||||||||
| 25 | 13.5 | 47.1 | {4.80} | 11.3 | 10.0 | 470.7{48.0} | 11.3 | 529.6{54.0} | 12.5 | 588.4{60.0} | 145 | ||
| 30 | 13.5 | 39.2 | {4.00} | 13.5 | 12.0 | 470.7{48.0} | 13.5 | 529.6{54.0} | 15.0 | 588.4{60.0} | 155 | ||
| 35 | 13.5 | 33.6 | {3.43} | 15.8 | 14.0 | 470.7{48.0} | 15.8 | 529.6{54.0} | 17.5 | 588.4{60.0} | 160 | ||
| 40 | 13.5 | 29.4 | {3.00} | 18.0 | 16.0 | 470.7{48.0} | 18.0 | 529.6{54.0} | 20.0 | 588.4{60.0} | 170 | ||
| 45 | 13.5 | 26.1 | {2.67} | 20.2 | 18.0 | 470.7{48.0} | 20.2 | 529.6{54.0} | 22.5 | 588.4{60.0} | 180 | ||
| 50 | 13.5 | 23.5 | {2.40} | 22.5 | 20.0 | 470.7{48.0} | 22.5 | 529.6{54.0} | 25.0 | 588.4{60.0} | 185 | ||
| 55 | 13.5 | 21.4 | {2.18} | 24.8 | 22.0 | 470.7{48.0} | 24.8 | 529.6{54.0} | 27.5 | 588.4{60.0} | 195 | ||
| 60 | 13.5 | 19.6 | {2.00} | 27.0 | 24.0 | 470.7{48.0} | 27.0 | 529.6{54.0} | 30.0 | 588.4{60.0} | 205 | ||
| 65 | 13.5 | 18.1 | {1.85} | 29.2 | 26.0 | 470.7{48.0} | 29.2 | 529.6{54.0} | 32.5 | 588.4{60.0} | 225 | ||
| 70 | 13.5 | 16.8 | {1.72} | 31.5 | 28.0 | 470.7{48.0} | 31.5 | 529.6{54.0} | 35.0 | 588.4{60.0} | 235 | ||
| 75 | 13.5 | 15.7 | {1.60} | 33.8 | 30.0 | 470.7{48.0} | 33.8 | 529.6{54.0} | 37.5 | 588.4{60.0} | 240 | ||
| 80 | 13.5 | 14.7 | {1.50} | 36.0 | 32.0 | 470.7{48.0} | 36.0 | 529.6{54.0} | 40.0 | 588.4{60.0} | 250 | ||
| 90 | 13.5 | 13.1 | {1.33} | 40.5 | 36.0 | 470.7{48.0} | 40.5 | 529.6{54.0} | 45.0 | 588.4{60.0} | 270 | ||
| 100 | 13.5 | 11.8 | {1.20}45.0 | 40.0 | 45.0 | 470.7{48.0} | 50.0 | 529.6{54.0} | 285 | 588.4{60.0} | |||
| 125 | 13.5 | 9.4 | {0.96} | 56.2 | 50.0 | 470.7{48.0} | 56.2 | 529.6{54.0} | 62.5 | 588.4{60.0} | 335 | ||
| 150 | 13.5 | 7.8 | {0.80} | 67.5 | 60.0 | 470.7{48.0} | 67.5 | 529.6{54.0} | 75.0 | 588.4{60.0} | 375 | ||
| 175 | 13.5 | 6.7 | {0.69} | 78.8 | 70.0 | 470.7{48.0} | 78.8 | 529.6{54.0} | 87.5 | 588.4{60.0} | 430 | ||
| 200 | 13.5 | 5.9 | {0.60} | 90.0 | 80.0 | 470.7{48.0} | 90.0 | 529.6{54.0} | 100.0 | 588.4{60.0} | 465 | ||
| SSWF | 30 | ||||||||||||
| 25 | 16 | 56.9 | {5.80} | 11.3 | 10.0 | 564.9{57.6} | 11.3 | 635.5{64.8} | 12.5 | 706.1{72.0} | 145 | ||
| 30 | 16 | 47.4 | {4.84} | 13.5 | 12.0 | 564.9{57.6} | 13.5 | 635.5{64.8} | 15.0 | 706.1{72.0} | 155 | ||
| 35 | 16 | 40.6 | {4.15} | 15.8 | 14.0 | 564.9{57.6} | 15.8 | 635.5{64.8} | 17.5 | 706.1{72.0} | 160 | ||
| 40 | 16 | 35.5 | {3.63} | 18.0 | 16.0 | 564.9{57.6} | 18.0 | 635.5{64.8} | 20.0 | 706.1{72.0} | 170 | ||
| 45 | 16 | 31.6 | {3.22} | 20.2 | 18.0 | 564.9{57.6} | 20.2 | 635.5{64.8} | 22.5 | 706.1{72.0} | 185 | ||
| 50 | 16 | 28.4 | {2.90} | 22.5 | 20.0 | 564.9{57.6} | 22.5 | 635.5{64.8} | 25.0 | 706.1{72.0} | 195 | ||
| 55 | 16 | 25.9 | {2.64} | 24.8 | 22.0 | 564.9{57.6} | 24.8 | 635.5{64.8} | 27.5 | 706.1{72.0} | 205 | ||
| 60 | 16 | 23.7 | {2.42} | 27.0 | 24.0 | 564.9{57.6} | 27.0 | 635.5{64.8} | 30.0 | 706.1{72.0} | 215 | ||
| 65 | 16 | 21.9 | {2.23} | 29.2 | 26.0 | 564.9{57.6} | 29.2 | 635.5{64.8} | 32.5 | 706.1{72.0} | 225 | ||
| 70 | 16 | 20.3 | {2.07} | 31.5 | 28.0 | 564.9{57.6} | 31.5 | 635.5{64.8} | 35.0 | 706.1{72.0} | 235 | ||
| 75 | 16 | 19.0 | {1.93} | 33.8 | 30.0 | 564.9{57.6} | 33.8 | 635.5{64.8} | 37.5 | 706.1{72.0} | 240 | ||
| 80 | 16 | 17.8 | {1.81} | 36.0 | 32.0 | 564.9{57.6} | 36.0 | 635.5{64.8} | 40.0 | 706.1{72.0} | 250 | ||
| 90 | 16 | 15.8 | {1.61} | 40.5 | 36.0 | 564.9{57.6} | 40.5 | 635.5{64.8} | 45.0 | 706.1{72.0} | 275 | ||
| 100 | 16 | 14.2 | {1.45} | 45.0 | 40.0 | 564.9{57.6} | 45.0 | 635.5{64.8} | 50.0 | 706.1{72.0} | 295 | ||
| 125 | 16 | 11.4 | {1.16} | 56.2 | 50.0 | 564.9{57.6} | 56.2 | 635.5{64.8} | 62.5 | 706.1{72.0} | 340 | ||
| 150 | 16 | 9.5 | {0.97} | 67.5 | 60.0 | 564.9{57.6} | 67.5 | 635.5{64.8} | 75.0 | 706.1{72.0} | 385 | ||
| 175 | 16 | 8.1 | {0.83} | 78.8 | 70.0 | 564.9{57.6} | 78.8 | 635.5{64.8} | 87.5 | 706.1{72.0} | 440 | ||
| 200 | 16 | 7.1 | {0.73} | 90.0 | 80.0 | 564.9{57.6} | 90.0 | 635.5{64.8} | 100.0 | 706.1{72.0} | 485 | ||
| SSWF | 35 | ||||||||||||
| 40 | 19 | 47.8 | {4.88} | 18.0 | 16.0 | 768.8{78.4} | 18.0 | 864.9{88.2} | 20.0 | 961.1{98.0} | 185 | ||
| 45 | 19 | 42.5 | {4.34} | 20.2 | 18.0 | 768.8{78.4} | 20.2 | 864.9{88.2} | 22.5 | 961.1{98.0} | 195 | ||
| 50 | 19 | 38.2 | {3.90} | 22.5 | 20.0 | 768.8{78.4} | 22.5 | 864.9{88.2} | 25.0 | 961.1{98.0} | 215 | ||
| 55 | 19 | 34.8 | {3.55} | 24.8 | 22.0 | 768.8{78.4} | 24.8 | 864.9{88.2} | 27.5 | 961.1{98.0} | 235 | ||
| 60 | 19 | 31.9 | {3.25} | 27.0 | 24.0 | 768.8{78.4} | 27.0 | 864.9{88.2} | 30.0 | 961.1{98.0} | 240 | ||
| 65 | 19 | 29.4 | {3.00} | 29.2 | 26.0 | 768.8{78.4} | 29.2 | 864.9{88.2} | 32.5 | 961.1{98.0} | 260 | ||
| 70 | 19 | 27.3 | {2.79} | 31.5 | 28.0 | 768.8{78.4} | 31.5 | 864.9{88.2} | 35.0 | 961.1{98.0} | 270 | ||
| 75 | 19 | 25.5 | {2.60} | 33.8 | 30.0 | 768.8{78.4} | 33.8 | 864.9{88.2} | 37.5 | 961.1{98.0} | 285 | ||
| 80 | 19 | 23.9 | {2.44} | 36.0 | 32.0 | 768.8{78.4} | 36.0 | 864.9{88.2} | 40.0 | 961.1{98.0} | 295 | ||
| 90 | 19 | 21.2 | {2.17} | 40.5 | 36.0 | 768.8{78.4} | 40.5 | 864.9{88.2} | 45.0 | 961.1{98.0} | 325 | ||
| 100 | 19 | 19.1 | {1.95} | 45.0 | 40.0 | 768.8{78.4} | 45.0 | 864.9{88.2} | 50.0 | 961.1{98.0} | 350 | ||
| 125 | 19 | 15.3 | {1.56} | 56.2 | 50.0 | 768.8{78.4} | 56.2 | 864.9{88.2} | 62.5 | 961.1{98.0} | 425 | ||
| 150 | 19 | 12.7 | {1.30} | 67.5 | 60.0 | 768.8{78.4} | 67.5 | 864.9{88.2} | 75.0 | 961.1{98.0} | 495 | ||
| 175 | 19 | 10.9 | {1.12} | 78.8 | 70.0 | 768.8{78.4} | 78.8 | 864.9{88.2} | 87.5 | 961.1{98.0} | 555 | ||
| 200 | 19 | 9.6 | {0.98} | 90.0 | 80.0 | 768.8{78.4} | 90.0 | 864.9{88.2} | 100.0 | 961.1{98.0} | 630 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×40% | F＝L×45% | F＝L×50% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWF | 40 | ||||||||||||
| 40 | 22 | 62.5 | {6.38} | 18.0 | 16.0 | 1000{102} | 18.0 | 1128{115} | 20.0 | 1255{128} | 235 | ||
| 45 | 22 | 55.6 | {5.67} | 20.2 | 18.0 | 1000{102} | 20.2 | 1128{115} | 22.5 | 1255{128} | 240 | ||
| 50 | 22 | 50.0 | {5.10} | 22.5 | 20.0 | 1000{102} | 22.5 | 1128{115} | 25.0 | 1255{128} | 250 | ||
| 55 | 22 | 45.5 | {4.64} | 24.8 | 22.0 | 1000{102} | 24.8 | 1128{115} | 27.5 | 1255{128} | 275 | ||
| 60 | 22 | 41.7 | {4.25} | 27.0 | 24.0 | 1000{102} | 27.0 | 1128{115} | 30.0 | 1255{128} | 285 | ||
| 65 | 22 | 38.5 | {3.93} | 29.2 | 26.0 | 1000{102} | 29.2 | 1128{115} | 32.5 | 1255{128} | 315 | ||
| 70 | 22 | 35.7 | {3.65} | 31.5 | 28.0 | 1000{102} | 31.5 | 1128{115} | 35.0 | 1255{128} | 335 | ||
| 75 | 22 | 33.3 | {3.40} | 33.8 | 30.0 | 1000{102} | 33.8 | 1128{115} | 37.5 | 1255{128} | 350 | ||
| 80 | 22 | 31.3 | {3.19} | 36.0 | 32.0 | 1000{102} | 36.0 | 1128{115} | 40.0 | 1255{128} | 360 | ||
| 90 | 22 | 27.8 | {2.84} | 40.5 | 36.0 | 1000{102} | 40.5 | 1128{115} | 45.0 | 1255{128} | 405 | ||
| 100 | 22 | 25.0 | {2.55} | 45.0 | 40.0 | 1000{102} | 45.0 | 1128{115} | 50.0 | 1255{128} | 440 | ||
| 125 | 22 | 20.0 | {2.04} | 56.2 | 50.0 | 1000{102} | 56.2 | 1128{115} | 62.5 | 1255{128} | 530 | ||
| 150 | 22 | 16.7 | {1.70} | 67.5 | 60.0 | 1000{102} | 67.5 | 1128{115} | 75.0 | 1255{128} | 630 | ||
| 175 | 22 | 14.3 | {1.46} | 78.8 | 70.0 | 1000{102} | 78.8 | 1128{115} | 87.5 | 1255{128} | 720 | ||
| 200 | 22 | 12.5 | {1.28} | 90.0 | 80.0 | 1000{102} | 90.0 | 1128{115} | 100.0 | 1255{128} | 815 | ||
| 225 | 22 | 11.1 | {1.13} | 101.2 | 90.0 | 1000{102} | 101.2 | 1128{115} | 112.5 | 1255{128} | 910 | ||
| 250 | 22 | 10.0 | {1.02} | 112.5 | 100.0 | 1000{102} | 112.5 | 1128{115} | 125.0 | 1255{128} | 1,000 | ||
| 275 | 22 | 9.1 | {0.93} | 124.0 | 110.0 | 1000{102} | 123.8 | 1128{115} | 137.5 | 1255{128} | 1,200 | ||
| 300 | 22 | 8.3 | {0.85} | 142.2 | 120.0 | 1000{102} | 135.0 | 1128{115} | 150.0 | 1255{128} | 1,290 | ||
| SSWF | 50 | ||||||||||||
| 50 | 27.5 | 78.5 | {8.01} | 22.5 | 20.0 | 1569{160} | 22.5 | 1765{180} | 25.0 | 1961{200} | 405 | ||
| 55 | 27.5 | 71.3 | {7.28} | 24.8 | 22.0 | 1569{160} | 24.8 | 1765{180} | 27.5 | 1961{200} | 420 | ||
| 60 | 27.5 | 65.4 | {6.67} | 27.0 | 24.0 | 1569{160} | 27.0 | 1765{180} | 30.0 | 1961{200} | 430 | ||
| 65 | 27.5 | 60.4 | {6.16} | 29.2 | 26.0 | 1569{160} | 29.2 | 1765{180} | 32.5 | 1961{200} | 460 | ||
| 70 | 27.5 | 56.0 | {5.72} | 31.5 | 28.0 | 1569{160} | 31.5 | 1765{180} | 35.0 | 1961{200} | 485 | ||
| 75 | 27.5 | 52.3 | {5.34} | 33.8 | 30.0 | 1569{160} | 33.8 | 1765{180} | 37.5 | 1961{200} | 510 | ||
| 80 | 27.5 | 49.0 | {5.00} | 36.0 | 32.0 | 1569{160} | 36.0 | 1765{180} | 40.0 | 1961{200} | 530 | ||
| 90 | 27.5 | 43.6 | {4.45} | 40.5 | 36.0 | 1569{160} | 40.5 | 1765{180} | 45.0 | 1961{200} | 585 | ||
| 100 | 27.5 | 39.2 | {4.00} | 45.0 | 40.0 | 1569{160} | 45.0 | 1765{180} | 50.0 | 1961{200} | 645 | ||
| 125 | 27.5 | 31.4 | {3.20} | 56.2 | 50.0 | 1569{160} | 56.2 | 1765{180} | 62.5 | 1961{200} | 775 | ||
| 150 | 27.5 | 26.2 | {2.67} | 67.5 | 60.0 | 1569{160} | 67.5 | 1765{180} | 75.0 | 1961{200} | 905 | ||
| 175 | 27.5 | 22.4 | {2.29} | 78.8 | 70.0 | 1569{160} | 78.8 | 1765{180} | 87.5 | 1961{200} | 1,040 | ||
| 200 | 27.5 | 19.6 | {2.00} | 90.0 | 80.0 | 1569{160} | 90.0 | 1765{180} | 100.0 | 1961{200} | 1,170 | ||
| 225 | 27.5 | 17.4 | {1.78} | 101.2 | 90.0 | 1569{160} | 101.2 | 1765{180} | 112.5 | 1961{200} | 1,310 | ||
| 250 | 27.5 | 15.7 | {1.60} | 112.5 | 100.0 | 1569{160} | 112.5 | 1765{180} | 125.0 | 1961{200} | 1,430 | ||
| 275 | 27.5 | 14.3 | {1.46} | 124.0 | 110.0 | 1569{160} | 123.8 | 1765{180} | 137.5 | 1961{200} | 1,570 | ||
| 300 | 27.5 | 13.1 | {1.33} | 135.0 | 120.0 | 1569{160} | 135.0 | 1765{180} | 150.0 | 1961{200} | 1,700 | ||
| 350 | 27.5 | 11.2 | {1.14} | 165.9 | 140.0 | 1569{160} | 157.5 | 1765{180} | 175.0 | 1961{200} | 2,040 | ||
| 400 | 27.5 | 9.8 | {1.00} | 189.6 | 160.0 | 1569{160} | 180.0 | 1765{180} | 200.0 | 1961{200} | 2,250 | ||
| 450 | 27.5 | 8.7 | {0.89} | 213.3 | 180.0 | 1569{160} | 202.5 | 1765{180} | 225.0 | 1961{200} | 2,430 | ||
| 500 | 27.5 | 7.8 | {0.80} | 237.0 | 200.0 | 1569{160} | 225.0 | 1765{180} | 250.0 | 1961{200} | 2,620 | ||
| SSWF | 60 | ||||||||||||
| 60 | 33 | 94.0 | {9.59} | 27.0 | 24.0 | 2256{230} | 27.0 | 2540{259} | 30.0 | 2824{288} | 715 | ||
| 70 | 33 | 80.6 | {8.22} | 31.5 | 28.0 | 2256{230} | 31.5 | 2540{259} | 35.0 | 2824{288} | 745 | ||
| 80 | 33 | 70.5 | {7.19} | 36.0 | 32.0 | 2256{230} | 36.0 | 2540{259} | 40.0 | 2824{288} | 765 | ||
| 90 | 33 | 62.7 | {6.39} | 40.5 | 36.0 | 2256{230} | 40.5 | 2540{259} | 45.0 | 2824{288} | 815 | ||
| 100 | 33 | 56.4 | {5.75} | 45.0 | 40.0 | 2256{230} | 45.0 | 2540{259} | 50.0 | 2824{288} | 895 | ||
| 125 | 33 | 45.1 | {4.60} | 56.2 | 50.0 | 2256{230} | 56.2 | 2540{259} | 62.5 | 2824{288} | 1,080 | ||
| 150 | 33 | 37.6 | {3.84} | 67.5 | 60.0 | 2256{230} | 67.5 | 2540{259} | 75.0 | 2824{288} | 1,280 | ||
| 175 | 33 | 32.2 | {3.29} | 78.8 | 70.0 | 2256{230} | 78.8 | 2540{259} | 87.5 | 2824{288} | 1,470 | ||
| 200 | 33 | 28.2 | {2.88} | 90.0 | 80.0 | 2256{230} | 90.0 | 2540{259} | 100.0 | 2824{288} | 1,670 | ||
| 225 | 33 | 25.1 | {2.56} | 101.3 | 90.0 | 2256{230} | 101.3 | 2540{259} | 112.5 | 2824{288} | 1,830 | ||
| 250 | 33 | 22.6 | {2.30} | 112.5 | 100.0 | 2256{230} | 112.5 | 2540{259} | 125.0 | 2824{288} | 2,010 | ||
| 275 | 33 | 20.5 | {2.09} | 123.8 | 110.0 | 2256{230} | 123.8 | 2540{259} | 137.5 | 2824{288} | 2,180 | ||
| 300 | 33 | 18.8 | {1.92} | 135.0 | 120.0 | 2256{230} | 135.0 | 2540{259} | 150.0 | 2824{288} | 2,360 | ||
| 350 | 33 | 16.1 | {1.64} | 165.9 | 140.0 | 2256{230} | 157.5 | 2540{259} | 175.0 | 2824{288} | 2,800 | ||
| 400 | 33 | 14.1 | {1.44} | 189.6 | 160.0 | 2256{230} | 180.0 | 2540{259} | 200.0 | 2824{288} | 3,110 | ||
| 450 | 33 | 12.5 | {1.28} | 213.3 | 180.0 | 2256{230} | 202.5 | 2540{259} | 225.0 | 2824{288} | 3,350 | ||
| 500 | 33 | 11.3 | {1.15} | 237.0 | 200.0 | 2256{230} | 225.0 | 2540{259} | 250.0 | 2824{288} | 3,620 | ||
| SSWF | 70 | ||||||||||||
| 70 | 38.5 | 112.1 | {11.44} | 33.2 | 28.0 | 3138{320} | 31.5 | 3530{360} | 35.0 | 3923{400} | 1,340 | ||
| 80 | 38.5 | 98.1 | {10.01} | 37.9 | 32.0 | 3138{320} | 36.0 | 3530{360} | 40.0 | 3923{400} | 1,380 | ||
| 90 | 38.5 | 87.2 | {8.89} | 42.7 | 36.0 | 3138{320} | 40.5 | 3530{360} | 45.0 | 3923{400} | 1,430 | ||
| 100 | 38.5 | 78.5 | {8.01} | 47.4 | 40.0 | 3138{320} | 45.0 | 3530{360} | 50.0 | 3923{400} | 1,520 | ||
| 125 | 38.5 | 62.8 | {6.40} | 59.2 | 50.0 | 3138{320} | 56.2 | 3530{360} | 62.5 | 3923{400} | 1,760 | ||
| 150 | 38.5 | 52.3 | {5.34} | 71.1 | 60.0 | 3138{320} | 67.5 | 3530{360} | 75.0 | 3923{400} | 2,040 | ||
| 175 | 38.5 | 44.8 | {4.57} | 83.0 | 70.0 | 3138{320} | 78.8 | 3530{360} | 87.5 | 3923{400} | 2,330 | ||
| 200 | 38.5 | 39.2 | {4.00} | 94.8 | 80.0 | 3138{320} | 90.0 | 3530{360} | 100.0 | 3923{400} | 2,660 | ||
| 250 | 38.5 | 31.4 | {3.20} | 118.5 | 100.0 | 3138{320} | 112.5 | 3530{360} | 125.0 | 3923{400} | 3,180 | ||
| 300 | 38.5 | 26.2 | {2.67} | 142.2 | 120.0 | 3138{320} | 135.0 | 3530{360} | 150.0 | 3923{400} | 3,800 | ||
| 350 | 38.5 | 22.4 | {2.29} | 165.9 | 140.0 | 3138{320} | 157.5 | 3530{360} | 175.0 | 3923{400} | 4,370 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
- Load calculation method:Load=Spring constant×Deflection
(kgf=N×0.101972)
- The solid height values are reference only
