Mold Parts

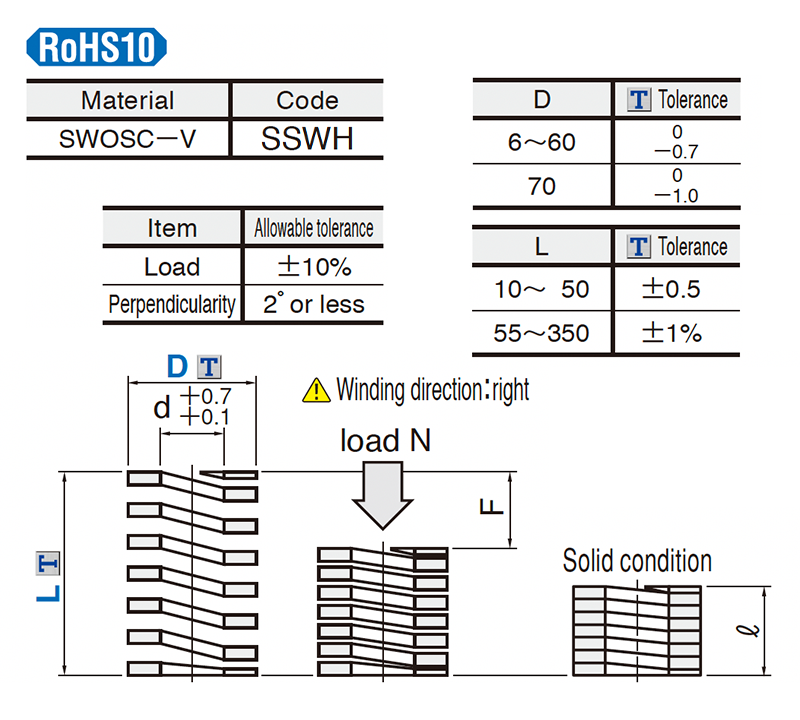

| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×19.2% | F＝L×21.6% | F＝L×24% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWH | 6 | ||||||||||||
| 15 | 3 | 38.1 | {3.9} | 11.0 | 2.9 | 109.8{11.2} | 3.2 | 123.6{12.6} | 3.6 | 137.3{14.0} | 115 | ||
| 20 | 3 | 28.6 | {2.9} | 14.7 | 3.8 | 109.8{11.2} | 4.3 | 123.6{12.6} | 4.8 | 137.3{14.0} | 120 | ||
| 25 | 3 | 22.9 | {2.3} | 18.4 | 4.8 | 109.8{11.2} | 5.4 | 123.6{12.6} | 6.0 | 137.3{14.0} | 120 | ||
| 30 | 3 | 19.1 | {1.9} | 22.0 | 5.8 | 109.8{11.2} | 6.5 | 123.6{12.6} | 7.2 | 137.3{14.0} | 130 | ||
| 35 | 3 | 16.3 | {1.7} | 25.7 | 6.7 | 109.8{11.2} | 7.6 | 123.6{12.6} | 8.4 | 137.3{14.0} | 140 | ||
| 40 | 3 | 14.3 | {1.5} | 29.4 | 7.7 | 109.8{11.2} | 8.6 | 123.6{12.6} | 9.6 | 137.3{14.0} | 145 | ||
| 45 | 3 | 12.7 | {1.3} | 33.0 | 8.6 | 109.8{11.2} | 9.7 | 123.6{12.6} | 10.8 | 137.3{14.0} | 155 | ||
| 50 | 3 | 11.4 | {1.2} | 36.6 | 9.6 | 109.8{11.2} | 10.8 | 123.6{12.6} | 12.0 | 137.3{14.0} | 160 | ||
| 55 | 3 | 10.4 | {1.1} | 40.4 | 10.6 | 109.8{11.2} | 11.9 | 123.6{12.6} | 13.2 | 137.3{14.0} | 170 | ||
| 60 | 3 | 9.5 | {1.0} | 44.0 | 11.5 | 109.8{11.2} | 13.0 | 123.6{12.6} | 14.4 | 137.3{14.0} | 170 | ||
| SSWH | 8 | ||||||||||||
| 10 | 4 | 86.5 | {8.8} | 7.4 | 1.9 | 164.8{16.8} | 2.2 | 185.3{18.9} | 2.4 | 205.9{21.0} | 75 | ||
| 15 | 4 | 57.2 | {5.8} | 10.8 | 2.9 | 164.8{16.8} | 3.2 | 185.3{18.9} | 3.6 | 205.9{21.0} | 75 | ||
| 20 | 4 | 42.9 | {4.4} | 14.4 | 3.8 | 164.8{16.8} | 4.3 | 185.3{18.9} | 4.8 | 205.9{21.0} | 85 | ||
| 25 | 4 | 34.3 | {3.5} | 18.0 | 4.8 | 164.8{16.8} | 5.4 | 185.3{18.9} | 6.0 | 205.9{21.0} | 100 | ||
| 30 | 4 | 28.6 | {2.9} | 21.6 | 5.8 | 164.8{16.8} | 6.5 | 185.3{18.9} | 7.2 | 205.9{21.0} | 120 | ||
| 35 | 4 | 24.5 | {2.5} | 25.2 | 6.7 | 164.8{16.8} | 7.6 | 185.3{18.9} | 8.4 | 205.9{21.0} | 130 | ||
| 40 | 4 | 21.5 | {2.2} | 28.8 | 7.7 | 164.8{16.8} | 8.6 | 185.3{18.9} | 9.6 | 205.9{21.0} | 140 | ||
| 45 | 4 | 19.1 | {1.9} | 32.4 | 8.6 | 164.8{16.8} | 9.7 | 185.3{18.9} | 10.8 | 205.9{21.0} | 145 | ||
| 50 | 4 | 17.2 | {1.8} | 36.0 | 9.6 | 164.8{16.8} | 10.8 | 185.3{18.9} | 12.0 | 205.9{21.0} | 155 | ||
| 55 | 4 | 15.6 | {1.6} | 39.6 | 10.6 | 164.8{16.8} | 11.9 | 185.3{18.9} | 13.2 | 205.9{21.0} | 160 | ||
| 60 | 4 | 14.3 | {1.5} | 43.2 | 11.5 | 164.8{16.8} | 13.0 | 185.3{18.9} | 14.4 | 205.9{21.0} | 170 | ||
| 65 | 4 | 13.2 | {1.3} | 47.7 | 12.5 | 164.8{16.8} | 14.0 | 185.3{18.9} | 15.6 | 205.9{21.0} | 210 | ||
| 70 | 4 | 12.3 | {1.3} | 51.4 | 13.4 | 164.8{16.8} | 15.1 | 185.3{18.9} | 16.8 | 205.9{21.0} | 230 | ||
| 75 | 4 | 11.4 | {1.2} | 55.1 | 14.4 | 164.8{16.8} | 16.2 | 185.3{18.9} | 18.0 | 205.9{21.0} | 245 | ||
| 80 | 4 | 10.7 | {1.1} | 58.7 | 15.4 | 164.8{16.8} | 17.3 | 185.3{18.9} | 19.2 | 205.9{21.0} | 265 | ||
| SSWH | 10 | ||||||||||||
| 10 | 5 | 123.0 | {12.5} | 7.4 | 1.9 | 235.4{24.0} | 2.2 | 264.8{27.0} | 2.4 | 294.2{30.0} | 80 | ||
| 15 | 5 | 81.7 | {8.3} | 11.0 | 2.9 | 235.4{24.0} | 3.2 | 264.8{27.0} | 3.6 | 294.2{30.0} | 85 | ||
| 20 | 5 | 61.3 | {6.3} | 14.4 | 3.8 | 235.4{24.0} | 4.3 | 264.8{27.0} | 4.8 | 294.2{30.0} | 85 | ||
| 25 | 5 | 49.0 | {5.0} | 18.0 | 4.8 | 235.4{24.0} | 5.4 | 264.8{27.0} | 6.0 | 294.2{30.0} | 90 | ||
| 30 | 5 | 40.8 | {4.2} | 21.6 | 5.8 | 235.4{24.0} | 6.5 | 264.8{27.0} | 7.2 | 294.2{30.0} | 100 | ||
| 35 | 5 | 35.0 | {3.6} | 25.2 | 6.7 | 235.4{24.0} | 7.6 | 264.8{27.0} | 8.4 | 294.2{30.0} | 110 | ||
| 40 | 5 | 30.6 | {3.1} | 28.8 | 7.7 | 235.4{24.0} | 8.6 | 264.8{27.0} | 9.6 | 294.2{30.0} | 120 | ||
| 45 | 5 | 27.2 | {2.8} | 32.4 | 8.6 | 235.4{24.0} | 9.7 | 264.8{27.0} | 10.8 | 294.2{30.0} | 120 | ||
| 50 | 5 | 24.5 | {2.5} | 36.0 | 9.6 | 235.4{24.0} | 10.8 | 264.8{27.0} | 12.0 | 294.2{30.0} | 130 | ||
| 55 | 5 | 22.3 | {2.3} | 39.6 | 10.6 | 235.4{24.0} | 11.9 | 264.8{27.0} | 13.2 | 294.2{30.0} | 140 | ||
| 60 | 5 | 20.4 | {2.1} | 43.2 | 11.5 | 235.4{24.0} | 13.0 | 264.8{27.0} | 14.4 | 294.2{30.0} | 145 | ||
| 65 | 5 | 18.8 | {1.9} | 46.8 | 12.5 | 235.4{24.0} | 14.0 | 264.8{27.0} | 15.6 | 294.2{30.0} | 155 | ||
| 70 | 5 | 17.5 | {1.8} | 50.4 | 13.4 | 235.4{24.0} | 15.1 | 264.8{27.0} | 16.8 | 294.2{30.0} | 155 | ||
| 75 | 5 | 16.3 | {1.7} | 54.0 | 14.4 | 235.4{24.0} | 16.2 | 264.8{27.0} | 18.0 | 294.2{30.0} | 160 | ||
| 80 | 5 | 15.3 | {1.6} | 57.6 | 15.4 | 235.4{24.0} | 17.3 | 264.8{27.0} | 19.2 | 294.2{30.0} | 170 | ||
| 90 | 5 | 13.6 | {1.4} | 64.8 | 17.3 | 235.4{24.0} | 19.4 | 264.8{27.0} | 21.6 | 294.2{30.0} | 190 | ||
| SSWH | 12 | ||||||||||||
| 15 | 6 | 117.0 | {11.9} | 11.0 | 2.9 | 337.3{34.4} | 3.2 | 379.5{38.7} | 3.6 | 421.7{43.0} | 120 | ||
| 20 | 6 | 87.7 | {8.9} | 14.4 | 3.8 | 337.3{34.4} | 4.3 | 379.5{38.7} | 4.8 | 421.7{43.0} | 120 | ||
| 25 | 6 | 70.2 | {7.2} | 18.0 | 4.8 | 337.3{34.4} | 5.4 | 379.5{38.7} | 6.0 | 421.7{43.0} | 120 | ||
| 30 | 6 | 58.5 | {6.0} | 21.6 | 5.8 | 337.3{34.4} | 6.5 | 379.5{38.7} | 7.2 | 421.7{43.0} | 130 | ||
| 35 | 6 | 50.1 | {5.1} | 25.2 | 6.7 | 337.3{34.4} | 7.6 | 379.5{38.7} | 8.4 | 421.7{43.0} | 140 | ||
| 40 | 6 | 43.9 | {4.5} | 28.8 | 7.7 | 337.3{34.4} | 8.6 | 379.5{38.7} | 9.6 | 421.7{43.0} | 145 | ||
| 45 | 6 | 39.0 | {4.0} | 32.4 | 8.6 | 337.3{34.4} | 9.7 | 379.5{38.7} | 10.8 | 421.7{43.0} | 155 | ||
| 50 | 6 | 35.1 | {3.6} | 36.0 | 9.6 | 337.3{34.4} | 10.8 | 379.5{38.7} | 12.0 | 421.7{43.0} | 160 | ||
| 55 | 6 | 31.9 | {3.3} | 39.6 | 10.6 | 337.3{34.4} | 11.9 | 379.5{38.7} | 13.2 | 421.7{43.0} | 170 | ||
| 60 | 6 | 29.2 | {3.0} | 43.2 | 11.5 | 337.3{34.4} | 13.0 | 379.5{38.7} | 14.4 | 421.7{43.0} | 170 | ||
| 65 | 6 | 27.0 | {2.8} | 46.8 | 12.5 | 337.3{34.4} | 14.0 | 379.5{38.7} | 15.6 | 421.7{43.0} | 180 | ||
| 70 | 6 | 25.1 | {2.6} | 50.4 | 13.4 | 337.3{34.4} | 15.1 | 379.5{38.7} | 16.8 | 421.7{43.0} | 180 | ||
| 75 | 6 | 23.4 | {2.4} | 54.0 | 14.4 | 337.3{34.4} | 16.2 | 379.5{38.7} | 18.0 | 421.7{43.0} | 185 | ||
| 80 | 6 | 21.9 | {2.2} | 57.6 | 15.4 | 337.3{34.4} | 17.3 | 379.5{38.7} | 19.2 | 421.7{43.0} | 205 | ||
| 90 | 6 | 19.5 | {2.0} | 64.8 | 17.3 | 337.3{34.4} | 19.4 | 379.5{38.7} | 21.6 | 421.7{43.0} | 225 | ||
| SSWH | 14 | ||||||||||||
| 20 | 7 | 120.1 | {12.3} | 14.7 | 3.8 | 462.9{47.2} | 4.3 | 520.7{53.1} | 4.8 | 578.6{59.0} | 140 | ||
| 25 | 7 | 96.2 | {9.8} | 18.0 | 4.8 | 462.9{47.2} | 5.4 | 520.7{53.1} | 6.0 | 578.6{59.0} | 140 | ||
| 30 | 7 | 80.2 | {8.2} | 21.6 | 5.8 | 462.9{47.2} | 6.5 | 520.7{53.1} | 7.2 | 578.6{59.0} | 145 | ||
| 35 | 7 | 68.8 | {7.0} | 25.2 | 6.7 | 462.9{47.2} | 7.6 | 520.7{53.1} | 8.4 | 578.6{59.0} | 155 | ||
| 40 | 7 | 60.2 | {6.1} | 28.8 | 7.7 | 462.9{47.2} | 8.6 | 520.7{53.1} | 9.6 | 578.6{59.0} | 160 | ||
| 45 | 7 | 53.5 | {5.5} | 32.4 | 8.6 | 462.9{47.2} | 9.7 | 520.7{53.1} | 10.8 | 578.6{59.0} | 170 | ||
| 50 | 7 | 48.1 | {4.9} | 36.0 | 9.6 | 462.9{47.2} | 10.8 | 520.7{53.1} | 12.0 | 578.6{59.0} | 180 | ||
| 55 | 7 | 43.8 | {4.5} | 39.6 | 10.6 | 462.9{47.2} | 11.9 | 520.7{53.1} | 13.2 | 578.6{59.0} | 185 | ||
| 60 | 7 | 40.1 | {4.1} | 43.2 | 11.5 | 462.9{47.2} | 13.0 | 520.7{53.1} | 14.4 | 578.6{59.0} | 195 | ||
| 65 | 7 | 37.0 | {3.8} | 46.8 | 12.5 | 462.9{47.2} | 14.0 | 520.7{53.1} | 15.6 | 578.6{59.0} | 195 | ||
| 70 | 7 | 34.4 | {3.5} | 50.4 | 13.4 | 462.9{47.2} | 15.1 | 520.7{53.1} | 16.8 | 578.6{59.0} | 205 | ||
| 75 | 7 | 32.1 | {3.3} | 54.0 | 14.4 | 462.9{47.2} | 16.2 | 520.7{53.1} | 18.0 | 578.6{59.0} | 215 | ||
| 80 | 7 | 30.1 | {3.1} | 57.6 | 15.4 | 462.9{47.2} | 17.3 | 520.7{53.1} | 19.2 | 578.6{59.0} | 215 | ||
| 90 | 7 | 26.7 | {2.7} | 64.8 | 17.3 | 462.9{47.2} | 19.4 | 520.7{53.1} | 21.6 | 578.6{59.0} | 235 | ||
| 100 | 7 | 24.1 | {2.5} | 72.0 | 19.2 | 462.9{47.2} | 21.6 | 520.7{53.1} | 24.0 | 578.6{59.0} | 250 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×19.2% | F＝L×21.6% | F＝L×24% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWH | 16 | ||||||||||||
| 20 | 8 | 158.3 | {16.2} | 14.7 | 3.8 | 604.1{61.6} | 4.3 | 679.6{69.3} | 4.8 | 755.1{77.0} | 155 | ||
| 25 | 8 | 126.7 | {12.9} | 18.0 | 4.8 | 604.1{61.6} | 5.4 | 679.6{69.3} | 6.0 | 755.1{77.0} | 155 | ||
| 30 | 8 | 105.6 | {10.8} | 21.6 | 5.8 | 604.1{61.6} | 6.5 | 679.6{69.3} | 7.2 | 755.1{77.0} | 160 | ||
| 35 | 8 | 90.5 | {9.2} | 25.2 | 6.7 | 604.1{61.6} | 7.6 | 679.6{69.3} | 8.4 | 755.1{77.0} | 180 | ||
| 40 | 8 | 79.2 | {8.1} | 28.8 | 7.7 | 604.1{61.6} | 8.6 | 679.6{69.3} | 9.6 | 755.1{77.0} | 185 | ||
| 45 | 8 | 70.4 | {7.2} | 32.4 | 8.6 | 604.1{61.6} | 9.7 | 679.6{69.3} | 10.8 | 755.1{77.0} | 195 | ||
| 50 | 8 | 63.3 | {6.5} | 36.0 | 9.6 | 604.1{61.6} | 10.8 | 679.6{69.3} | 12.0 | 755.1{77.0} | 215 | ||
| 55 | 8 | 57.6 | {5.9} | 39.6 | 10.6 | 604.1{61.6} | 11.9 | 679.6{69.3} | 13.2 | 755.1{77.0} | 225 | ||
| 60 | 8 | 52.8 | {5.4} | 43.2 | 11.5 | 604.1{61.6} | 13.0 | 679.6{69.3} | 14.4 | 755.1{77.0} | 235 | ||
| 65 | 8 | 48.7 | {5.0} | 46.8 | 12.5 | 604.1{61.6} | 14.0 | 679.6{69.3} | 15.6 | 755.1{77.0} | 250 | ||
| 70 | 8 | 45.2 | {4.6} | 50.4 | 13.4 | 604.1{61.6} | 15.1 | 679.6{69.3} | 16.8 | 755.1{77.0} | 260 | ||
| 75 | 8 | 42.2 | {4.3} | 54.0 | 14.4 | 604.1{61.6} | 16.2 | 679.6{69.3} | 18.0 | 755.1{77.0} | 275 | ||
| 80 | 8 | 39.6 | {4.0} | 57.6 | 15.4 | 604.1{61.6} | 17.3 | 679.6{69.3} | 19.2 | 755.1{77.0} | 285 | ||
| 90 | 8 | 35.2 | {3.6} | 64.8 | 17.3 | 604.1{61.6} | 19.4 | 679.6{69.3} | 21.6 | 755.1{77.0} | 305 | ||
| 100 | 8 | 31.7 | {3.2} | 72.0 | 19.2 | 604.1{61.6} | 21.6 | 679.6{69.3} | 24.0 | 755.1{77.0} | 335 | ||
| SSWH | 18 | ||||||||||||
| 20 | 9 | 199.2 | {20.3} | 14.7 | 3.8 | 761.0{77.6} | 4.3 | 856.1{87.3} | 4.8 | 951.2{97.0} | 155 | ||
| 25 | 9 | 159.4 | {16.3} | 18.0 | 4.8 | 761.0{77.6} | 5.4 | 856.1{87.3} | 6.0 | 951.2{97.0} | 170 | ||
| 30 | 9 | 132.8 | {13.6} | 21.6 | 5.8 | 761.0{77.6} | 6.5 | 856.1{87.3} | 7.2 | 951.2{97.0} | 185 | ||
| 35 | 9 | 113.8 | {11.6} | 25.2 | 6.7 | 761.0{77.6} | 7.6 | 856.1{87.3} | 8.4 | 951.2{97.0} | 195 | ||
| 40 | 9 | 99.6 | {10.2} | 28.8 | 7.7 | 761.0{77.6} | 8.6 | 856.1{87.3} | 9.6 | 951.2{97.0} | 205 | ||
| 45 | 9 | 88.5 | {9.0} | 32.4 | 8.6 | 761.0{77.6} | 9.7 | 856.1{87.3} | 10.8 | 951.2{97.0} | 225 | ||
| 50 | 9 | 79.7 | {8.1} | 36.0 | 9.6 | 761.0{77.6} | 10.8 | 856.1{87.3} | 12.0 | 951.2{97.0} | 235 | ||
| 55 | 9 | 72.4 | {7.4} | 39.6 | 10.6 | 761.0{77.6} | 11.9 | 856.1{87.3} | 13.2 | 951.2{97.0} | 240 | ||
| 60 | 9 | 66.4 | {6.8} | 43.2 | 11.5 | 761.0{77.6} | 13.0 | 856.1{87.3} | 14.4 | 951.2{97.0} | 260 | ||
| 65 | 9 | 61.3 | {6.3} | 46.8 | 12.5 | 761.0{77.6} | 14.0 | 856.1{87.3} | 15.6 | 951.2{97.0} | 270 | ||
| 70 | 9 | 56.9 | {5.8} | 50.4 | 13.4 | 761.0{77.6} | 15.1 | 856.1{87.3} | 16.8 | 951.2{97.0} | 275 | ||
| 75 | 9 | 53.1 | {5.4} | 54.0 | 14.4 | 761.0{77.6} | 16.2 | 856.1{87.3} | 18.0 | 951.2{97.0} | 295 | ||
| 80 | 9 | 49.8 | {5.1} | 57.6 | 15.4 | 761.0{77.6} | 17.3 | 856.1{87.3} | 19.2 | 951.2{97.0} | 305 | ||
| 90 | 9 | 44.3 | {4.5} | 64.8 | 17.3 | 761.0{77.6} | 19.4 | 856.1{87.3} | 21.6 | 951.2{97.0} | 335 | ||
| 100 | 9 | 39.8 | {4.1} | 72.0 | 19.2 | 761.0{77.6} | 21.6 | 856.1{87.3} | 24.0 | 951.2{97.0} | 350 | ||
| SSWH | 20 | ||||||||||||
| 20 | 10 | 245.2 | {25.0} | 14.7 | 3.8 | 941{96.0} | 4.3 | 1059{108} | 4.8 | 1177{120} | 155 | ||
| 25 | 10 | 196.1 | {20.0} | 18.0 | 4.8 | 941{96.0} | 5.4 | 1059{108} | 6.0 | 1177{120} | 155 | ||
| 30 | 10 | 163.4 | {16.7} | 21.6 | 5.8 | 941{96.0} | 6.5 | 1059{108} | 7.2 | 1177{120} | 160 | ||
| 35 | 10 | 140.1 | {14.3} | 25.2 | 6.7 | 941{96.0} | 7.6 | 1059{108} | 8.4 | 1177{120} | 180 | ||
| 40 | 10 | 122.6 | {12.5} | 28.8 | 7.7 | 941{96.0} | 8.6 | 1059{108} | 9.6 | 1177{120} | 185 | ||
| 45 | 10 | 109.0 | {11.1} | 32.4 | 8.6 | 941{96.0} | 9.7 | 1059{108} | 10.8 | 1177{120} | 195 | ||
| 50 | 10 | 98.1 | {10.0} | 36.0 | 9.6 | 941{96.0} | 10.8 | 1059{108} | 12.0 | 1177{120} | 215 | ||
| 55 | 10 | 89.1 | {9.1} | 39.6 | 10.6 | 941{96.0} | 11.9 | 1059{108} | 13.2 | 1177{120} | 225 | ||
| 60 | 10 | 81.7 | {8.3} | 43.2 | 11.5 | 941{96.0} | 13.0 | 1059{108} | 14.4 | 1177{120} | 235 | ||
| 65 | 10 | 75.4 | {7.7} | 46.8 | 12.5 | 941{96.0} | 14.0 | 1059{108} | 15.6 | 1177{120} | 250 | ||
| 70 | 10 | 70.0 | {7.1} | 50.4 | 13.4 | 941{96.0} | 15.1 | 1059{108} | 16.8 | 1177{120} | 260 | ||
| 75 | 10 | 65.4 | {6.7} | 54.0 | 14.4 | 941{96.0} | 16.2 | 1059{108} | 18.0 | 1177{120} | 275 | ||
| 80 | 10 | 61.3 | {6.3} | 57.6 | 15.4 | 941{96.0} | 17.3 | 1059{108} | 19.2 | 1177{120} | 285 | ||
| 90 | 10 | 54.5 | {5.6} | 64.8 | 17.3 | 941{96.0} | 19.4 | 1059{108} | 21.6 | 1177{120} | 315 | ||
| 100 | 10 | 49.0 | {5.0} | 72.0 | 19.2 | 941{96.0} | 21.6 | 1059{108} | 24.0 | 1177{120} | 335 | ||
| 125 | 10 | 39.2 | {4.0} | 90.0 | 24.0 | 941{96.0} | 27.0 | 1059{108} | 30.0 | 1177{120} | 375 | ||
| 150 | 10 | 32.7 | {3.3} | 108.0 | 28.8 | 941{96.0} | 32.4 | 1059{108} | 36.0 | 1177{120} | 430 | ||
| SSWH | 22 | ||||||||||||
| 25 | 11 | 237.0 | {24.2} | 18.0 | 4.8 | 1138{116} | 5.4 | 1285{131} | 6.0 | 1422{145} | 170 | ||
| 30 | 11 | 197.4 | {20.1} | 21.6 | 5.8 | 1138{116} | 6.5 | 1285{131} | 7.2 | 1422{145} | 180 | ||
| 35 | 11 | 169.2 | {17.3} | 25.2 | 6.7 | 1138{116} | 7.6 | 1285{131} | 8.4 | 1422{145} | 185 | ||
| 40 | 11 | 148.1 | {15.1} | 28.8 | 7.7 | 1138{116} | 8.6 | 1285{131} | 9.6 | 1422{145} | 195 | ||
| 45 | 11 | 131.6 | {13.4} | 32.4 | 8.6 | 1138{116} | 9.7 | 1285{131} | 10.8 | 1422{145} | 195 | ||
| 50 | 11 | 118.4 | {12.1} | 36.0 | 9.6 | 1138{116} | 10.8 | 1285{131} | 12.0 | 1422{145} | 205 | ||
| 55 | 11 | 107.7 | {11.0} | 39.6 | 10.6 | 1138{116} | 11.9 | 1285{131} | 13.2 | 1422{145} | 215 | ||
| 60 | 11 | 98.7 | {10.1} | 43.2 | 11.5 | 1138{116} | 13.0 | 1285{131} | 14.4 | 1422{145} | 225 | ||
| 65 | 11 | 91.1 | {9.3} | 46.8 | 12.5 | 1138{116} | 14.0 | 1285{131} | 15.6 | 1422{145} | 235 | ||
| 70 | 11 | 84.6 | {8.6} | 50.4 | 13.4 | 1138{116} | 15.1 | 1285{131} | 16.8 | 1422{145} | 240 | ||
| 75 | 11 | 79.0 | {8.1} | 54.0 | 14.4 | 1138{116} | 16.2 | 1285{131} | 18.0 | 1422{145} | 250 | ||
| 80 | 11 | 74.0 | {7.6} | 57.6 | 15.4 | 1138{116} | 17.3 | 1285{131} | 19.2 | 1422{145} | 260 | ||
| 90 | 11 | 65.8 | {6.7} | 64.8 | 17.3 | 1138{116} | 19.4 | 1285{131} | 21.6 | 1422{145} | 275 | ||
| 100 | 11 | 59.2 | {6.0} | 72.0 | 19.2 | 1138{116} | 21.6 | 1285{131} | 24.0 | 1422{145} | 305 | ||
| 125 | 11 | 47.4 | {4.8} | 90.0 | 24.0 | 1138{116} | 27.0 | 1285{131} | 30.0 | 1422{145} | 350 | ||
| 150 | 11 | 39.5 | {4.0} | 108.0 | 28.8 | 1138{116} | 32.4 | 1285{131} | 36.0 | 1422{145} | 405 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×19.2% | F＝L×21.6% | F＝L×24% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWH | 25 | ||||||||||||
| 25 | 12.5 | 306.2 | {31.3} | 18.0 | 4.8 | 1471{150} | 5.4 | 1648{168} | 6.0 | 1834{187} | 180 | ||
| 30 | 12.5 | 255.2 | {26.0} | 21.6 | 5.8 | 1471{150} | 6.5 | 1648{168} | 7.2 | 1834{187} | 185 | ||
| 35 | 12.5 | 218.8 | {22.3} | 25.2 | 6.7 | 1471{150} | 7.6 | 1648{168} | 8.4 | 1834{187} | 195 | ||
| 40 | 12.5 | 191.4 | {19.5} | 28.8 | 7.7 | 1471{150} | 8.6 | 1648{168} | 9.6 | 1834{187} | 215 | ||
| 45 | 12.5 | 170.1 | {17.4} | 32.4 | 8.6 | 1471{150} | 9.7 | 1648{168} | 10.8 | 1834{187} | 225 | ||
| 50 | 12.5 | 153.1 | {15.6} | 36.0 | 9.6 | 1471{150} | 10.8 | 1648{168} | 12.0 | 1834{187} | 235 | ||
| 55 | 12.5 | 139.2 | {14.2} | 39.6 | 10.6 | 1471{150} | 11.9 | 1648{168} | 13.2 | 1834{187} | 250 | ||
| 60 | 12.5 | 127.6 | {13.0} | 43.2 | 11.5 | 1471{150} | 13.0 | 1648{168} | 14.4 | 1834{187} | 260 | ||
| 65 | 12.5 | 117.8 | {12.0} | 46.8 | 12.5 | 1471{150} | 14.0 | 1648{168} | 15.6 | 1834{187} | 275 | ||
| 70 | 12.5 | 109.4 | {11.2} | 50.4 | 13.4 | 1471{150} | 15.1 | 1648{168} | 16.8 | 1834{187} | 285 | ||
| 75 | 12.5 | 102.1 | {10.4} | 54.0 | 14.4 | 1471{150} | 16.2 | 1648{168} | 18.0 | 1834{187} | 295 | ||
| 80 | 12.5 | 95.7 | {9.8} | 57.6 | 15.4 | 1471{150} | 17.3 | 1648{168} | 19.2 | 1834{187} | 315 | ||
| 90 | 12.5 | 85.1 | {8.7} | 64.8 | 17.3 | 1471{150} | 19.4 | 1648{168} | 21.6 | 1834{187} | 335 | ||
| 100 | 12.5 | 76.6 | {7.8} | 72.0 | 19.2 | 1471{150} | 21.6 | 1648{168} | 24.0 | 1834{187} | 350 | ||
| 125 | 12.5 | 61.2 | {6.3} | 90.0 | 24.0 | 1471{150} | 27.0 | 1648{168} | 30.0 | 1834{187} | 425 | ||
| 150 | 12.5 | 51.0 | {5.2} | 108.0 | 28.8 | 1471{150} | 32.4 | 1648{168} | 36.0 | 1834{187} | 485 | ||
| 175 | 12.5 | 43.8 | {4.5} | 126.0 | 33.6 | 1471{150} | 37.8 | 1648{168} | 42.0 | 1834{187} | 545 | ||
| SSWH | 27 | ||||||||||||
| 25 | 13.5 | 357.9 | {36.5} | 18.0 | 4.8 | 1716{175} | 5.4 | 1932{197} | 6.0 | 2148{219} | 195 | ||
| 30 | 13.5 | 298.3 | {30.4} | 21.6 | 5.8 | 1716{175} | 6.5 | 1932{197} | 7.2 | 2148{219} | 205 | ||
| 35 | 13.5 | 255.7 | {26.1} | 25.2 | 6.7 | 1716{175} | 7.6 | 1932{197} | 8.4 | 2148{219} | 225 | ||
| 40 | 13.5 | 223.7 | {22.8} | 28.8 | 7.7 | 1716{175} | 8.6 | 1932{197} | 9.6 | 2148{219} | 235 | ||
| 45 | 13.5 | 198.9 | {20.3} | 32.4 | 8.6 | 1716{175} | 9.7 | 1932{197} | 10.8 | 2148{219} | 240 | ||
| 50 | 13.5 | 179.0 | {18.3} | 36.0 | 9.6 | 1716{175} | 10.8 | 1932{197} | 12.0 | 2148{219} | 260 | ||
| 55 | 13.5 | 162.7 | {16.6} | 39.6 | 10.6 | 1716{175} | 11.9 | 1932{197} | 13.2 | 2148{219} | 270 | ||
| 60 | 13.5 | 149.1 | {15.2} | 43.2 | 11.5 | 1716{175} | 13.0 | 1932{197} | 14.4 | 2148{219} | 275 | ||
| 65 | 13.5 | 137.7 | {14.0} | 46.8 | 12.5 | 1716{175} | 14.0 | 1932{197} | 15.6 | 2148{219} | 295 | ||
| 70 | 13.5 | 127.8 | {13.0} | 50.4 | 13.4 | 1716{175} | 15.1 | 1932{197} | 16.8 | 2148{219} | 305 | ||
| 75 | 13.5 | 119.3 | {12.2} | 54.0 | 14.4 | 1716{175} | 16.2 | 1932{197} | 18.0 | 2148{219} | 315 | ||
| 80 | 13.5 | 111.9 | {11.4} | 57.6 | 15.4 | 1716{175} | 17.3 | 1932{197} | 19.2 | 2148{219} | 335 | ||
| 90 | 13.5 | 99.4 | {10.1} | 64.8 | 17.3 | 1716{175} | 19.4 | 1932{197} | 21.6 | 2148{219} | 360 | ||
| 100 | 13.5 | 89.5 | {9.1} | 72.0 | 19.2 | 1716{175} | 21.6 | 1932{197} | 24.0 | 2148{219} | 405 | ||
| 125 | 13.5 | 71.6 | {7.3} | 90.0 | 24.0 | 1716{175} | 27.0 | 1932{197} | 30.0 | 2148{219} | 505 | ||
| 150 | 13.5 | 59.7 | {6.1} | 108.0 | 28.8 | 1716{175} | 32.4 | 1932{197} | 36.0 | 2148{219} | 585 | ||
| 175 | 13.5 | 51.1 | {5.2} | 126.0 | 33.6 | 1716{175} | 37.8 | 1932{197} | 42.0 | 2148{219} | 665 | ||
| SSWH | 30 | ||||||||||||
| 25 | 15 | 441.3 | {45.0} | 18.0 | 4.8 | 2118{216} | 5.4 | 2383{243} | 6.0 | 2648{270} | 215 | ||
| 30 | 15 | 367.7 | {37.5} | 21.6 | 5.8 | 2118{216} | 6.5 | 2383{243} | 7.2 | 2648{270} | 235 | ||
| 35 | 15 | 315.0 | {32.1} | 25.2 | 6.7 | 2118{216} | 7.6 | 2383{243} | 8.4 | 2648{270} | 250 | ||
| 40 | 15 | 275.7 | {28.1} | 28.8 | 7.7 | 2118{216} | 8.6 | 2383{243} | 9.6 | 2648{270} | 270 | ||
| 45 | 15 | 245.0 | {25.0} | 32.4 | 8.6 | 2118{216} | 9.7 | 2383{243} | 10.8 | 2648{270} | 275 | ||
| 50 | 15 | 220.5 | {22.5} | 36.0 | 9.6 | 2118{216} | 10.8 | 2383{243} | 12.0 | 2648{270} | 295 | ||
| 55 | 15 | 200.5 | {20.5} | 39.6 | 10.6 | 2118{216} | 11.9 | 2383{243} | 13.2 | 2648{270} | 315 | ||
| 60 | 15 | 183.8 | {18.8} | 43.2 | 11.5 | 2118{216} | 13.0 | 2383{243} | 14.4 | 2648{270} | 335 | ||
| 65 | 15 | 169.6 | {17.3} | 46.8 | 12.5 | 2118{216} | 14.0 | 2383{243} | 15.6 | 2648{270} | 340 | ||
| 70 | 15 | 157.5 | {16.1} | 50.4 | 13.4 | 2118{216} | 15.1 | 2383{243} | 16.8 | 2648{270} | 350 | ||
| 75 | 15 | 147.0 | {15.0} | 54.0 | 14.4 | 2118{216} | 16.2 | 2383{243} | 18.0 | 2648{270} | 365 | ||
| 80 | 15 | 137.8 | {14.1} | 57.6 | 15.4 | 2118{216} | 17.3 | 2383{243} | 19.2 | 2648{270} | 385 | ||
| 90 | 15 | 122.5 | {12.5} | 64.8 | 17.3 | 2118{216} | 19.4 | 2383{243} | 21.6 | 2648{270} | 430 | ||
| 100 | 15 | 110.3 | {11.3} | 72.0 | 19.2 | 2118{216} | 21.6 | 2383{243} | 24.0 | 2648{270} | 485 | ||
| 125 | 15 | 88.2 | {9.0} | 90.0 | 24.0 | 2118{216} | 27.0 | 2383{243} | 30.0 | 2648{270} | 585 | ||
| 150 | 15 | 73.5 | {7.5} | 108.0 | 28.8 | 2118{216} | 32.4 | 2383{243} | 36.0 | 2648{270} | 695 | ||
| 175 | 15 | 63.0 | {6.4} | 126.0 | 33.6 | 2118{216} | 37.8 | 2383{243} | 42.0 | 2648{270} | 810 | ||
| 200 | 15 | 55.1 | {5.6} | 144.0 | 38.4 | 2118{216} | 43.2 | 2383{243} | 48.0 | 2648{270} | 905 | ||
| SSWH | 35 | ||||||||||||
| 40 | 17.5 | 374.9 | {38.3} | 28.8 | 7.7 | 2883{294} | 8.6 | 3236{330} | 9.6 | 3599{367} | 315 | ||
| 45 | 17.5 | 333.3 | {34.0} | 32.4 | 8.6 | 2883{294} | 9.7 | 3236{330} | 10.8 | 3599{367} | 335 | ||
| 50 | 17.5 | 299.4 | {30.5} | 36.0 | 9.6 | 2883{294} | 10.8 | 3236{330} | 12.0 | 3599{367} | 360 | ||
| 55 | 17.5 | 272.2 | {27.8} | 39.6 | 10.6 | 2883{294} | 11.9 | 3236{330} | 13.2 | 3599{367} | 385 | ||
| 60 | 17.5 | 249.5 | {25.5} | 43.2 | 11.5 | 2883{294} | 13.0 | 3236{330} | 14.4 | 3599{367} | 425 | ||
| 65 | 17.5 | 230.3 | {23.5} | 46.8 | 12.5 | 2883{294} | 14.0 | 3236{330} | 15.6 | 3599{367} | 450 | ||
| 70 | 17.5 | 213.8 | {21.8} | 50.4 | 13.4 | 2883{294} | 15.1 | 3236{330} | 16.8 | 3599{367} | 475 | ||
| 75 | 17.5 | 199.6 | {20.4} | 54.0 | 14.4 | 2883{294} | 16.2 | 3236{330} | 18.0 | 3599{367} | 505 | ||
| 80 | 17.5 | 187.1 | {19.1} | 57.6 | 15.4 | 2883{294} | 17.3 | 3236{330} | 19.2 | 3599{367} | 525 | ||
| 90 | 17.5 | 166.3 | {17.0} | 64.8 | 17.3 | 2883{294} | 19.4 | 3236{330} | 21.6 | 3599{367} | 585 | ||
| 100 | 17.5 | 149.7 | {15.3} | 72.0 | 19.2 | 2883{294} | 21.6 | 3236{330} | 24.0 | 3599{367} | 635 | ||
| 125 | 17.5 | 119.8 | {12.2} | 90.0 | 24.0 | 2883{294} | 27.0 | 3236{330} | 30.0 | 3599{367} | 775 | ||
| 150 | 17.5 | 99.8 | {10.2} | 108.0 | 28.8 | 2883{294} | 32.4 | 3236{330} | 36.0 | 3599{367} | 905 | ||
| 175 | 17.5 | 85.5 | {8.7} | 126.0 | 33.6 | 2883{294} | 37.8 | 3236{330} | 42.0 | 3599{367} | 1,050 | ||
| 200 | 17.5 | 74.8 | {7.6} | 144.0 | 38.4 | 2883{294} | 43.2 | 3236{330} | 48.0 | 3599{367} | 1,190 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×19.2% | F＝L×21.6% | F＝L×24% | @/P （1～19P） |
||||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWH | 40 | ||||||||||||
| 40 | 20 | 490.4 | {50.0} | 28.8 | 7.7 | 3766{384} | 8.6 | 4236{432} | 9.6 | 4707{480} | 385 | ||
| 45 | 20 | 435.9 | {44.5} | 33.0 | 8.6 | 3766{384} | 9.7 | 4236{432} | 10.8 | 4707{480} | 420 | ||
| 50 | 20 | 392.3 | {40.0} | 36.0 | 9.6 | 3766{384} | 10.8 | 4236{432} | 12.0 | 4707{480} | 450 | ||
| 55 | 20 | 356.6 | {36.4} | 40.4 | 10.6 | 3766{384} | 11.9 | 4236{432} | 13.2 | 4707{480} | 495 | ||
| 60 | 20 | 326.9 | {33.4} | 43.2 | 11.5 | 3766{384} | 13.0 | 4236{432} | 14.4 | 4707{480} | 515 | ||
| 65 | 20 | 301.8 | {30.8} | 47.7 | 12.5 | 3766{384} | 14.0 | 4236{432} | 15.6 | 4707{480} | 555 | ||
| 70 | 20 | 280.2 | {28.6} | 50.4 | 13.4 | 3766{384} | 15.1 | 4236{432} | 16.8 | 4707{480} | 585 | ||
| 75 | 20 | 261.5 | {26.7} | 55.1 | 14.4 | 3766{384} | 16.2 | 4236{432} | 18.0 | 4707{480} | 635 | ||
| 80 | 20 | 245.2 | {25.0} | 57.6 | 15.4 | 3766{384} | 17.3 | 4236{432} | 19.2 | 4707{480} | 665 | ||
| 90 | 20 | 217.9 | {22.2} | 64.8 | 17.3 | 3766{384} | 19.4 | 4236{432} | 21.6 | 4707{480} | 725 | ||
| 100 | 20 | 196.1 | {20.0} | 72.0 | 19.2 | 3766{384} | 21.6 | 4236{432} | 24.0 | 4707{480} | 805 | ||
| 125 | 20 | 156.9 | {16.0} | 90.0 | 24.0 | 3766{384} | 27.0 | 4236{432} | 30.0 | 4707{480} | 975 | ||
| 150 | 20 | 130.8 | {13.3} | 108.0 | 28.8 | 3766{384} | 32.4 | 4236{432} | 36.0 | 4707{480} | 1,140 | ||
| 175 | 20 | 112.1 | {11.4} | 126.0 | 33.6 | 3766{384} | 37.8 | 4236{432} | 42.0 | 4707{480} | 1,310 | ||
| 200 | 20 | 98.1 | {10.0} | 144.0 | 38.4 | 3766{384} | 43.2 | 4236{432} | 48.0 | 4707{480} | 1,480 | ||
| 225 | 20 | 87.2 | {8.9} | 162.0 | 43.2 | 3766{384} | 48.6 | 4236{432} | 54.0 | 4707{480} | 1,650 | ||
| 250 | 20 | 78.5 | {8.0} | 180.0 | 48.0 | 3766{384} | 54.0 | 4236{432} | 60.0 | 4707{480} | 1,820 | ||
| 275 | 20 | 71.3 | {7.3} | 198.0 | 52.8 | 3766{384} | 59.4 | 4236{432} | 66.0 | 4707{480} | 2,080 | ||
| 300 | 20 | 65.4 | {6.7} | 220.2 | 57.6 | 3766{384} | 64.8 | 4236{432} | 72.0 | 4707{480} | 2,330 | ||
| SSWH | 50 | ||||||||||||
| 50 | 25 | 613.0 | {62.5} | 36.0 | 9.6 | 5884{600} | 10.8 | 6619{675} | 12.0 | 7355{750} | 755 | ||
| 55 | 25 | 557.2 | {56.9} | 39.6 | 10.6 | 5884{600} | 11.9 | 6619{675} | 13.2 | 7355{750} | 780 | ||
| 60 | 25 | 510.8 | {52.1} | 43.2 | 11.5 | 5884{600} | 13.0 | 6619{675} | 14.4 | 7355{750} | 805 | ||
| 65 | 25 | 471.5 | {48.1} | 46.8 | 12.5 | 5884{600} | 14.0 | 6619{675} | 15.6 | 7355{750} | 850 | ||
| 70 | 25 | 437.8 | {44.7} | 50.4 | 13.4 | 5884{600} | 15.1 | 6619{675} | 16.8 | 7355{750} | 895 | ||
| 75 | 25 | 408.6 | {41.7} | 54.0 | 14.4 | 5884{600} | 16.2 | 6619{675} | 18.0 | 7355{750} | 950 | ||
| 80 | 25 | 383.1 | {39.1} | 57.6 | 15.4 | 5884{600} | 17.3 | 6619{675} | 19.2 | 7355{750} | 1,000 | ||
| 90 | 25 | 340.5 | {34.7} | 64.8 | 17.3 | 5884{600} | 19.4 | 6619{675} | 21.6 | 7355{750} | 1,100 | ||
| 100 | 25 | 306.5 | {31.3} | 72.0 | 19.2 | 5884{600} | 21.6 | 6619{675} | 24.0 | 7355{750} | 1,200 | ||
| 125 | 25 | 245.2 | {25.0} | 90.0 | 24.0 | 5884{600} | 27.0 | 6619{675} | 30.0 | 7355{750} | 1,450 | ||
| 150 | 25 | 204.3 | {20.8} | 108.0 | 28.8 | 5884{600} | 32.4 | 6619{675} | 36.0 | 7355{750} | 1,710 | ||
| 175 | 25 | 175.1 | {17.9} | 126.0 | 33.6 | 5884{600} | 37.8 | 6619{675} | 42.0 | 7355{750} | 1,970 | ||
| 200 | 25 | 153.2 | {15.6} | 144.0 | 38.4 | 5884{600} | 43.2 | 6619{675} | 48.0 | 7355{750} | 2,220 | ||
| 225 | 25 | 136.2 | {13.9} | 162.0 | 43.2 | 5884{600} | 48.6 | 6619{675} | 54.0 | 7355{750} | 2,470 | ||
| 250 | 25 | 122.6 | {12.5} | 180.0 | 48.0 | 5884{600} | 54.0 | 6619{675} | 60.0 | 7355{750} | 2,710 | ||
| 275 | 25 | 111.4 | {11.4} | 198.0 | 52.8 | 5884{600} | 59.4 | 6619{675} | 66.0 | 7355{750} | 2,980 | ||
| 300 | 25 | 102.2 | {10.4} | 216.0 | 57.6 | 5884{600} | 64.8 | 6619{675} | 72.0 | 7355{750} | 3,250 | ||
| 350 | 25 | 87.6 | {8.9} | 256.9 | 67.2 | 5884{600} | 75.6 | 6619{675} | 84.0 | 7355{750} | 3,750 | ||
| SSWH | 60 | ||||||||||||
| 60 | 30 | 735.5 | {75.1} | 43.2 | 11.5 | 8463{863} | 13.0 | 9522{971} | 14.4 | 10581{1079} | 1,180 | ||
| 70 | 30 | 630.4 | {64.3} | 50.4 | 13.4 | 8463{863} | 15.1 | 9522{971} | 16.8 | 10581{1079} | 1,220 | ||
| 80 | 30 | 551.6 | {56.3} | 57.6 | 15.4 | 8463{863} | 17.3 | 9522{971} | 19.2 | 10581{1079} | 1,360 | ||
| 90 | 30 | 490.3 | {50.0} | 64.8 | 17.3 | 8463{863} | 19.4 | 9522{971} | 21.6 | 10581{1079} | 1,510 | ||
| 100 | 30 | 441.3 | {45.0} | 72.0 | 19.2 | 8463{863} | 21.6 | 9522{971} | 24.0 | 10581{1079} | 1,640 | ||
| 125 | 30 | 353.0 | {36.0} | 90.0 | 24.0 | 8463{863} | 27.0 | 9522{971} | 30.0 | 10581{1079} | 1,990 | ||
| 150 | 30 | 294.2 | {30.0} | 108.0 | 28.8 | 8463{863} | 32.4 | 9522{971} | 36.0 | 10581{1079} | 2,340 | ||
| 175 | 30 | 252.2 | {25.7} | 126.0 | 33.6 | 8463{863} | 37.8 | 9522{971} | 42.0 | 10581{1079} | 2,680 | ||
| 200 | 30 | 220.7 | {22.5} | 144.0 | 38.4 | 8463{863} | 43.2 | 9522{971} | 48.0 | 10581{1079} | 3,030 | ||
| 225 | 30 | 196.0 | {20.0} | 162.0 | 43.2 | 8463{863} | 48.6 | 9522{971} | 54.0 | 10581{1079} | 3,290 | ||
| 250 | 30 | 176.5 | {18.0} | 180.0 | 48.0 | 8463{863} | 54.0 | 9522{971} | 60.0 | 10581{1079} | 3,550 | ||
| 275 | 30 | 160.0 | {16.4} | 198.0 | 52.8 | 8463{863} | 59.4 | 9522{971} | 66.0 | 10581{1079} | 3,820 | ||
| 300 | 30 | 147.1 | {15.0} | 216.0 | 57.6 | 8463{863} | 64.8 | 9522{971} | 72.0 | 10581{1079} | 4,090 | ||
| 350 | 30 | 126.1 | {12.9} | 256.9 | 67.2 | 8463{863} | 75.6 | 9522{971} | 84.0 | 10581{1079} | 4,700 | ||
| SSWH | 70 | ||||||||||||
| 70 | 38.5 | 758.9 | {77.4} | 51.4 | 13.4 | 10042{1024} | 15.1 | 11297{1152} | 16.8 | 12553{1280} | 2,160 | ||
| 80 | 38.5 | 664.0 | {67.8} | 58.7 | 15.4 | 10042{1024} | 17.3 | 11297{1152} | 19.2 | 12553{1280} | 2,220 | ||
| 90 | 38.5 | 590.2 | {60.2} | 66.1 | 17.3 | 10042{1024} | 19.4 | 11297{1152} | 21.6 | 12553{1280} | 2,290 | ||
| 100 | 38.5 | 531.2 | {54.2} | 72.0 | 19.2 | 10042{1024} | 21.6 | 11297{1152} | 24.0 | 12553{1280} | 2,370 | ||
| 125 | 38.5 | 425.0 | {43.4} | 90.0 | 24.0 | 10042{1024} | 27.0 | 11297{1152} | 30.0 | 12553{1280} | 2,820 | ||
| 150 | 38.5 | 354.1 | {36.1} | 108.0 | 28.8 | 10042{1024} | 32.4 | 11297{1152} | 36.0 | 12553{1280} | 3,310 | ||
| 175 | 38.5 | 303.5 | {31.0} | 126.0 | 33.6 | 10042{1024} | 37.8 | 11297{1152} | 42.0 | 12553{1280} | 3,750 | ||
| 200 | 38.5 | 265.6 | {27.1} | 144.0 | 38.4 | 10042{1024} | 43.2 | 11297{1152} | 48.0 | 12553{1280} | 4,180 | ||
| 250 | 38.5 | 212.5 | {21.7} | 180.0 | 48.0 | 10042{1024} | 54.0 | 11297{1152} | 60.0 | 12553{1280} | 4,970 | ||
| 300 | 38.5 | 177.1 | {18.1} | 216.0 | 57.6 | 10042{1024} | 64.8 | 11297{1152} | 72.0 | 12553{1280} | 5,870 | ||
| 350 | 38.5 | 151.8 | {15.5} | 252.0 | 67.2 | 10042{1024} | 75.6 | 11297{1152} | 84.0 | 12553{1280} | 6,750 | ||
| Operation frequency | 1 million times | 500,000 times | 300,000 times | ||||||||||
- Load calculation method:Load=Spring constant×Deflection
(kgf=N×0.101972)
- The solid height values are reference only
