Mold Parts
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×65％ | @/P （1～19P） |
||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWY | 11 | ||||||||
| 20 | 7 | 2.26 | {0.23} | 5.0 | 13.0 | 29.4{3.0} | 160 | ||
| 25 | 7 | 1.81 | {0.18} | 6.3 | 16.3 | 29.4{3.0} | 170 | ||
| 30 | 7 | 1.51 | {0.15} | 7.5 | 19.5 | 29.4{3.0} | 180 | ||
| 35 | 7 | 1.29 | {0.13} | 8.8 | 22.8 | 29.4{3.0} | 190 | ||
| 40 | 7 | 1.13 | {0.12} | 10.0 | 26.0 | 29.4{3.0} | 200 | ||
| 45 | 7 | 1.01 | {0.10} | 11.3 | 29.3 | 29.4{3.0} | 210 | ||
| 50 | 7 | 0.90 | {0.09} | 12.5 | 32.5 | 29.4{3.0} | 220 | ||
| 55 | 7 | 0.82 | {0.08} | 13.8 | 35.8 | 29.4{3.0} | 230 | ||
| 60 | 7 | 0.75 | {0.08} | 15.0 | 39.0 | 29.4{3.0} | 240 | ||
| 65 | 7 | 0.70 | {0.07} | 16.2 | 42.3 | 29.4{3.0} | 250 | ||
| 70 | 7 | 0.65 | {0.07} | 17.5 | 45.5 | 29.4{3.0} | 260 | ||
| 75 | 7 | 0.60 | {0.06} | 18.8 | 48.8 | 29.4{3.0} | 270 | ||
| 80 | 7 | 0.57 | {0.06} | 20.0 | 52.0 | 29.4{3.0} | 280 | ||
| 90 | 7 | 0.50 | {0.05} | 22.5 | 58.5 | 29.4{3.0} | 310 | ||
| 100 | 7 | 0.45 | {0.05} | 25.0 | 65.0 | 29.4{3.0} | 330 | ||
| SSWY | 12.5 | ||||||||
| 20 | 8.5 | 3.09 | {0.32} | 5.0 | 13.0 | 40.2{4.1} | 165 | ||
| 25 | 8.5 | 2.47 | {0.25} | 6.3 | 16.3 | 40.2{4.1} | 185 | ||
| 30 | 8.5 | 2.06 | {0.21} | 7.5 | 19.5 | 40.2{4.1} | 200 | ||
| 35 | 8.5 | 1.77 | {0.18} | 8.8 | 22.8 | 40.2{4.1} | 210 | ||
| 40 | 8.5 | 1.55 | {0.16} | 10.0 | 26.0 | 40.2{4.1} | 225 | ||
| 45 | 8.5 | 1.37 | {0.14} | 11.3 | 29.3 | 40.2{4.1} | 235 | ||
| 50 | 8.5 | 1.24 | {0.13} | 12.5 | 32.5 | 40.2{4.1} | 250 | ||
| 55 | 8.5 | 1.12 | {0.11} | 13.8 | 35.8 | 40.2{4.1} | 260 | ||
| 60 | 8.5 | 1.03 | {0.11} | 15.0 | 39.0 | 40.2{4.1} | 270 | ||
| 65 | 8.5 | 0.95 | {0.10} | 16.2 | 42.3 | 40.2{4.1} | 290 | ||
| 70 | 8.5 | 0.88 | {0.09} | 17.5 | 45.5 | 40.2{4.1} | 300 | ||
| 75 | 8.5 | 0.82 | {0.08} | 18.8 | 48.8 | 40.2{4.1} | 320 | ||
| 80 | 8.5 | 0.77 | {0.08} | 20.0 | 52.0 | 40.2{4.1} | 330 | ||
| 90 | 8.5 | 0.69 | {0.07} | 22.5 | 58.5 | 40.2{4.1} | 340 | ||
| 100 | 8.5 | 0.62 | {0.06} | 25.0 | 65.0 | 40.2{4.1} | 365 | ||
| 110 | 8.5 | 0.56 | {0.06} | 27.5 | 71.5 | 40.2{4.1} | 375 | ||
| 120 | 8.5 | 0.52 | {0.05} | 30.0 | 78.0 | 40.2{4.1} | 380 | ||
| 125 | 8.5 | 0.49 | {0.05} | 31.2 | 81.3 | 40.2{4.1} | 390 | ||
| SSWY | 16.5 | ||||||||
| 20 | 10.5 | 7.02 | {0.72} | 5.0 | 13.0 | 91.2{9.3} | 195 | ||
| 25 | 10.5 | 5.61 | {0.57} | 6.3 | 16.3 | 91.2{9.3} | 200 | ||
| 30 | 10.5 | 4.68 | {0.48} | 7.5 | 19.5 | 91.2{9.3} | 210 | ||
| 35 | 10.5 | 4.01 | {0.41} | 8.8 | 22.8 | 91.2{9.3} | 215 | ||
| 40 | 10.5 | 3.51 | {0.36} | 10.0 | 26.0 | 91.2{9.3} | 225 | ||
| 45 | 10.5 | 3.12 | {0.32} | 11.3 | 29.3 | 91.2{9.3} | 250 | ||
| 50 | 10.5 | 2.81 | {0.29} | 12.5 | 32.5 | 91.2{9.3} | 260 | ||
| 55 | 10.5 | 2.55 | {0.26} | 13.8 | 35.8 | 91.2{9.3} | 280 | ||
| 60 | 10.5 | 2.34 | {0.24} | 15.0 | 39.0 | 91.2{9.3} | 290 | ||
| 65 | 10.5 | 2.16 | {0.22} | 16.2 | 42.3 | 91.2{9.3} | 300 | ||
| 70 | 10.5 | 2.00 | {0.20} | 17.5 | 45.5 | 91.2{9.3} | 315 | ||
| 75 | 10.5 | 1.87 | {0.19} | 18.8 | 48.8 | 91.2{9.3} | 330 | ||
| 80 | 10.5 | 1.75 | {0.18} | 20.0 | 52.0 | 91.2{9.3} | 340 | ||
| 90 | 10.5 | 1.56 | {0.16} | 22.5 | 58.5 | 91.2{9.3} | 360 | ||
| 100 | 10.5 | 1.40 | {0.14} | 25.0 | 65.0 | 91.2{9.3} | 385 | ||
| 110 | 10.5 | 1.28 | {0.13} | 27.5 | 71.5 | 91.2{9.3} | 395 | ||
| 120 | 10.5 | 1.17 | {0.12} | 30.0 | 78.0 | 91.2{9.3} | 400 | ||
| 125 | 10.5 | 1.12 | {0.11} | 31.2 | 81.3 | 91.2{9.3} | 410 | ||
| 150 | 10.5 | 0.94 | {0.10} | 37.5 | 97.5 | 91.2{9.3} | 420 | ||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×65％ | @/P （1～19P） |
||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWY | 20.5 | ||||||||
| 30 | 13.5 | 5.58 | {0.57} | 7.5 | 19.5 | 108.9{11.1} | 235 | ||
| 35 | 13.5 | 4.79 | {0.49} | 8.8 | 22.8 | 108.9{11.1} | 250 | ||
| 40 | 13.5 | 4.19 | {0.43} | 10.0 | 26.0 | 108.9{11.1} | 260 | ||
| 45 | 13.5 | 3.72 | {0.38} | 11.3 | 29.3 | 108.9{11.1} | 280 | ||
| 50 | 13.5 | 3.35 | {0.34} | 12.5 | 32.5 | 108.9{11.1} | 290 | ||
| 55 | 13.5 | 3.05 | {0.31} | 13.8 | 35.8 | 108.9{11.1} | 300 | ||
| 60 | 13.5 | 2.79 | {0.28} | 15.0 | 39.0 | 108.9{11.1} | 315 | ||
| 65 | 13.5 | 2.58 | {0.26} | 16.2 | 42.3 | 108.9{11.1} | 330 | ||
| 70 | 13.5 | 2.39 | {0.24} | 17.5 | 45.5 | 108.9{11.1} | 340 | ||
| 75 | 13.5 | 2.23 | {0.23} | 18.8 | 48.8 | 108.9{11.1} | 350 | ||
| 80 | 13.5 | 2.09 | {0.21} | 20.0 | 52.0 | 108.9{11.1} | 360 | ||
| 90 | 13.5 | 1.86 | {0.19} | 22.5 | 58.5 | 108.9{11.1} | 375 | ||
| 100 | 13.5 | 1.68 | {0.17} | 25.0 | 65.0 | 108.9{11.1} | 395 | ||
| 110 | 13.5 | 1.52 | {0.16} | 27.5 | 71.5 | 108.9{11.1} | 405 | ||
| 120 | 13.5 | 1.40 | {0.14} | 30.0 | 78.0 | 108.9{11.1} | 420 | ||
| 125 | 13.5 | 1.34 | {0.14} | 31.2 | 81.3 | 108.9{11.1} | 420 | ||
| 130 | 13.5 | 1.29 | {0.13} | 32.5 | 84.5 | 108.9{11.1} | 425 | ||
| 140 | 13.5 | 1.20 | {0.12} | 35.0 | 91.0 | 108.9{11.1} | 435 | ||
| 150 | 13.5 | 1.12 | {0.11} | 37.5 | 97.5 | 108.9{11.1} | 435 | ||
| SSWY | 24.5 | ||||||||
| 30 | 16.5 | 6.99 | {0.71} | 7.5 | 19.5 | 136.3{13.9} | 295 | ||
| 35 | 16.5 | 5.99 | {0.61} | 8.8 | 22.8 | 136.3{13.9} | 300 | ||
| 40 | 16.5 | 5.24 | {0.53} | 10.0 | 26.0 | 136.3{13.9} | 315 | ||
| 45 | 16.5 | 4.66 | {0.48} | 11.3 | 29.3 | 136.3{13.9} | 330 | ||
| 50 | 16.5 | 4.19 | {0.43} | 12.5 | 32.5 | 136.3{13.9} | 340 | ||
| 55 | 16.5 | 3.81 | {0.39} | 13.8 | 35.8 | 136.3{13.9} | 350 | ||
| 60 | 16.5 | 3.49 | {0.36} | 15.0 | 39.0 | 136.3{13.9} | 365 | ||
| 65 | 16.5 | 3.23 | {0.33} | 16.2 | 42.3 | 136.3{13.9} | 375 | ||
| 70 | 16.5 | 3.00 | {0.31} | 17.5 | 45.5 | 136.3{13.9} | 395 | ||
| 75 | 16.5 | 2.80 | {0.29} | 18.8 | 48.8 | 136.3{13.9} | 405 | ||
| 80 | 16.5 | 2.62 | {0.27} | 20.0 | 52.0 | 136.3{13.9} | 420 | ||
| 90 | 16.5 | 2.33 | {0.24} | 22.5 | 58.5 | 136.3{13.9} | 425 | ||
| 100 | 16.5 | 2.01 | {0.21} | 25.0 | 65.0 | 136.3{13.9} | 435 | ||
| 110 | 16.5 | 1.91 | {0.19} | 27.5 | 71.5 | 136.3{13.9} | 445 | ||
| 120 | 16.5 | 1.75 | {0.18} | 30.0 | 78.0 | 136.3{13.9} | 455 | ||
| 125 | 16.5 | 1.68 | {0.17} | 31.2 | 81.3 | 136.3{13.9} | 455 | ||
| 130 | 16.5 | 1.61 | {0.16} | 32.5 | 84.5 | 136.3{13.9} | 470 | ||
| 140 | 16.5 | 1.50 | {0.15} | 35.0 | 91.0 | 136.3{13.9} | 480 | ||
| 150 | 16.5 | 1.40 | {0.14} | 37.5 | 97.5 | 136.3{13.9} | 490 | ||
| 175 | 16.5 | 1.20 | {0.12} | 43.8 | 113.8 | 136.3{13.9} | 500 | ||
| 200 | 16.5 | 1.05 | {0.11} | 50.0 | 130.0 | 136.3{13.9} | 520 | ||
| SSWY | 30 | ||||||||
| 35 | 21 | 8.79 | {0.90} | 8.8 | 22.8 | 200.1{20.4} | 315 | ||
| 40 | 21 | 7.69 | {0.78} | 10.0 | 26.0 | 200.1{20.4} | 320 | ||
| 45 | 21 | 6.84 | {0.70} | 11.3 | 29.3 | 200.1{20.4} | 330 | ||
| 50 | 21 | 6.15 | {0.63} | 12.5 | 32.5 | 200.1{20.4} | 340 | ||
| 55 | 21 | 5.59 | {0.57} | 13.8 | 35.8 | 200.1{20.4} | 350 | ||
| 60 | 21 | 5.13 | {0.52} | 15.0 | 39.0 | 200.1{20.4} | 365 | ||
| 65 | 21 | 4.73 | {0.48} | 16.2 | 42.3 | 200.1{20.4} | 375 | ||
| 70 | 21 | 4.40 | {0.45} | 17.5 | 45.5 | 200.1{20.4} | 385 | ||
| 75 | 21 | 4.10 | {0.42} | 18.8 | 48.8 | 200.1{20.4} | 395 | ||
| 80 | 21 | 3.85 | {0.39} | 20.0 | 52.0 | 200.1{20.4} | 410 | ||
| 90 | 21 | 3.42 | {0.35} | 22.5 | 58.5 | 200.1{20.4} | 425 | ||
| 100 | 21 | 3.08 | {0.31} | 25.0 | 65.0 | 200.1{20.4} | 470 | ||
| 110 | 21 | 2.80 | {0.29} | 27.5 | 71.5 | 200.1{20.4} | 490 | ||
| 120 | 21 | 2.56 | {0.26} | 30.0 | 78.0 | 200.1{20.4} | 500 | ||
| 125 | 21 | 2.46 | {0.25} | 31.2 | 81.3 | 200.1{20.4} | 510 | ||
| 130 | 21 | 2.37 | {0.24} | 32.5 | 84.5 | 200.1{20.4} | 520 | ||
| 140 | 21 | 2.20 | {0.22} | 35.0 | 91.0 | 200.1{20.4} | 540 | ||
| 150 | 21 | 2.05 | {0.21} | 37.5 | 97.5 | 200.1{20.4} | 560 | ||
| 160 | 21 | 1.92 | {0.20} | 40.0 | 104.0 | 200.1{20.4} | 570 | ||
| 170 | 21 | 1.81 | {0.18} | 42.5 | 110.5 | 200.1{20.4} | 595 | ||
| 175 | 21 | 1.76 | {0.18} | 43.8 | 113.8 | 200.1{20.4} | 605 | ||
| 180 | 21 | 1.71 | {0.17} | 45.0 | 117.0 | 200.1{20.4} | 615 | ||
| 190 | 21 | 1.62 | {0.17} | 47.5 | 123.5 | 200.1{20.4} | 630 | ||
| 200 | 21 | 1.54 | {0.16} | 50.0 | 130.0 | 200.1{20.4} | 655 | ||
| 250 | 21 | 1.23 | {0.13} | 62.5 | 162.5 | 200.1{20.4} | 730 | ||
| 300 | 21 | 1.03 | {0.10} | 75.0 | 195.0 | 200.1{20.4} | 780 | ||
| Code No. | d | Spring constant | ℓmin Solid height |
F＝L×65％ | @/P （1～19P） |
||||
| Code | D | L | N/mm | {kgf/mm} | Fmm | Load N{kgf} |
|||
| SSWY | 37 | ||||||||
| 40 | 26 | 11.32 | {1.15} | 10.0 | 26.0 | 294.2{30.0} | 415 | ||
| 45 | 26 | 10.06 | {1.03} | 11.3 | 29.3 | 294.2{30.0} | 430 | ||
| 50 | 26 | 9.05 | {0.92} | 12.5 | 32.5 | 294.2{30.0} | 445 | ||
| 55 | 26 | 8.23 | {0.84} | 13.8 | 35.8 | 294.2{30.0} | 460 | ||
| 60 | 26 | 7.54 | {0.77} | 15.0 | 39.0 | 294.2{30.0} | 470 | ||
| 65 | 26 | 6.96 | {0.71} | 16.2 | 42.3 | 294.2{30.0} | 485 | ||
| 70 | 26 | 6.47 | {0.66} | 17.5 | 45.5 | 294.2{30.0} | 500 | ||
| 75 | 26 | 6.03 | {0.62} | 18.8 | 48.8 | 294.2{30.0} | 520 | ||
| 80 | 26 | 5.66 | {0.58} | 20.0 | 52.0 | 294.2{30.0} | 540 | ||
| 90 | 26 | 5.03 | {0.51} | 22.5 | 58.5 | 294.2{30.0} | 560 | ||
| 100 | 26 | 4.53 | {0.46} | 25.0 | 65.0 | 294.2{30.0} | 580 | ||
| 110 | 26 | 4.11 | {0.42} | 27.5 | 71.5 | 294.2{30.0} | 600 | ||
| 120 | 26 | 3.77 | {0.38} | 30.0 | 78.0 | 294.2{30.0} | 620 | ||
| 130 | 26 | 3.48 | {0.36} | 32.5 | 84.5 | 294.2{30.0} | 650 | ||
| 140 | 26 | 3.23 | {0.33} | 35.0 | 91.0 | 294.2{30.0} | 670 | ||
| 150 | 26 | 3.02 | {0.31} | 37.5 | 97.5 | 294.2{30.0} | 690 | ||
| 160 | 26 | 2.83 | {0.29} | 40.0 | 104.0 | 294.2{30.0} | 705 | ||
| 170 | 26 | 2.66 | {0.27} | 42.5 | 110.5 | 294.2{30.0} | 730 | ||
| 180 | 26 | 2.51 | {0.26} | 45.0 | 117.0 | 294.2{30.0} | 755 | ||
| 190 | 26 | 2.38 | {0.24} | 47.5 | 123.5 | 294.2{30.0} | 780 | ||
| 200 | 26 | 2.26 | {0.23} | 50.0 | 130.0 | 294.2{30.0} | 810 | ||
| 225 | 26 | 2.01 | {0.21} | 56.2 | 146.3 | 294.2{30.0} | 880 | ||
| 250 | 26 | 1.81 | {0.18} | 62.5 | 162.5 | 294.2{30.0} | 960 | ||
| 275 | 26 | 1.65 | {0.17} | 68.8 | 178.8 | 294.2{30.0} | 1030 | ||
| 300 | 26 | 1.51 | {0.15} | 75.0 | 195.0 | 294.2{30.0} | 1100 | ||
| SSWY | 42 | ||||||||
| 50 | 31 | 12.07 | {1.23} | 12.5 | 32.5 | 392.3{40.0} | 490 | ||
| 60 | 31 | 10.06 | {1.03} | 15.0 | 39.0 | 392.3{40.0} | 510 | ||
| 70 | 31 | 8.62 | {0.88} | 17.5 | 45.5 | 392.3{40.0} | 535 | ||
| 80 | 31 | 7.54 | {0.77} | 20.0 | 52.0 | 392.3{40.0} | 560 | ||
| 90 | 31 | 6.71 | {0.68} | 22.5 | 58.5 | 392.3{40.0} | 585 | ||
| 100 | 31 | 6.04 | {0.62} | 25.0 | 65.0 | 392.3{40.0} | 610 | ||
| 110 | 31 | 5.49 | {0.56} | 27.5 | 71.5 | 392.3{40.0} | 640 | ||
| 120 | 31 | 5.03 | {0.51} | 30.0 | 78.0 | 392.3{40.0} | 670 | ||
| 130 | 31 | 4.64 | {0.47} | 32.5 | 84.5 | 392.3{40.0} | 705 | ||
| 140 | 31 | 4.31 | {0.44} | 35.0 | 91.0 | 392.3{40.0} | 745 | ||
| 150 | 31 | 4.02 | {0.41} | 37.5 | 97.5 | 392.3{40.0} | 780 | ||
| 160 | 31 | 3.77 | {0.38} | 40.0 | 104.0 | 392.3{40.0} | 815 | ||
| 170 | 31 | 3.55 | {0.36} | 42.5 | 110.5 | 392.3{40.0} | 850 | ||
| 180 | 31 | 3.35 | {0.34} | 45.0 | 117.0 | 392.3{40.0} | 885 | ||
| 190 | 31 | 3.18 | {0.32} | 47.5 | 123.5 | 392.3{40.0} | 910 | ||
| 200 | 31 | 3.02 | {0.31} | 50.0 | 130.0 | 392.3{40.0} | 940 | ||
| 225 | 31 | 2.68 | {0.27} | 56.2 | 146.3 | 392.3{40.0} | 1050 | ||
| 250 | 31 | 2.41 | {0.25} | 62.5 | 162.5 | 392.3{40.0} | 1260 | ||
| 275 | 31 | 2.19 | {0.22} | 68.8 | 178.8 | 392.3{40.0} | 1350 | ||
| 300 | 31 | 2.01 | {0.21} | 75.0 | 195.0 | 392.3{40.0} | 1430 | ||
- Load calculation method:Load=Spring constant×Deflection
(kgf=N×0.101972)

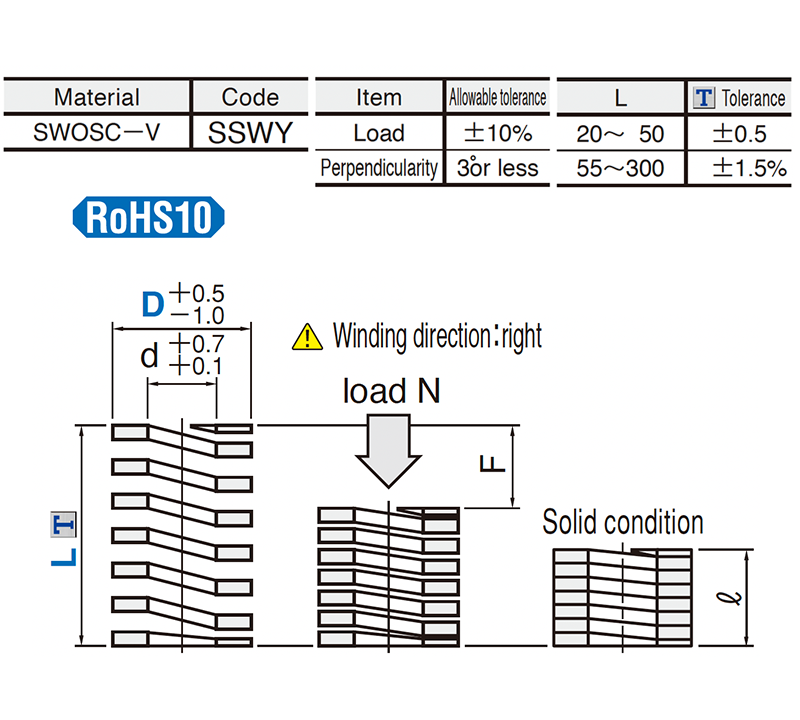

- The solid height values are reference only
- Operation frequency:1 million times(allowable deflection:L×65%)
- 300,000 times(allowable deflection:L×70%)
