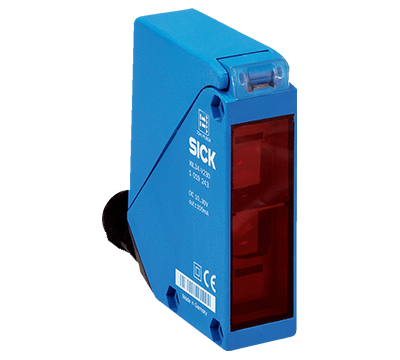

Compact Photoelectric Sensors SICK W34 WL34-B430
Features
Mechanics/electronics
Safety-related parameters
Classifications
Features
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Photoelectric retro-reflective sensor, Dual lens |
| Dimensions (W x H x D) | 27 mm x 92 mm x 70 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.03 m ... 22 m 1) |
| Sensing range | 0.03 m ... 15 m 1) |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 250 mm (15 m) |
| Wave length | 660 nm |
| Adjustment | Potentiometer |
- 1) Reflector PL80A.
- 2) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 50 mA |
| Switching output |
NPN PNP |
| Switching mode |
Light switching Dark switching |
| Switching mode selector | Selectable via PNP/NPN selector, selectable via light/dark selector |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 500 µs 3) |
| Switching frequency | 1,000 Hz 4) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection |
A 5) C 6) D 7) |
| Protection class | II 8) |
| Weight | 140 g |
| Polarisation filter | ✔ |
| Housing material | Plastic, ABS |
| Enclosure rating | IP67 |
| Test input sender off | TE to 0 V |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
- 1) Limit values.
- 2) May not exceed or fall below Uv tolerances.
- 3) Signal transit time with resistive load.
- 4) With light/dark ratio 1:1.
- 5) A = VS connections reverse-polarity protected.
- 6) C = interference suppression.
- 7) D = outputs overcurrent and short-circuit protected.
- 8) Reference voltage: 50 V DC.
Safety-related parameters
| MTTFD | 834 years |
| DCavg | 0 % |
Classifications
| ECl@ss 5.0 | 27270902 |
| ECl@ss 5.1.4 | 27270902 |
| ECl@ss 6.0 | 27270902 |
| ECl@ss 6.2 | 27270902 |
| ECl@ss 7.0 | 27270902 |
| ECl@ss 8.0 | 27270902 |
| ECl@ss 8.1 | 27270902 |
| ECl@ss 9.0 | 27270902 |
| ECl@ss 10.0 | 27270902 |
| ECl@ss 11.0 | 27270902 |
| ETIM 5.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| UNSPSC 16.0901 | 39121528 |
