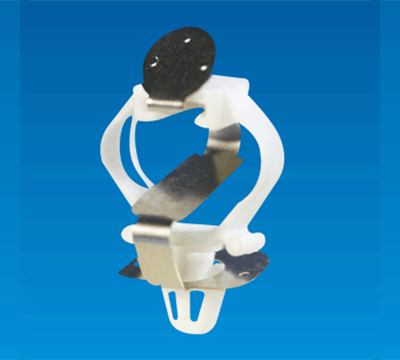

CONDUCTIVE SUPPORT CQA-10

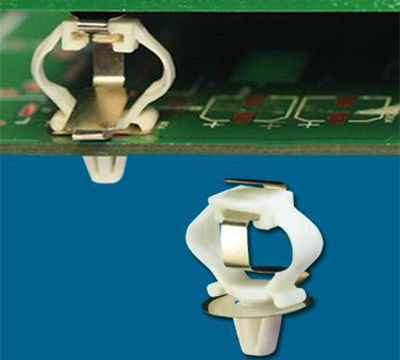

Conductive Support is setted up between PCB and PCB, it's like a pillar.
CONDUCTIVE SUPPORT CQA-10
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- MATERIAL: PHOSPHOR BRONZE
- PLATING: NICKEL

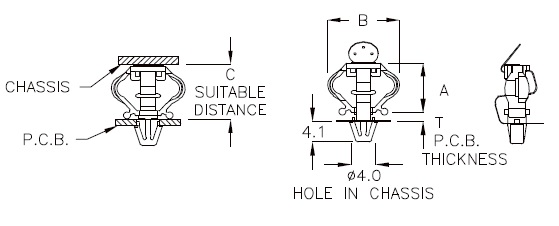

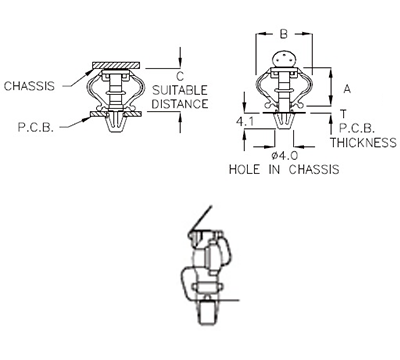

| PART NO | A | B | T P.C.B THICKNESS |
C SUITABLE DISTANCE |
PACKAGE |
|---|---|---|---|---|---|
| CQA-10 | 10.0 | 14.8 | 1.2~1.6 | 7.0~9.0 | 1000 |
