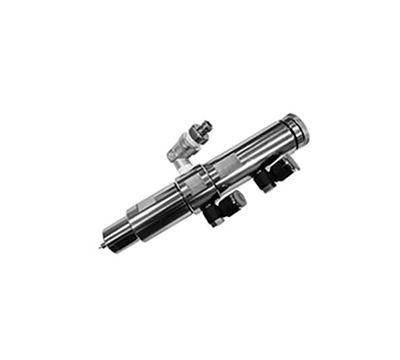

Conformal Coating Valve 500CC
Features
- Precision control spray area, also can do the small patterns.
- Non-contact dot, line dispensing or spraying is selectable according to an individual application.
- Specified controller enables high-speed response in combination with Solenoid valve.
Specification
| Model | 500CC |
|---|---|
| Maximum Dose | 8 ℓ / min |
| Viscosity Range | 1~ 1,000 cps |
| Operating Air Pressure | 5 kgf / ㎠ |
| Maximum Fluid Charge Pressure | 10kgf / ㎠ |
| Maximum Number of Cycles | 240 times / min |
| Air Operating Port | PT 1/8” |
| Material of Dosing Part | SUS 303 |
| Material of Driving Part | SUS 303 |
| Weight | 285 g |
