Facility Equipment

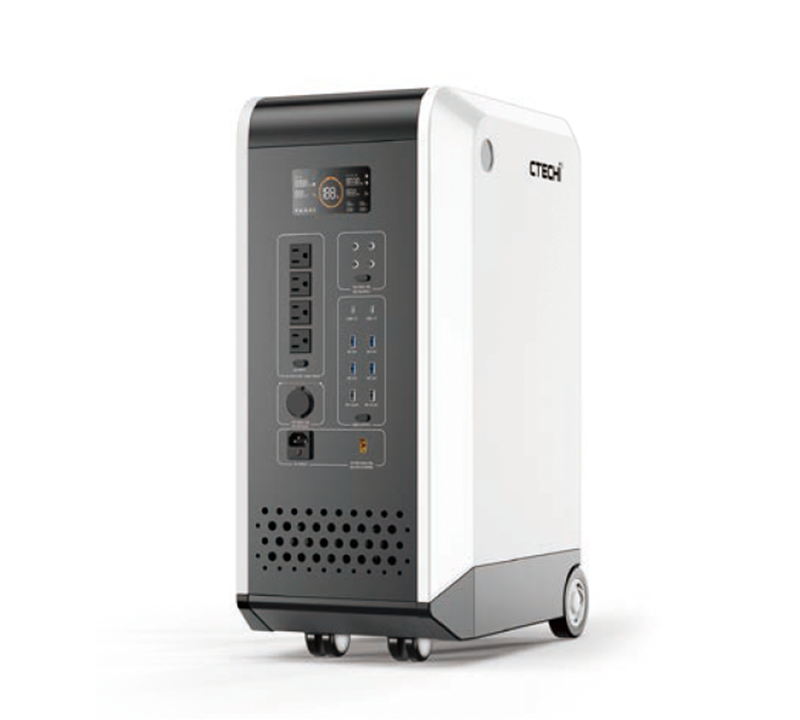

CTECHi Quick Charge Technology with Bidirectional Inverter
- PT3600 Constant Power 3600W / Peak Power 5800W
Specifications
| Battery Type | LiFePO4 |
| Battery | 2880Wh / 4800Wh / 5184Wh |
| Cycle Life | 2000 Times |
| USB Output | 2*5V/2.4A 12W Max.,4*QC3.0 5V/3.6A，9V/2.5A，12V/2A 24W Max. 5V/2.4A 12W Max. when two ports are used at the same time |
| USB-C Output | 2*PD&QC3.0 5V/3A，9V/3A，12V/3A，15V/2A 30W Max. |
| DC Output | 4*12V/10A 120W Max. |
| CIG Output | 1*12V/10A 120W Max. |
| AC Output | 100V~120V/50Hz 60Hz 3600W Peak Power: 5000W 220V~240V/50Hz 60Hz 3600W Peak Power: 5000W |
| Input | AC 1200W Max. /Car Cigar Port/Solar Panel 12-100V 20A Max. 1000W (XT60) |
| Weight | 66kg |
| Size | 480 x 278 x 680mm, 18.9 x 10.94 x 26.77inch |
| Charging Temperature | 0℃~40℃ |
| Discharge Temperature | -10~ 40℃ |
| Authentication certificate | CE、FCC、UL、PSE、METI、RoHs、UN38. 3、MSDS、REACH |
