Dispensing

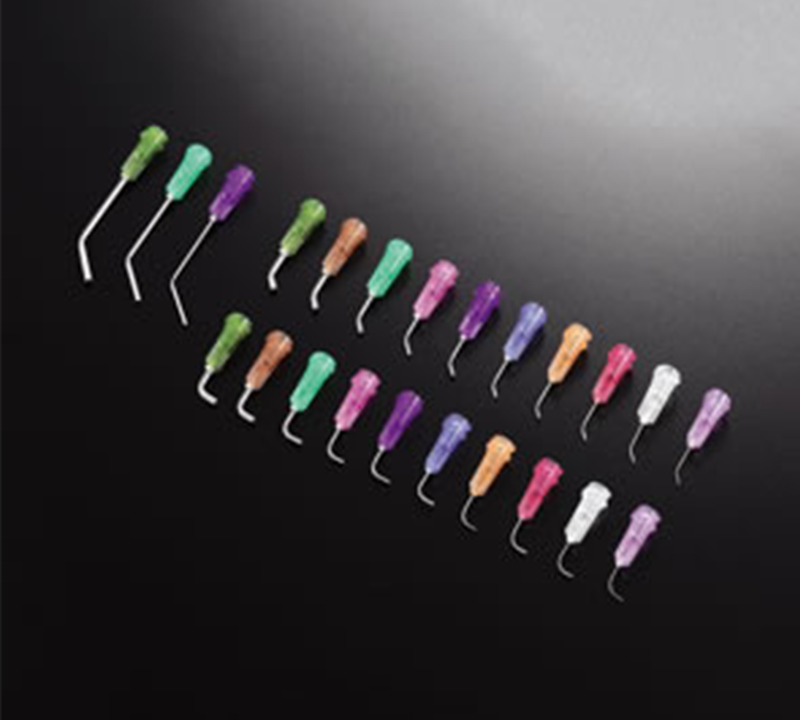

Curve needle Musashi CPN

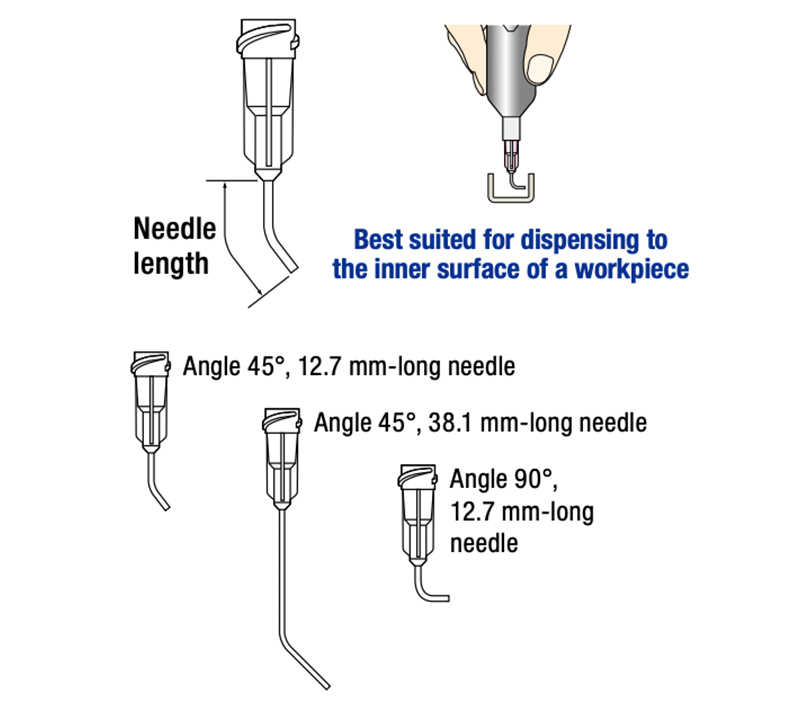

Best suited for dispensing to the inner surface of a workpiece
Bending processing with excellent flowability implements stable dispensing. A variety of curve needles in two types of angles support a wide range of applications. Double thread screw design allows the needle to be installed securely on the syringe.
Bending processing with excellent flowability implements stable dispensing. A variety of curve needles in two types of angles support a wide range of applications. Double thread screw design allows the needle to be installed securely on the syringe.
- Needle material: Stainless steel
- Needle base material: Polypropylene
- CPN-[]G-A45
| Gauge | Angle 45° | Angle 90° | Needle OD (φ) | Needle ID (φ) | Color | Minimum Order Quantity |
|
|---|---|---|---|---|---|---|---|
| Needle length 12.7 mm | Needle length 38.1 mm | Needle length 12.7 mm | |||||
| Model | Model | Model | |||||
| 14 | CPN-14G-A45 | CPN-14G-B45 | CPN-14G-A90 | 1.83 | 1.52 | Dark green | 50 |
| 15 | CPN-15G-A45 | CPN-15G-B45 | CPN-15G-A90 | 1.65 | 1.37 | Brown | 50 |
| 18 | CPN-18G-A45 | CPN-18G-B45 | CPN-18G-A90 | 1.27 | 0.84 | Light green | 50 |
| 20 | CPN-20G-A45 | — | CPN-20G-A90 | 0.91 | 0.58 | Pink | 50 |
| 21 | CPN-21G-A45 | CPN-21G-B45 | CPN-21G-A90 | 0.81 | 0.51 | Purple | 50 |
| 22 | CPN-22G-A45 | — | CPN-22G-A90 | 0.71 | 0.41 | Blue | 50 |
| 23 | CPN-23G-A45 | — | CPN-23G-A90 | 0.64 | 0.33 | Orange | 50 |
| 25 | CPN-25G-A45 | — | CPN-25G-A90 | 0.51 | 0.25 | Rose | 50 |
| 27 | CPN-27G-A45 | — | CPN-27G-A90 | 0.41 | 0.20 | White | 50 |
| 30 | CPN-30G-A45 | — | CPN-30G-A90 | 0.30 | 0.15 | Light purple | 50 |
