Cylindrical Photoelectric Sensors SICK V18
Type:VL18-3P3840
Part No.:6013635
Part No.:6013635

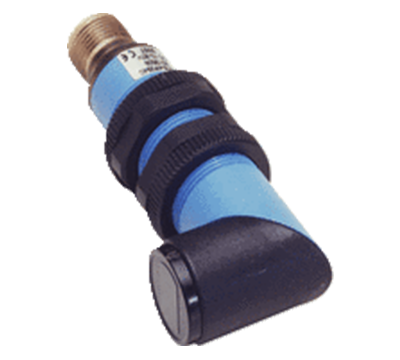

Cylindrical Photoelectric Sensors SICK V18 VL18-3P3840
Features
Mechanics/electronics
Classifications
Features
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Photoelectric retro-reflective sensor |
| Dimensions (W x H x D) | 18 mm x 18 mm x 75 mm |
| Housing design (light emission) | Cylindrical |
| Housing length | 75 mm |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Radial |
| Sensing range max. | 0.05 m ... 3.7 m 1) |
| Sensing range | 0.05 m ... 3 m 1) |
| Focus | Approx. 2.8° |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 150 mm (3 m) |
| Angle of dispersion | Approx. 2.8° |
| Adjustment | None |
- 1) Reflector C110A.
- 2) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Dark switching |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 2 ms 4) |
| Switching frequency | 250 Hz 5) |

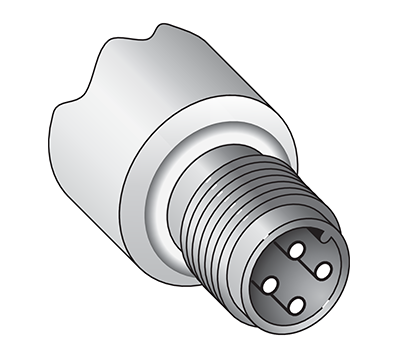

| Connection type | Male connector M12, 4-pin |
| Circuit protection |
A 6) B 7) C 8) D 9) |
| Protection class | III |
| Weight | 100 g |
| Polarisation filter | ✔ |
| Housing material | Plastic, PBT/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +70 °C |
| UL File No. | NMFT2.E175606 |
- 1) Limit values.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) Signal transit time with resistive load.
- 5) With light/dark ratio 1:1.
- 6) A = VS connections reverse-polarity protected.
- 7) B = inputs and output reverse-polarity protected.
- 8) C = interference suppression.
- 9) D = outputs overcurrent and short-circuit protected.
