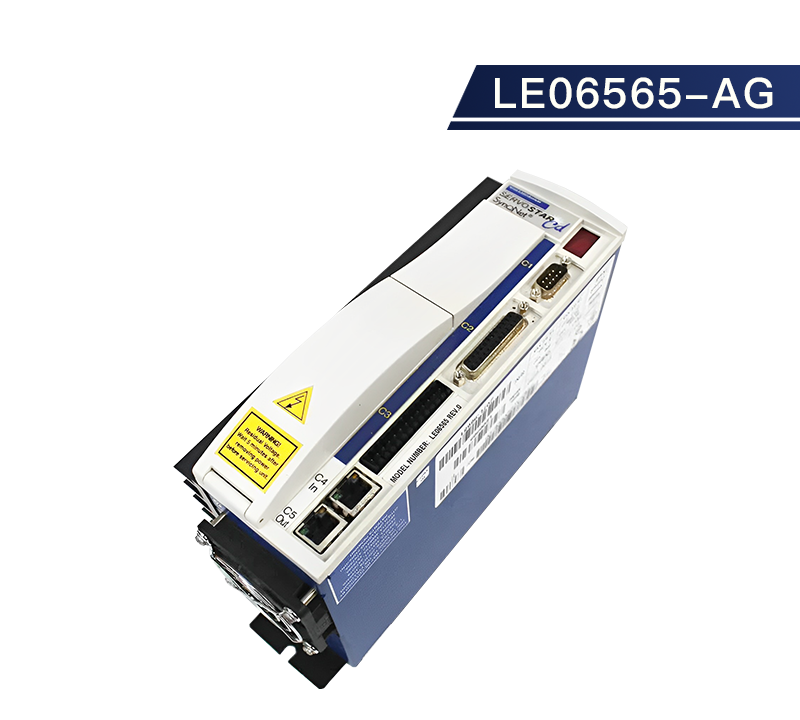

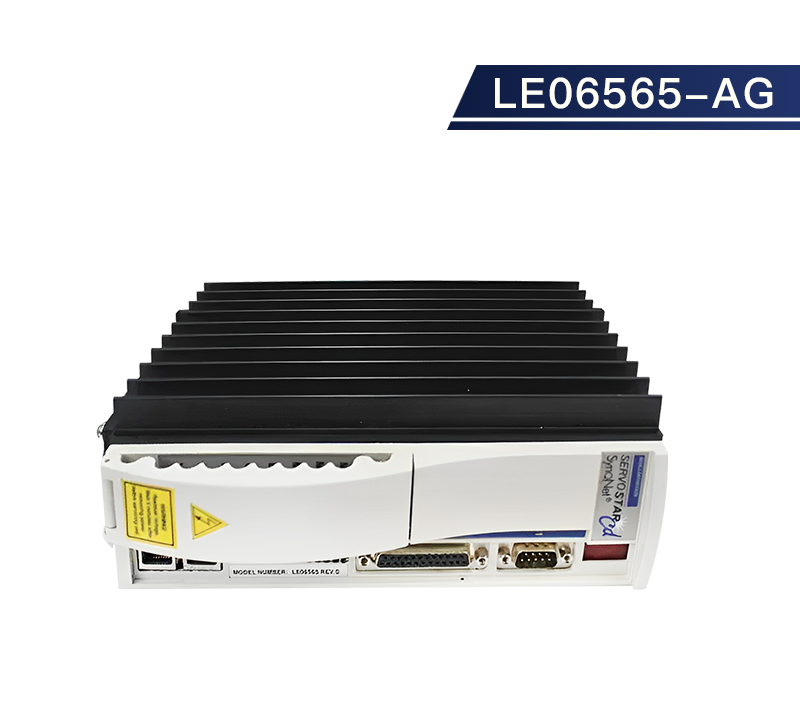

Danaher Motion / Kollmorgen LE06565-AG SERVOSTAR CD SynqNet Driver
- Incremental Encoder
- Torque Updates Up to 16 kHz
- 5V to 24V Operation
- Two Bi-Directional RS422 I/Os
- Two Analog Inputs
Overview
The Kollmorgen / Danaher Motion SERVOSTAR CD SynqNet Driver is a SynqNet servo drive based on the field-proven range of SERVOSTAR CD drives. The power stage is the same as that of the CD, while the control stage is a dedicated SynqNet design. The CD SynqNet is designed as a Torque drive, with torque command being provided at high servo update rates from the SynqNet controller. Extensive I/O support is provided, with both function-specific inputs, such as Limit Switches, Home and Brake, and numerous general purpose I/Os. The CD SynqNet provides divide-by-N capability, enabling it to be programmed to generate an output pulse every N counts of the drive's encoder counter register.
SynqNet is a high performance, all-digital synchronous network designed for multi- axis motion control applications. The physical layer of SynqNet is based on IEEE 802.3 standards for 100BASE-TX, the physical layer of Ethernet, while the data link and application layers of SynqNet are specifically designed for motion control applications. The 100BASE-TX media system is based on specifications published in the ANSI TP-PMD physical media standard. The 100BASE- TX system operates over two pairs of wires, one pair for 'receive' data signals and the other pair for 'transmit' data signals.
Description
This Danaher Motion / Kollmorgen SERVOSTAR CD SynqNet Driver is new from surplus stock.
Part Number: LE06565-AG
Version: 3 Phase
Configuration:
Specifications
Danaher Motion / Kollmorgen LE06565-AG SERVOSTAR CD SynqNet Driver Specs
The Kollmorgen / Danaher Motion SERVOSTAR CD SynqNet Driver is a SynqNet servo drive based on the field-proven range of SERVOSTAR CD drives. The power stage is the same as that of the CD, while the control stage is a dedicated SynqNet design. The CD SynqNet is designed as a Torque drive, with torque command being provided at high servo update rates from the SynqNet controller. Extensive I/O support is provided, with both function-specific inputs, such as Limit Switches, Home and Brake, and numerous general purpose I/Os. The CD SynqNet provides divide-by-N capability, enabling it to be programmed to generate an output pulse every N counts of the drive's encoder counter register.
SynqNet is a high performance, all-digital synchronous network designed for multi- axis motion control applications. The physical layer of SynqNet is based on IEEE 802.3 standards for 100BASE-TX, the physical layer of Ethernet, while the data link and application layers of SynqNet are specifically designed for motion control applications. The 100BASE-TX media system is based on specifications published in the ANSI TP-PMD physical media standard. The 100BASE- TX system operates over two pairs of wires, one pair for 'receive' data signals and the other pair for 'transmit' data signals.
Description
This Danaher Motion / Kollmorgen SERVOSTAR CD SynqNet Driver is new from surplus stock.
Part Number: LE06565-AG
Version: 3 Phase
Configuration:
- Input Voltage: 115/230 VAC
- Input Current: 10/7.8 Amps/Phase
- Input Power at 230 VAC: 1.8/2.8 KVA
- Output Voltage: 230 VAC
- Output Current: 6 Amps/Phase
- Output Power at 230 VAC: 1.4/2.2 KVA
Specifications
Danaher Motion / Kollmorgen LE06565-AG SERVOSTAR CD SynqNet Driver Specs
| Manufacturers | Danaher Motion / Kollmorgen |
| Model | LE06565-AG |
| Condition | New From Surplus Stock |
