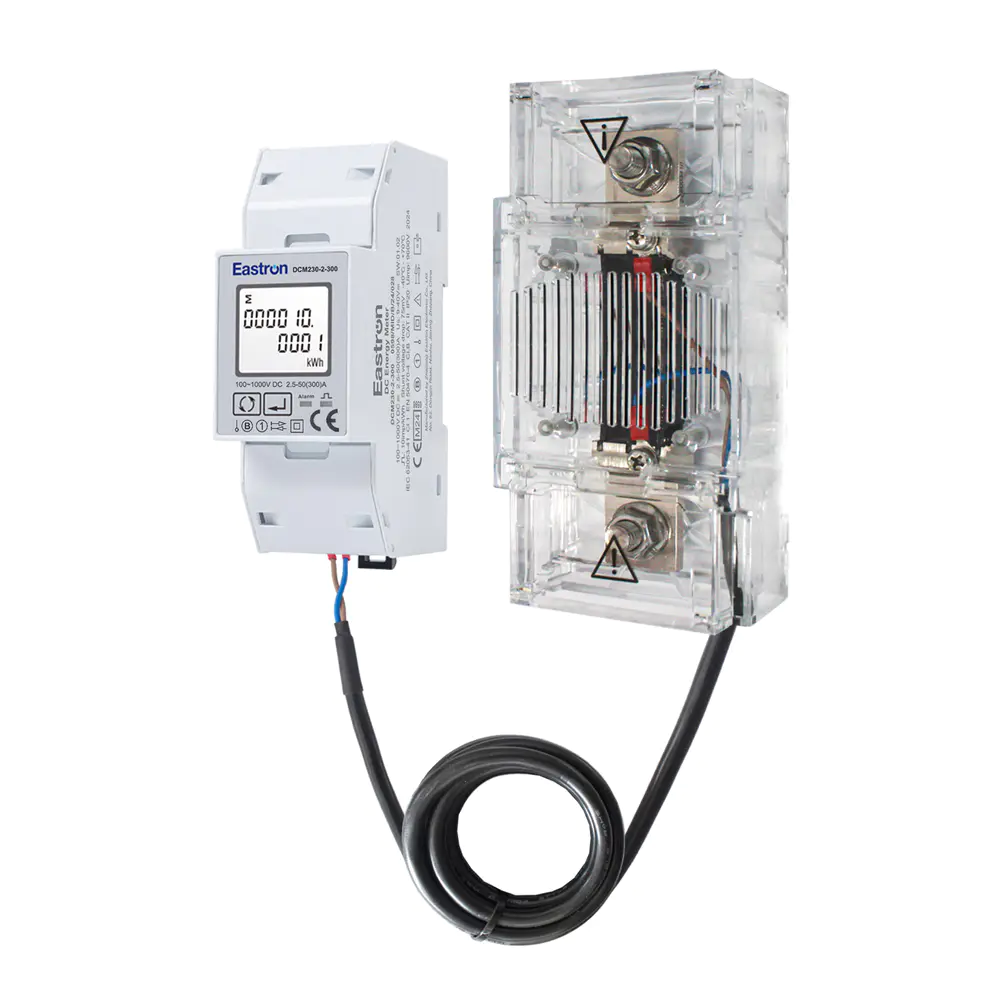

Dc Energy Meter For Ev Chargers Eastron DCM230-2-300
- MID Approved
- Measures kWh, W, V, A ect.
- Bi-directional Measurement IMP & EXP
- Voltage Input 100-1000V DC
- RS485 Modbus Communication
- DC Shunt Connection
- Class 1.0 / B Accuracy
- Max. Current 300A
- Package Includes 1 x DC Shunt
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on DC energy system (1P+N) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
1% of range maximum |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Input & Output |
||
|
Input-Voltage |
Range |
100-1000V DC |
|
Power consumption |
≤0.5W |
|
|
Input-Current |
Range |
1.5-30(150)A / 2.0-40(200)A / 2.5-50(300)A / 2.5-50(400)A / 2.5-50(600)A |
|
Shunt |
75mV (default) |
|
|
Power consumption |
≤72W / 48W / 36W / 24W / 18W |
|
|
Output |
DCM230 |
Pulse Output + RS485 Modbus |
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~19200bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
