Sensor
Specifications
|
Model |

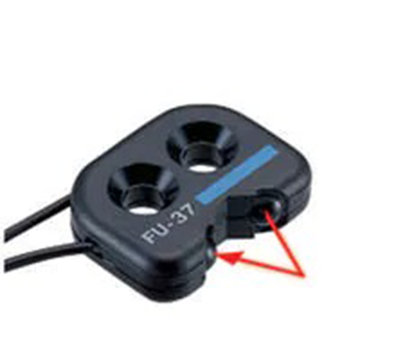

FU-37*1 |
|||
|
Beam emitting direction |
Side |
|||
|
Fibre unit length |
2 m78.74" free-cut |
|||
|
Fibre unit diameter |
ø1.0×2 |
|||
|
Minimum bend radius |
R10 mm0.394" |
|||
|
Minimum detectable object |
Gold wire with a diameter of 0.005 mm0.0002" *2 |
|||
|
Repetition accuracy |
― |
|||
|
Environmental resistance |
Ambient temperature |
-40 to +70 °C -40 to 158 °F |
||
|
Weight |
Approx. 6 g |
|||
|
*1 For details on the detecting distance, see the fiber amplifier catalog. |
||||
