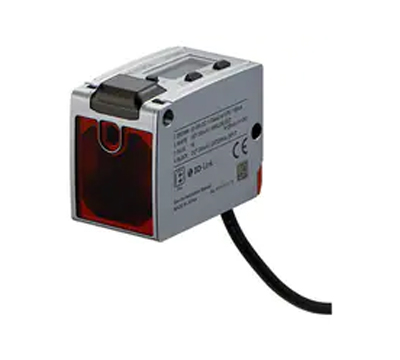

Detection Distance 5 M Cable Laser Class 2 LR-TB5000
*2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50.
*3 You can select the I/O from the following combinations.
Control output × 2, control output + external input
Control output + analog output (LR-TB5000/TB5000C/TB5000CL only)
External input + analog output (LR-TB5000/TB5000C/TB5000CL only)
(For details on the setting method, see the instruction manual.)
*4 IO-Link specification v.1.1/COM2 (38.4 kbps) is supported. You can download a setup file from the KEYENCE website (http://www.keyence.com).
If you are using the product in an environment in which you cannot download files over the Internet, contact your nearest KEYENCE office.
*5 150 mA or less(with load)
|
Model |
LR-TB5000 |
|||
|
Type |
Cable |
|||
|
Detectable distance |
60 to 5000 mm 2.36" to 196.85"*1 |
|||
|
Spot diameter |
Variable (use a spot diameter of 40 mm 1.57" or less) |
|||
|
Light source |
Type |
Red laser (660 nm) |
||
|
Laser class |
Class 2 laser product (IEC60825-1,FDA (CDRH) Part1040.10*2) |
|||
|
Mutual interference prevention function |
4 units (when using the interference prevention function) |
|||
|
Timer |
OFF/OFF delay/ON delay/One-shot |
|||
|
Response time |
1 ms/10 ms/25 ms/100 ms/1000 ms selectable |
|||
|
I/O |
Control output |
NPN open collector/PNP open collector selectable 30 VDC or less, 50 mA or less, residual voltage: 2 V or less, N.O./N.C. selectable *3*4 |
||
|
Analog output |
Current output/Voltage output selectable |
|||
|
Protection circuit |
Protection against reverse power connection, power supply surges, output overcurrent, reverse output connection, and output surge |
|||
|
Power voltage |
20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS |
|||
|
Current consumption |
50 mA or less (without load)*5 |
|||
|
Environmental resistance |
Enclosure rating |
IP65/IP67 (IEC60529) |
||
|
Ambient light |
Incandescent lamp/Sunlight: 10,0000 lux or less |
|||
|
Ambient temperature |
-20 to +55 °C -4 to 131 °F (No freezing) |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|||
|
Shock resistance |
1,000 m/s2, 6 times in each of the X, Y, and Z directions |
|||
|
Material |
Case: Zinc die cast (Nickel chrome plating), Indicator cover and buttons: PES, Lens cover and display: PMMA (scratch-resistant coating specifications), Cable bushing: PBT, Cable: PVC |
|||
|
Accompanying items |
Instruction manual, Laser warning and explanation labels |
|||
|
Weight |
Approx. 200 g (Including cable) |
|||
|
*1 The range for displayable distance is from 50 to 5200. |
||||
