Dispensing

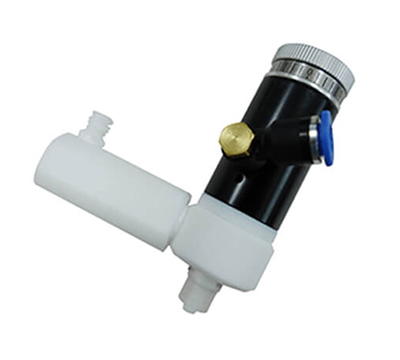

Diaphragm Valve 300DP
Features
- Economical, Precision dispense, easily operate.
- DV-300T, Diaphragm Needle Valve is a kind of pneumatic valve.
- DV-300T dispenses material which has viscosity of 10,000 cps or less.
- The Part which expose in liquid consists of inert materials (UPE), so it can be used to instant glue, electrolyte, UV glue, silicon oil, flux oil, solvent, paint, and so on. Low viscosity materials.
Specification
| Model | 300DP |
|---|---|
| Operating Air Pressure | 4.0 ~ 6.0 kgf / ㎠ ( usually 4.5 kgf / ㎠) |
| Material Delivery Pressure | Max 5.0 kgf / ㎠ |
| Maximum Number of Cycle | 500 cylces or more / min |
| Flux (KV value) | 0.3 ℓ /min |
| Material of Driving Part | Body : AL ( Hard coated, Black ); Piston : SUS303; Piston Seal : NBR |
| Material of Valve Head | UHMW-PE |
| Liquid Contacting Part | (option :Te on, PEEK, Acetal); Diaphragm : UHMW-PE |
| Material of Connecting Part | Air In PORT : ø4 urethane Hose; Material of inner port : PT1/8; Material of outer port : Luer Lock |
| Weight | 76 g |
