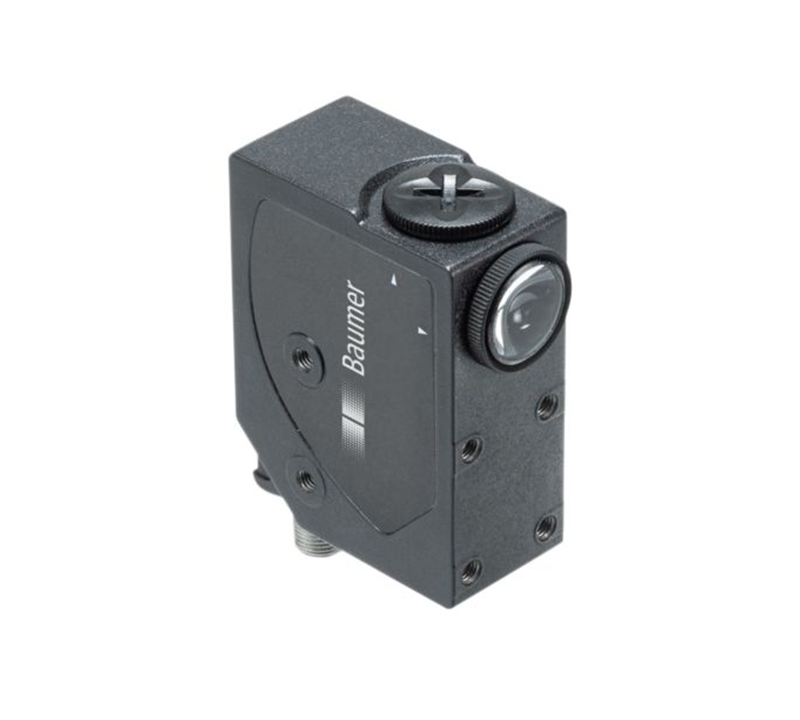

Diffuse contrast sensors Baumer OC60D.CC-NW1B.7AF
- Most accurate mark or color detection
- RGB LED
- Display for an easy set up
- Static or dynamic teach-in
- Connector rotatable to 5 positions
- Optional lenses for distances up to 40 mm
| General Data | |
|---|---|
| Type | Diffuse contrast sensor |
| Version | Display Optional color mode |
| Light source | LED red / green / blue |
| Sensing distance Tw | 9 mm ±3 mm |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Sensitivity adjustment | Teach-in |
| Distance to focus | 9 mm |
| Wave length | 465 nm 520 nm 630 nm |
| Beam type | Line, vertical |
| Beam height | 1.5 mm |
| Beam width | 5 mm |
| Electrical Data | |
| Response time / release time | < 0.016 ms < 0.1 ms (Color Mode) |
| Jitter | < 0.016 ms < 0.05 ms (Color Mode) |
| Voltage supply range +Vs | 10 VDC ... 30 VDC |
| Current consumption typ. | 35 mA (@ 24 VDC) |
| Voltage drop Vd | < 2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Width / diameter | 31.9 mm |
| Height / length | 60.2 mm |
| Depth | 79 mm |
| Type | Rectangular |
| Housing material | Aluminum |
| Front (optics) | Glass |
| Connection types | Connector M12 5 pin, rotatable |
| Ambient Conditions | |
| Protection class | IP 67 |
| Operating temperature | -10 … +55 °C |
| Storage temperature | -20 … +70 °C |
