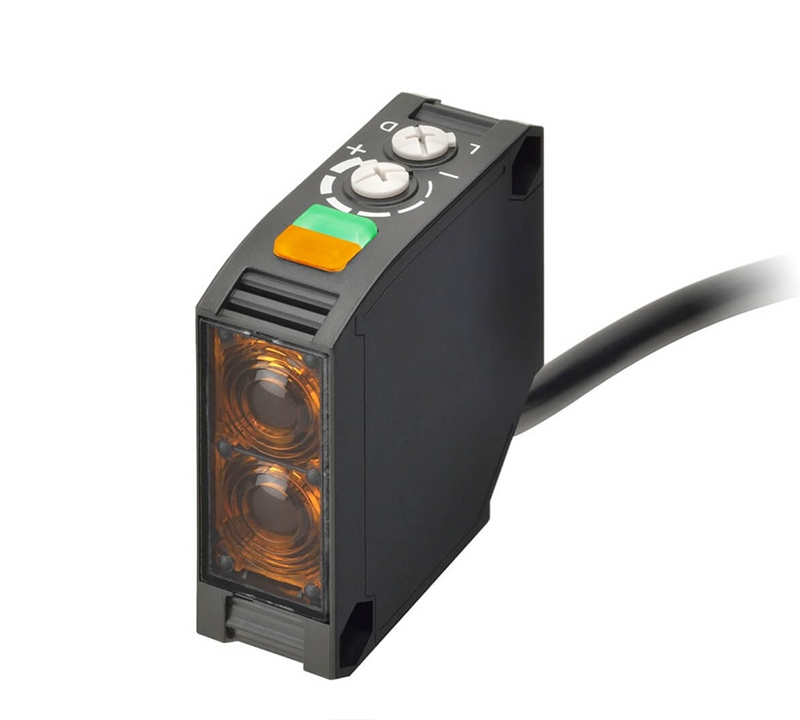

Diffuse Reflective Sensor Omron E3JK-DR11 2M OMI
Photoelectric sensor, square body, red LED, diffuse, 2.5 m, AC/DC, relay, L-ON/D-ON selectable, 2 m cable
| Shape | Cuboid |
| Sensing method | Diffuse reflective |
| Sensing distance | 2500 mm |
| Setting method | Manual adjustment |
| Connection method | Cable |
| Cable length | 2 m |
| Output type | Relay |
| Operation mode | Dark-ON, Light-ON |
| Response time | 20 ms |
| Material housing | ABS |
| Thread size | Other |
| Product Width (unpacked) | 18 mm |
| Product Height (unpacked) | 52 mm |
| Product Depth (unpacked) | 50 mm |
| Type of light | Polarity free red light |
| Power supply voltage | 24-240 V |
| Degree of protection (IP) | IP64 |
