Sensor

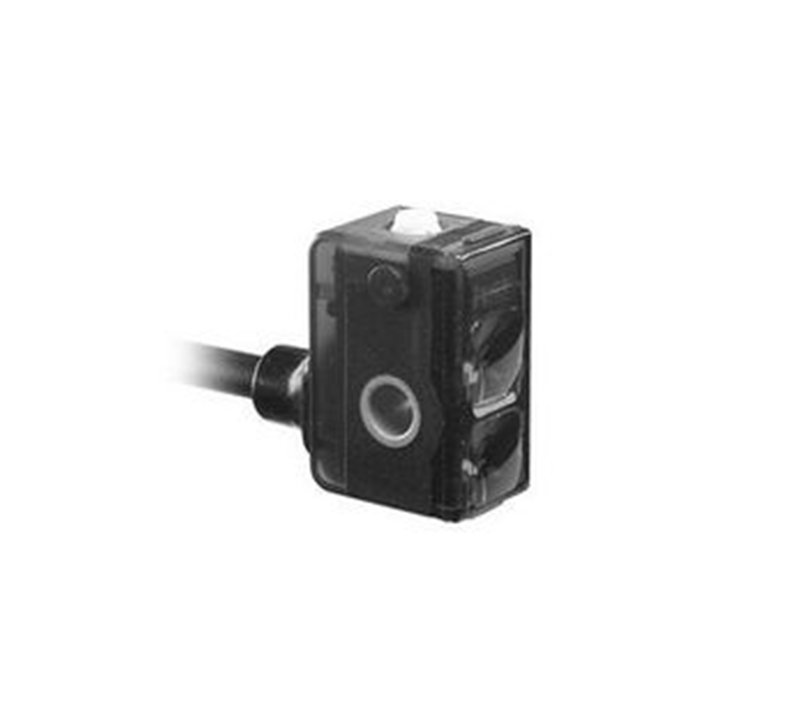

Diffuse sensors with background suppression Baumer FHCK 07P6901/KS35A
| general data |
| type |
background suppression |
| light source |
pulsed red LED |
| sensing distance Tw |
10 ... 60 mm |
| sensing range Tb (at Tw max.) |
2 ... 60 mm |
| sensing range Tb (at Tw min.) |
5 ... 10 mm |
| alignment / soiled lens indicator |
flashing light indicator |
| light indicator |
LED green |
| output indicator |
LED yellow |
| sensing distance adjustment |
Teach-in |
| wave length |
660 nm |
| suppression of reciprocal influence |
yes |
| electrical data |
| response time / release time |
< 0.5 ms |
| voltage supply range +Vs |
10 ... 30 VDC |
| current consumption max. (no load) |
25 mA |
| current consumption typ. |
20 mA |
| voltage drop Vd |
< 1.8 VDC |
| output function |
light / dark operate |
| output circuit |
PNP |
| output current |
< 100 mA |
| short circuit protection |
yes |
| reverse polarity protection |
yes |
| mechanical data |
| width / diameter |
8 mm |
| height / length |
16.2 mm |
| depth |
10.8 mm |
| type |
rectangular |
| housing material |
plastic (PMMA, MABS, PA) |
| front (optics) |
PMMA |
| connection types |
flylead connector M8 4 pin, L=200 mm |
| ambient conditions |
| operating temperature |
-20 ... +50 °C |
| protection class |
IP 65 |
