Sensor

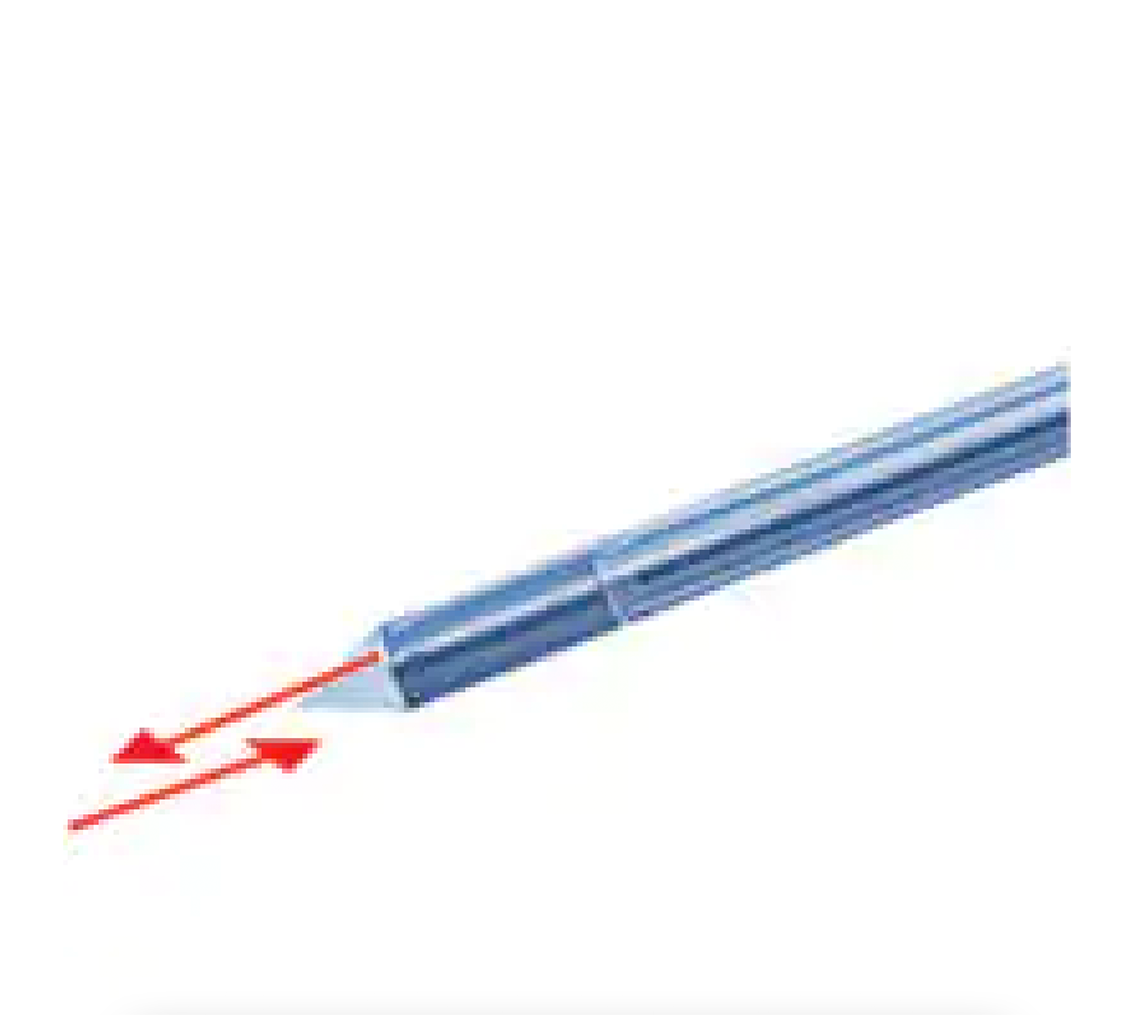

Digital Fiber Optic Sensor FU-93Z
|
Model |
FU-93Z |
|||
|
Type |
Reflective model fiber unit |
|||
|
Detecting method |
Wetted type |
|||
|
Fibre unit length |
2 m78.74" free-cut |
|||
|
Fibre unit diameter |
ø1.3×2 |
|||
|
Minimum bend radius |
Fluorocarbon polymer part : R40 mm1.575"*1 fiber part : R0.5 Tough-Flex |
|||
|
Environmental resistance |
Ambient temperature |
-40 to +50 °C -40 to 122 °F |
||
|
Weight |
Approx. 78 g |
|||
|
*1 The section 80 mm in length from the tip cannot be bent. |
||||
