Energy Meter & Current Transformer

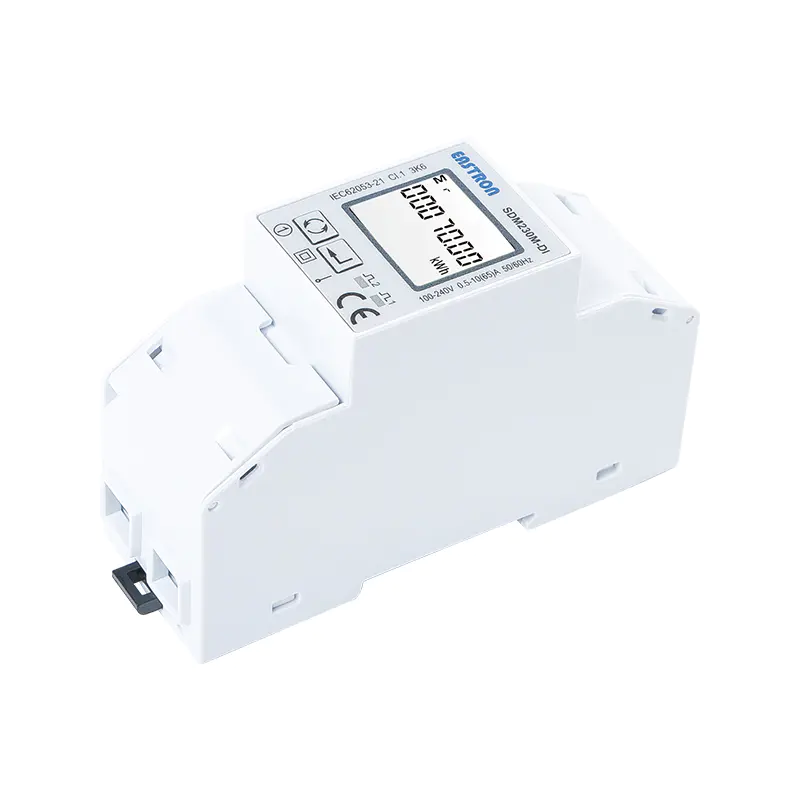

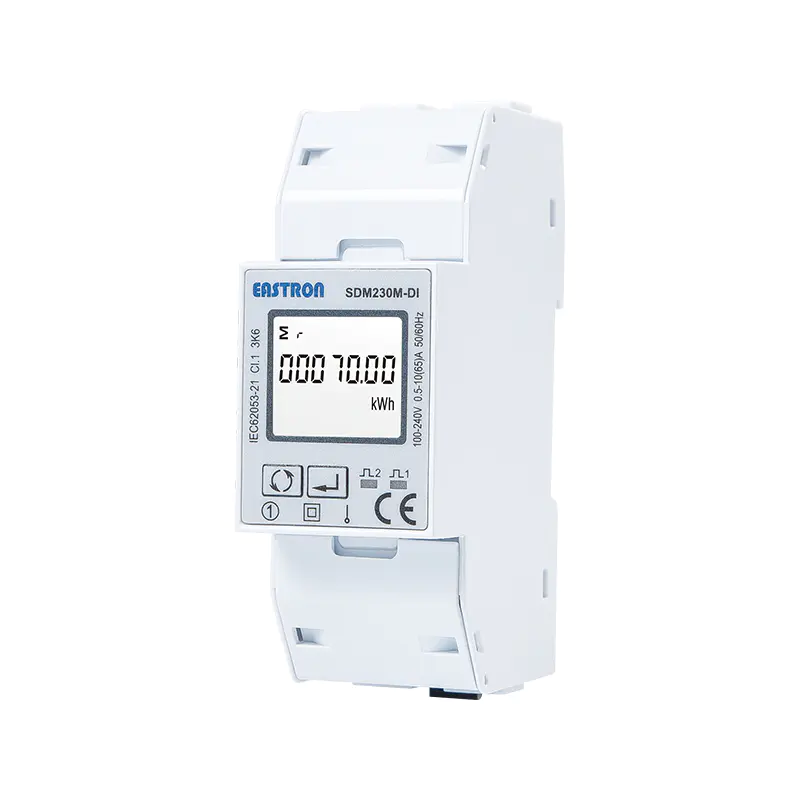

Digital Input Rs485 Modbus Din Rail Single Phase Mid Energy Meter Eastron SDM230-DI
- Multi-measurement: kWh,kVarh, W, Var, VA, V, A, PF, Hz, Max.DMD,etc.
- LCD with backlit
- 2 Pulse Output +Modbus
- Bi-directional Measurement
- Digital input
- Max. 100A Direct Load
- 2 Module 36mm Width
- MID approved
- 1P2W
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P+N) |
|
|
Measurement Accuracy |
Voltage |
|
|
Current |
±0.5% |
|
|
Frequency |
±0.2% |
|
|
Power Factor |
0.01 |
|
|
Active Power |
±1% |
|
|
Reactive Power |
±1% |
|
|
Apparent Power |
±1% |
|
|
Active Energy |
Class 0.5 IEC62053-22 Class C EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Input & Output |
|||
|
Input |
Current
|
Rated Current (Ib/Iref) |
10A |
|
Max Current(Imax.) |
100A |
||
|
Min Current(Imin.) |
0.15A |
||
|
Voltage |
Operation Voltage |
230V |
|
|
Output |
SDM230-P |
2 Pulse Output for imp/exp. energy |
|
|
SDM230-M |
2 Pulse Output + RS485 Modbus |
||
|
SDM230-MB-2T |
2 Pulse Output + M-bus EN13757 + 2 Tariffs (Dual Power Source) |
||
|
SDM230-2T |
2 Pulse Output + RS485 Modbus + 2 Tariffs (Dual Power Source) |
||
|
SDM230-DI |
2 Pulse Output + RS485 Modbus + Digital Input |
||
|
RS485 Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
2400bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
Response Time |
<100 mS |
|
M-Bus EN13757-3 Communications |
|
|
Communication Address |
1~250 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
300bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
