Sensor
|
Model |

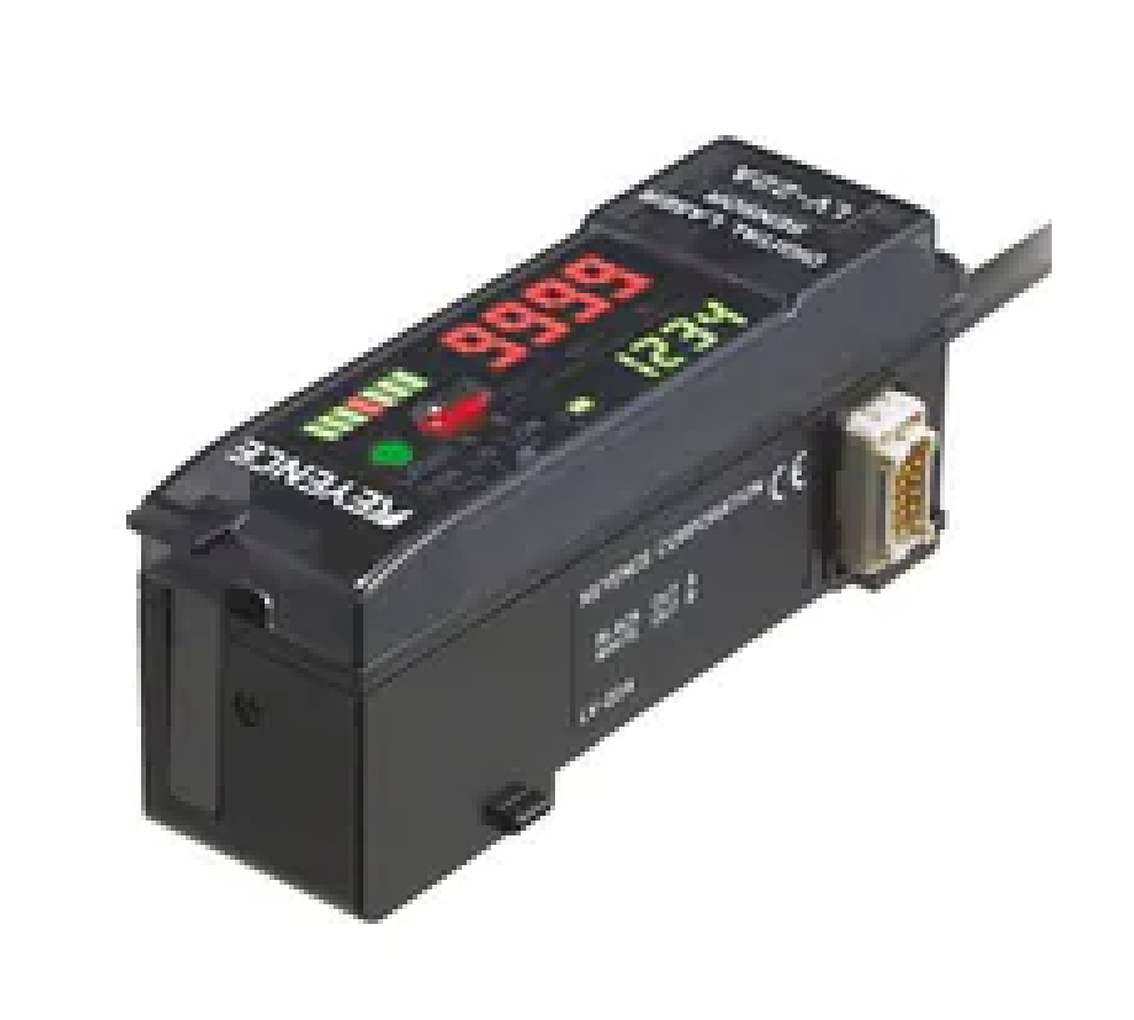

LV-22AP |
|||
|
Type |
PNP output |
|||
|
Main unit/expansion unit |
Expansion unit (1 line) |
|||
|
Control output |
PNP open-collector x 2 channels, 30 VDC max., max. 100 mA, residual voltage (1.0 V max.) |
|||
|
Response speed |
FINE : 80 µs , TURBO : 500 µs , SUPER , TURBO : 4 ms |
|||
|
Number of interference |
FINE : None , TURBO : 2 units , SUPER : 4 units |
|||
|
Protection circuit |
Reversed polarity protection, over-current protection, surge absorber |
|||
|
Unit expansion |
Up to 7 additional expansion units can be installed (8 units including the main unit), |
|||
|
Rating |
Power voltage |
12 to 24 VDC, Ripple (P-P) 10 % or less (For the LV-20A/22A/22AP, the power supply voltage is supplied from the main unit.) |
||
|
Power consumption |
1.5 W max. (125 mA max. for 12 V, 62.5 mA max. for 24 V) |
|||
|
Environmental resistance |
Ambient temperature |
-10 to +55 °C 14 to 131 °F (No freezing) *1 |
||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Material |
Main unit |
Polycarbonate |
||
|
Case |
||||
|
Weight |
Approx. 120 g |
|||
|
*1 When several units are connected, the ambient temperature requirement varies depending on the total number of units connected. |
||||
