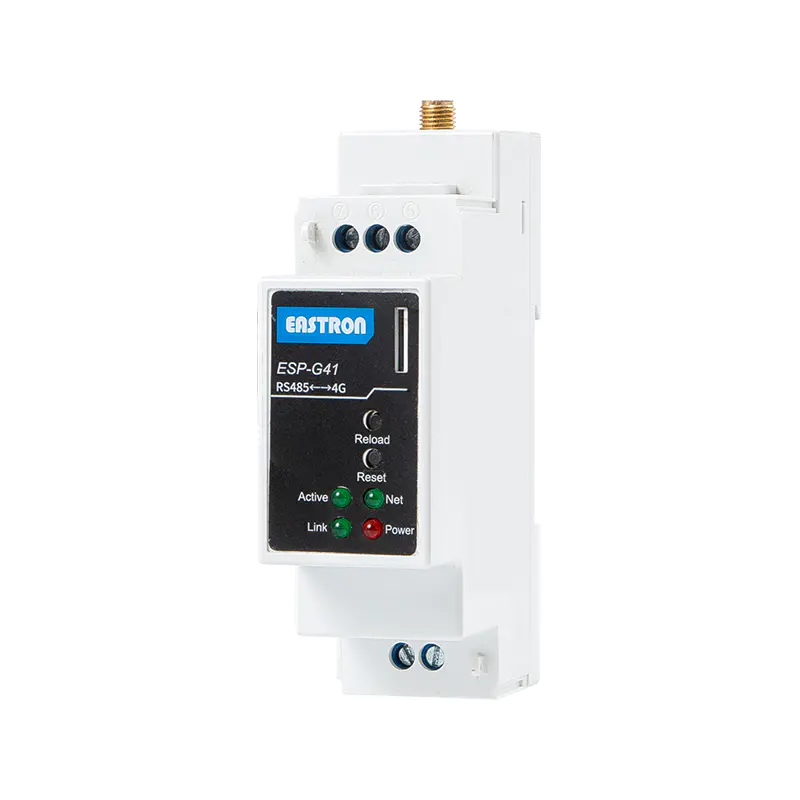

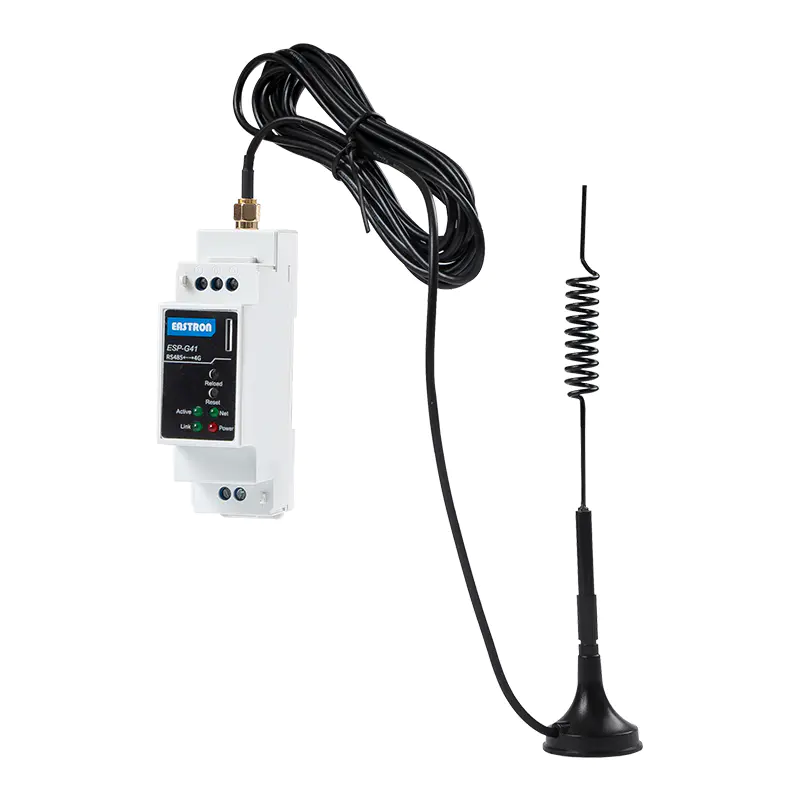

Din Rail Rs485 To 2g/3g/4g Converter For Iot Solutions Eastron ESP-G41
- Mini Size, Din Rail Mounting
- Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network, sub-type to support specific cellular network
- RS485 to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps
- Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data Cache
- Multiple Working Modes available
- IOTService Tool configuration
- Support SMS AT Command Configuration
| Product parameters | |
| Basic Frequency | 96MHz |
| Operating System | FreeRTOS |
| Interface Standard | RS485 |
| Transmit Power | LTE-TDD: Class 3(23dBm+1/-3dB) LTE-FDD: Class 3(23dBm±2dB) WCDMA: Class 3(24dBm+1/-3dB) TD-SCDMA: Class 3(24dBm+1/-3dB) GSM900: Class 4(33dBm±3dB) DCS1800: Class 1(30dBm±3dB) GSM900 8-PSK: Class E2(27dBm±3dB) DCS1800 8-PSK: Class E2(26dBm±3dB) |
| Receive Sensitivity | FDD B1: -96dBm(10M) FDD B3: -96dBm(10M) FDD B5: -96dBm(10M) FDD B8: -96.5dBm(10M) TDD B38: -96dBm(10M) TDD B39: -97dBm(10M) TDD B40: -96.5dBm(10M) TDD B41: -96dBm(10M) WCDMA B1: -110dBm WCDMA B8: -111dBm TDSCDMA B34: -109dBm TDSCDMA B39: -109dBm GSM 900M: -109dBm GSM 1800M: -109dBm |
| Internet Type | 4G/3G/GSM/GPRS |
| Data Rate | LTE FDD：50Mbps(UL)， 150Mbps(DL) TDD：35Mbps(UL)， 130Mbps(DL) WCDMA 5.76Mbps(UL)， 42Mbps(DL) TD-SCDMA 2.2Mbps(UL)， 4.2Mbps(DL) CMDA 1.8Mbps(UL)，3.1Mbps(DL) GSM/GPRS/EDGE 9.6Mbps(UL)，14.4Mbps(DL) |
| Multi-Slot Class | GPRS Class 12 |
| Application | AT Command |
| Network Protocol | TCP/UDP、 HTTP、 MQTT、 WebSocket |
| SIM Card | 1.8V/3V |
| Data Bits | 7,8 |
| Stop Bit | 1,2 |
| Charity Bit | None,Even,Odd |
| Baud Rate | TTL： 1200 bps~460800 bps |
| Flow Control | No Flow Control Half-Duplex(RS485) Software Flow Contorl |
| Buffer | 1400 |
| Size | 102.03 x 64.95 x 27.50 mm |
| Work Temp. | -40 ~ 85°C |
| Storage Temp. | -45 ~ 105°C， 5 ~ 95% RH（no condensation） |
| Input Voltage | ESP-G41-X-1： 100～240VAC@50～60Hz ESP-G41-X-2： 9～48VDC@1A |
| Work Current | ~300mA@9V |
