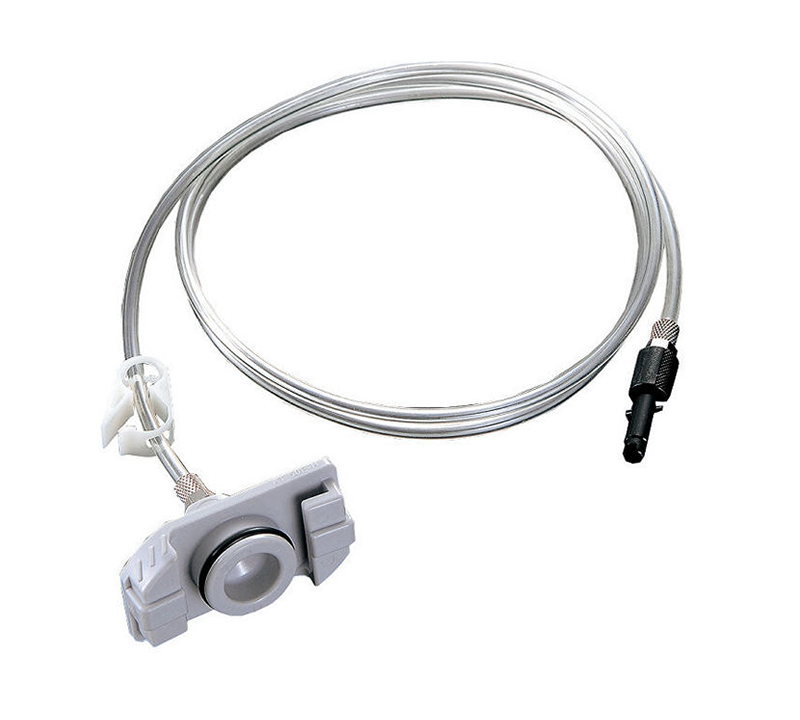

Dispensing Adapter tube for plastic connector with stopper Musashi At

Adapter material: Polyacetal
Tube material: Special elastomer resin
O-ring material: Fluororubber

Syringe capacity	OD φ4 type tube	OD φ6 type tube	Tube length
	Model	Model
3 mL	AT-3E-H-P4C-1.0M	AT-3E-H-P6C-1.0M	1 m
5 mL	AT-5E-H-P4C-1.0M	AT-5E-H-P6C-1.0M	1 m
10 mL	AT-10E-H-P4C-1.0M	AT-10E-H-P6C-1.0M	1 m
20 to 70 mL	AT-50E-H-P4C-1.0M	AT-50E-H-P6C-1.0M	1 m

Note:
1. This product can be ordered with length specification (in units of 0.5 m). The following example shows how to specify the length.
e.g., If you want to order a 1.5 m-long adapter tube for plastic connector (with stopper) for a 10 mL
syringe, the item number is “AT-10E-H-P4C-1.5M”.
2. Both OD φ4 type tube and OD φ6 type tube are equipped with a clamp.
