Dispensing
Adapter tube with stopper Musashi At
- AT-1E *1
- AT-3E-H-1.0M
- AT-5E-H-1.0M
- AT-5E-H-SIGMA-1.0M
- AT-10E-H-1.0M
- AT-10E-H-SIGMA-1.0M
- AT-50E-H-1.0M
- AT-50E-H-SIGMA-1.0M
- AT-100E *1

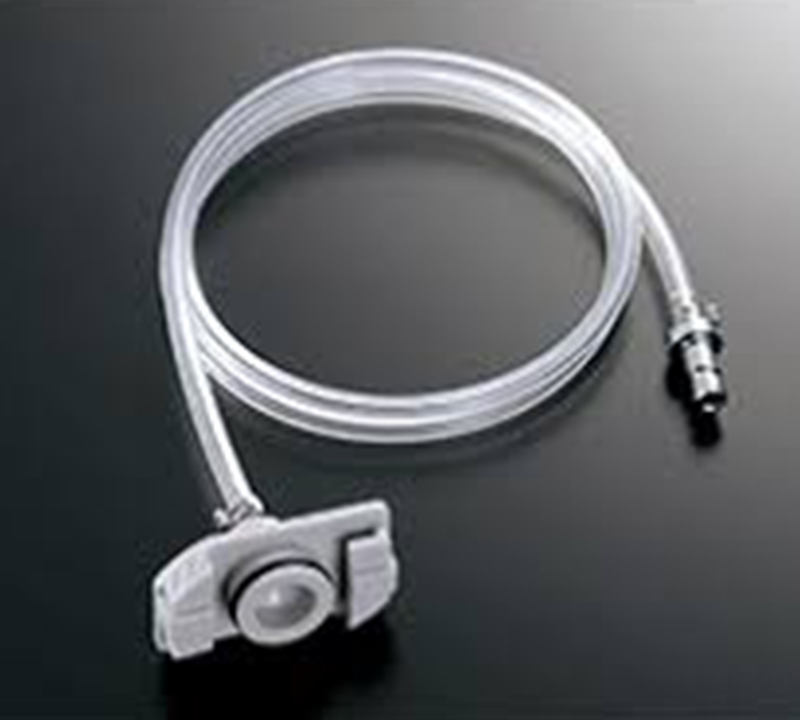

This tube is used to supply the air pressure by connecting the dispenser and syringe. Adapter material: Polyacetal (AT-100E: made of aluminum alloy)
Tube material: Special elastomer resin (for Σ series dispensers: Polyurethane) O-ring material: Fluororubber
Note:
This product can be ordered with length specification (in units of 0.5 m). The following example shows how to specify the length.
e.g., If you want to order a 1.5 m-long adapter tube (with stopper) for a 10 mL syringe, the item number is “AT-10E-H-1.5M”.
To purchase an adapter tube longer than 1 m dedicated for the Σ series, please contact our sales department.
*1 AT-1E and AT-100E models are not equipped with a stopper.
Tube material: Special elastomer resin (for Σ series dispensers: Polyurethane) O-ring material: Fluororubber
| Syringe capacity | Model | Tube length | Applicable dispenser |
| 1 mL | AT-1E *1 | 1m | - |
| 3 mL | AT-3E-H-1.0M | 1m | - |
| 5 mL | AT-5E-H-1.0M | 1m | - |
| AT-5E-H-SIGMA-1.0M | 1m | For Σ | |
| 10 mL | AT-10E-H-1.0M | 1m | - |
| AT-10E-H-SIGMA-1.0M | 1m | For Σ | |
| 20 to 70 mL | AT-50E-H-1.0M | 1m | - |
| AT-50E-H-SIGMA-1.0M | 1m | For Σ | |
| 100 mL | AT-100E *1 | 1m | - |
This product can be ordered with length specification (in units of 0.5 m). The following example shows how to specify the length.
e.g., If you want to order a 1.5 m-long adapter tube (with stopper) for a 10 mL syringe, the item number is “AT-10E-H-1.5M”.
To purchase an adapter tube longer than 1 m dedicated for the Σ series, please contact our sales department.
*1 AT-1E and AT-100E models are not equipped with a stopper.
