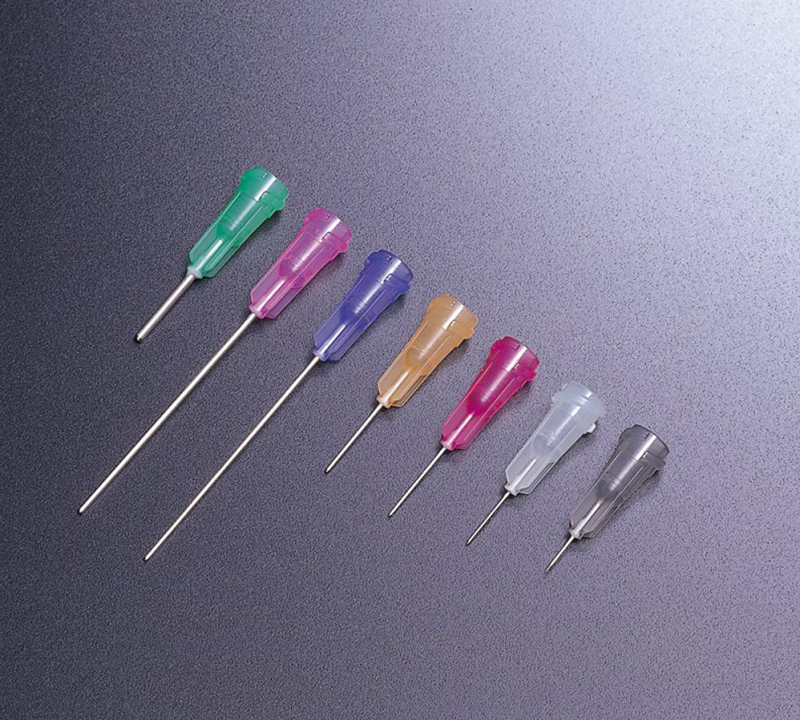

Dispensing Standard Needle Tip Musashi spn
Prevention of fluid climbing thanks to sharpening processing of needle tip
Prevention of fluid climbing to needle tip assures a stable dispensing rate. Micro-dispensing has been achieved by high-precision tapered needle tip. Double thread screw design allows the needle to be installed securely on the syringe.
Prevention of fluid climbing to needle tip assures a stable dispensing rate. Micro-dispensing has been achieved by high-precision tapered needle tip. Double thread screw design allows the needle to be installed securely on the syringe.
- Needle material: Stainless steel
- Needle base material: Polypropylene
- SPN-[]-[]L

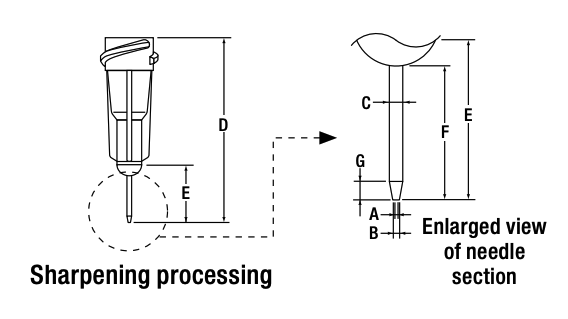

| Model | Total length (D) | Needle length (E) | Visible needle length (F) | Tapered tip length (G) | Needle ID (φ) (A) | Needle tip OD (φ) (B) | Needle OD (φ) (C) | Color | Minimum Order Quantity |
| SPN-0.84-12.7L | 30.3 | 12.7 | (11.4) | (0.6) | 0.84 | 1.00 | 1.27 | ●Green | 50 |
| SPN-0.58-38.1L | 55.7 | 38.1 | (37.1) | (0.32) | 0.58 | 0.74 | 0.91 | ●Pink | 50 |
| SPN-0.41-38.1L | 55.7 | 38.1 | (37.1) | (0.4) | 0.41 | 0.52 | 0.71 | ●Blue | 50 |
| SPN-0.33-12.7L | 30.3 | 12.7 | (11.4) | (0.3) | 0.33 | 0.44 | 0.64 | ●Orange | 50 |
| SPN-0.25-12.7L | 30.3 | 12.7 | (11.4) | (0.3) | 0.25 | 0.34 | 0.51 | ●Rose | 50 |
| SPN-0.17-9.5L | 27.1 | 9.5 | (8.5) | (0.5) | 0.17 | 0.26 | 0.51 | ●Light | 25 |
| SPN-0.12-6.5L | 24.0 | 9.5 | (5.6) | (1.1) | 0.12 | 0.19 | 0.46 | ●Gray | 25 |
