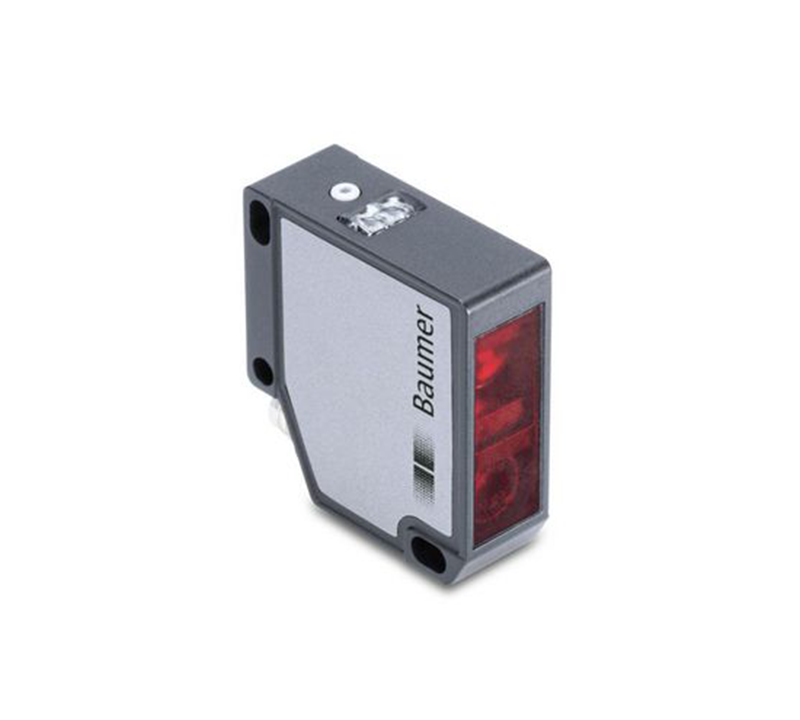

Distance sensors Baumer OM20-P0026.HH.YUN
Automatic adjustment of exposure time for precise measurements on changing materials
High immunity to ambient light for reliable measurements regardless of ambient conditions
Point beam shape for a precise measurement
Adjustable filters for particularly stable measurement results
High immunity to ambient light for reliable measurements regardless of ambient conditions
Point beam shape for a precise measurement
Adjustable filters for particularly stable measurement results
| General Data | |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 16 ... 26 mm |
| Measuring range Mr | 10 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 1 μm |
| Linearity error | ± 0.08 % Mr |
| Beam type | Point |
| Temperature drift | 0.01 % Sde/K |
| Light Source | |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Laser class | 1 |
| Maximum pulse power | 1 mW |
| Pulse duration | 0.001 ... 1 ms |
| Pulse period | 0.2 ... 3.6 ms |
| Electrical Data | |
| Response delay | 0.4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 ... 28 VDC |
| Current consumption max. (no load) | 100 mA |
| Output circuit | Analog and digital |
| Output signal | 0 ... 10 VDC / 0 ... 5 VDC |
| Load resistance | > 100 kOhm |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Communication Interface | |
| IO-Link | Yes |
| Interface | IO-Link V1.1 |
| Baud rate | 230,4 kBaud (COM 3) |
| Cycle time | ≥ 1 ms |
| Process data length | 48 Bit |
| Process data structure | Smart Sensor Profile - DMS PD1&4B.INT32_INT8 Bit 0 = SSC1 (distance) Bit 2 = quality Bit 3 = alarm Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| Mechanical Data | |
| Width / diameter | 34,5 mm |
| Height / length | 37 mm |
| Depth | 13 mm |
| Type | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Weight | 41 g |
| Ambient Conditions | |
| Ambient light immunity | < 100 kLux |
| Operating temperature | -10 ... +50 °C |
| Protection class | IP 67 |
| Storage temperature | -20 ... +70 °C |
| Vibration (sinusoidal) | IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis |
