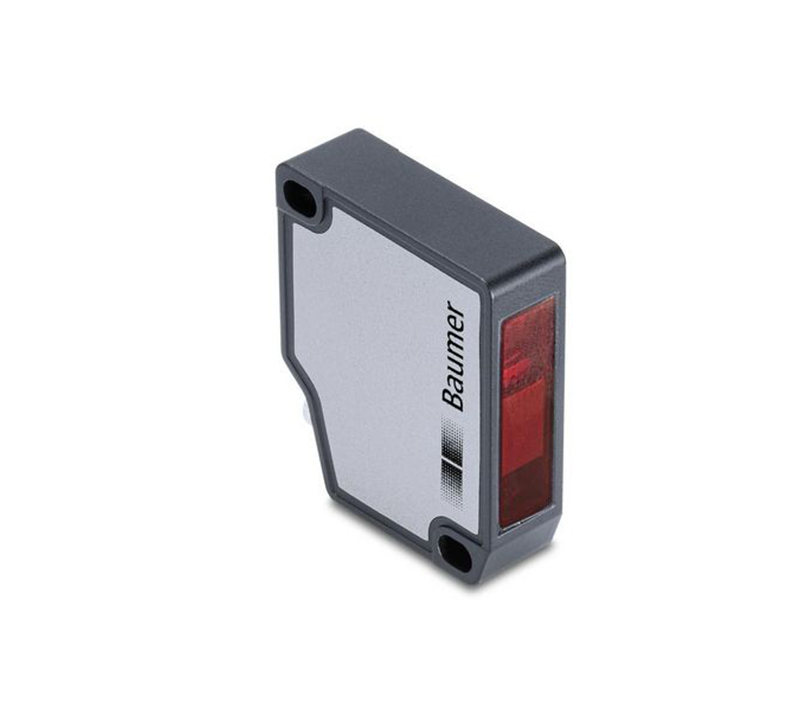

Distance sensors Baumer OM30-L0100.HV.YUN
- Automatic adjustment of exposure time for precise measurements on changing materials
- High immunity to ambient light for reliable measurements regardless of ambient conditions
- Line beam shape for particularly robust measurement results on structured surfaces
- Adjustable filters for particularly stable measurement results
| General data | |
|---|---|
| Type | Distance measuring |
| Measuring distance Sd | 50 … 100 mm |
| Measuring range Mr | 50 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 1 … 3 μm |
| Linearity error | ± 0,08 % Mr |
| Beam type | Line |
| Temperature drift | 0,02 % Sde/K |
| Light Source | |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Laser class | 2 |
| Maximum pulse power | 2 mW |
| Pulse duration | 0.001 … 1.2 ms |
| Pulse period | 0.2 … 3.4 ms |
| Electrical data | |
| Response delay | 0,4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 … 28 VDC |
| Current consumption max. (no load) | 100 mA |
| Output circuit | Analog and digital |
| Output signal | 4 … 20 mA / 2 … 10 mA |
| Load resistance | < (+Vs - 9 V) / 0.02 A |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Communication interface | |
| IO-Link | Yes |
| Interface | IO-Link V1.1 |
| Baud rate | 230,4 kBaud (COM 3) |
| Cycle time | ≥ 1 ms |
| Process data length | 48 Bit |
| Process data structure | Smart Sensor Profile - DMS PDI48.INT32_INT8 Bit 0 = SSC1 (distance) Bit 2 = quality Bit 3 = alarm Bit 8-15 = scale factor Bit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| Mechanical data | |
| Width / diameter | 40,3 mm |
| Height / length | 49 mm |
| Depth | 13,6 mm |
| Type | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Weight | 67 g |
| Ambient conditions | |
| Ambient light immunity | < 100 kLux |
| Operating temperature | -10 … +50 °C |
| Protection class | IP 67 |
| Storage temperature | -20 … +60 °C |
| Vibration (sinusoidal) | IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis |
