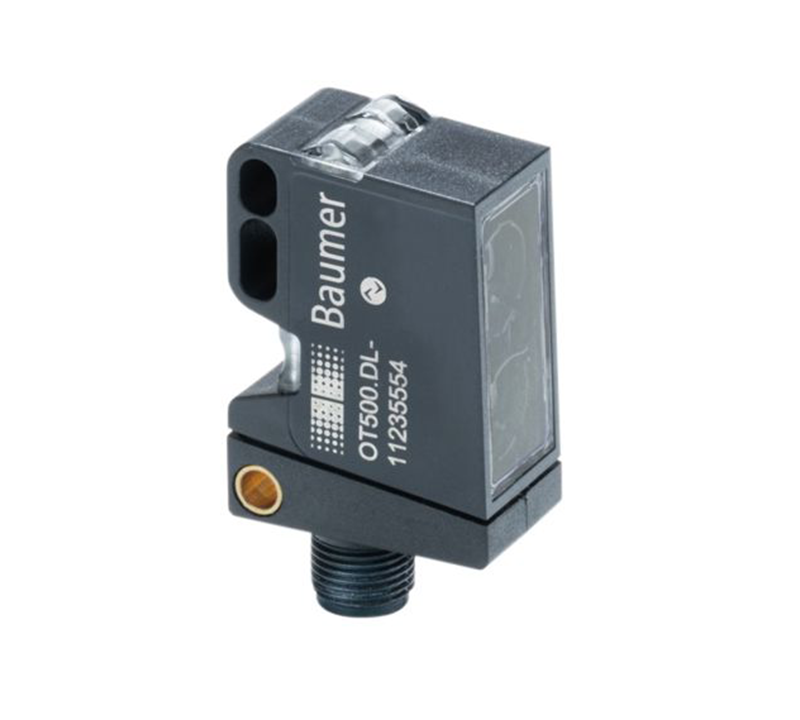

    Distance sensors Baumer OT500.DL-GLUBJ.72F

    General data
    Type Distance measuring
    Version Time of Flight
    Measuring distance Sd 150 ... 2500 mm
    Measuring range Mr 2350 mm
    Focal distance 1500 mm
    Adjustment Teach-in and IO-Link
    Power on indication LED green
    Output indicator LED yellow
    Repeat accuracy ≤ 1200 ... 4300 µm
    Linearity error ± 10 mm
    Beam type Point
    Suppression of reciprocal influence Yes
    Alignment optical axis < 1°
    Temperature drift ± 15 mm
    Light Source
    Light source Pulsed red laser diode
    Wave length 680 nm
    Laser class 1
    Electrical data
    Response time / release time < 4 ms (High Speed Mode)
    < 8 ms (Standard Mode)
    < 50 ms (Long Range Mode)
    Voltage supply range +Vs 12 ... 30 VDC
    Current consumption max. (no load) 60 mA
    Voltage drop Vd < 2 VDC
    Output circuit Analog 0 ... 10 VDC
    Push-pull / IO-Link
    Output current < 50 mA (push-pull)
    Switching output Light operate, switchable
    Short circuit protection Yes
    Reverse polarity protection Yes, Vs to GND
    Communication interface
    Interface IO-Link V1.1.3
    IO-Link port type Class A
    Baud rate 230,4 kBaud (COM 3)
    Cycle time ≥ 2 ms
    Process data length 32 Bit
    Process data structure Bit 0 = SSC1 (distance)
    Bit 1 = SSC2 (distance)
    Bit 2 = quality
    Bit 3 = alarm
    Bit 5 = SSC4 (counter)
    Bit 8-15 = scale factor
    Bit 16-31 = 16 Bit measurement
    Adjustable parameters Switching point
    Switching hysteresis
    Operation mode
    Time filters
    LED status indicators
    Output logic
    Output circuit
    Analog output characteristic
    Counter
    Deactivate the sensor element
    Find Me function
    Teach-in mode
    Additional data Distance
    Excess gain
    Operating cycles
    Operating hours
    Boot cycles
    Operating voltage
    Device temperature
    Histograms
    Mechanical data
    Width / diameter 18 mm
    Height / length 45 mm
    Depth 32 mm
    Type Rectangular
    Housing material Plastic (ASA, PMMA)
    Front (optics) PMMA
    Connection types Connector M12 5 pin
    Ambient conditions
    Protection class IP 67
    Operating temperature -20 ... +50 °C
    Storage temperature -40 ... +70 °C
    Vibration (sinusoidal) IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
    Shock (semi-sinusoidal) IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
