    Dispensing

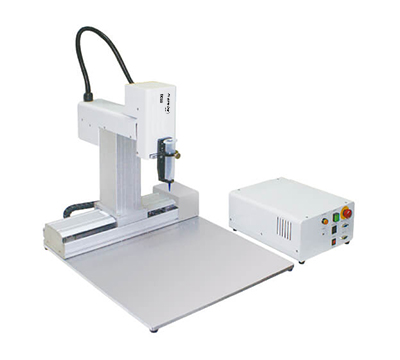

    DIY Series 3-Axis Dispensing Robot 200DI

    Features
    • No weight limited.
    • Axis can be separated to increase working area.
    • Combine controller with robot, save place.
    • USB port allows for data transfer between PC.
    • Continuous path motion for accurate XYZ movement.
    • Optional SRE software (PC programming).
    • Dispensing area 200x200x50mm.

    Specification

    Model 200DI
    Working Area X / Y / Z (mm) 200 ( Max. 4000 ) / 200 / 50
    Load Worktable 1 kg
    Maximum Speed XY / Z (mm/sec) 0.1 ~ 500 / 300
    Repeatability +/- 0.02 mm / Axis
    Data Memory Capacity 100 programs 、 4000 points / program
    Drive System /Stepping Motor Micro stepping motor
    Motion Control PTP & CP
    Teaching Method Teach pendant
    Power Supply 100 ~ 230 VAC , 320 W
    Working Temperature 0 - 40°C
    Relative Humidity (no condensation) 20 - 90% No condensation
    Dimensions (WxDxH mm) 468 x 387 x 497.5
    Robot Weight 20 kg

    ※Specification and Pictures are for reference only, call our sales to have latest data.
