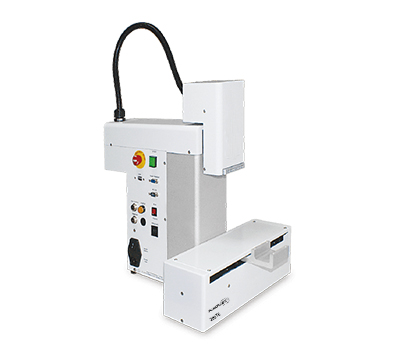

DT-200TE 3-Axis Dispensing Robot 200TE
Features
- Cost effective model!
- Dispensing area 200x200x50mm
- Dot, lines, arc etc. and 3D dispensing path is available.
- 100 program, 4000 points per program.
Specification
| Model | 200TE |
|---|---|
| Working Area X / Y / Z (mm) | 200 / 200 / 50 |
| Load Worktable | 1 kg |
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 500 / 300 |
| Repeatability | +/- 0.02 mm / Axis |
| Data Memory Capacity | 100 programs 、 4000 points / program |
| Drive System / Stepping Motor | Micro stepping motor |
| Motion Control | PTP & CP |
| Teaching Method | Teach pendant |
| Power Supply | 100 ~ 230 VAC , 320 W |
| Working Temperature | 0 - 40°C |
| Relative Humidity (no condensation) | 20 - 90% No condensation |
| Dimensions (WxDxH mm) | 469 x 388 x 499 |
| Robot Weight | 20 kg |
