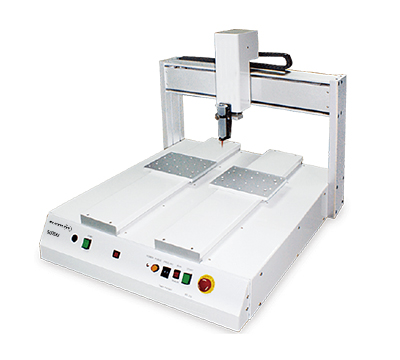

DU Series Dual Table Dispensing Robot 500DU
Features
- Save cycle time.
- 2Y Axis can set different dispensing path.
- A hand-held Teach Pendant is provided for simple and intuitive programming functions.
- X/Y/Z-axis ball screw, increase robot stability and repeatability.
- Dispensing area 500x500x500x100mm.
- Dot, lines, arc etc. and 3D dispensing path is available.
- 100 programs, 4000 points per program.
- Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids.
- Windows SRE software is avilable for CAD file input (optional).
Specification
| Model | 500DU |
|---|---|
| Working Area X / Y1 / Y2 / Z (mm) | 500 / 500 / 500 / 100 |
| Load Worktable Y-Axis / Z-Axis | 5 kg / 3 kg |
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 600 / 300 |
| Resolution | 0.001 mm / Axis |
| Repeatability | +/- 0.01 mm / Axis |
| Data Memory Capacity | 100 programs 、 4000 points / program |
| Display | TFT |
| Drive System /Stepping Motor | Micro stepping motor |
| Motion Control | PTP & CP |
| Linear / Circular Interpolation | 3 axis / 2Y |
| Teaching Method | Teach pendant |
| I/O Signals | 8 Inputs / 8 Outputs |
| Power Supply | 100 ~ 230 VAC , 320 W |
| Working Temperature | 0 - 40°C |
| Relative Humidity (no condensation) | 20 - 90% No condensation |
| Dimensions (WxDxH mm) | 685 x 715 x 670 |
| Robot Weight | 70 kg |
