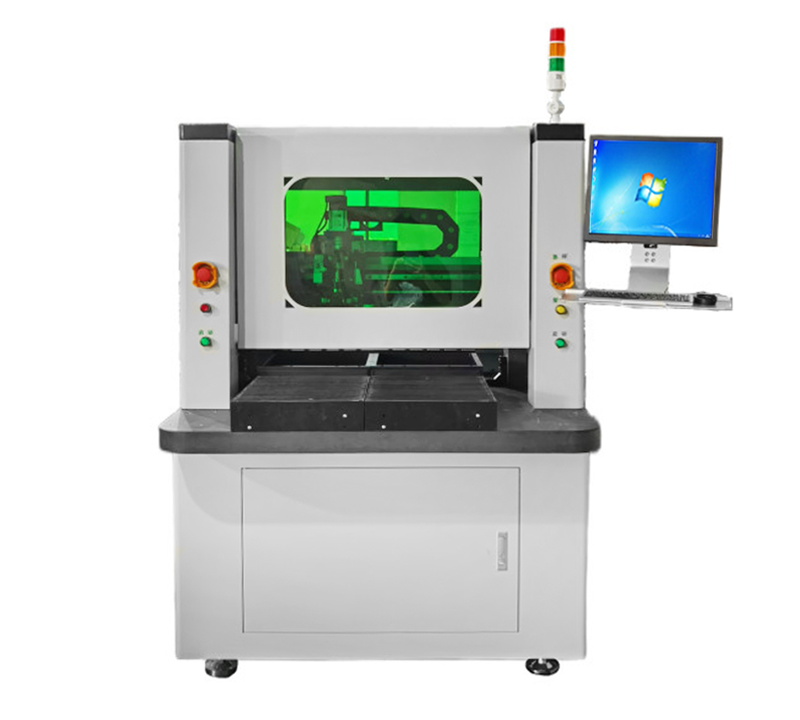

Dual Table CEM PCB Router Depaneling Machine
Spindle: KAVO
- Spindle Speed: 60000RPM
- PCB Material: FR4, CEM, MCPCB
- PCB Thickness: 3.0mm
- Dimensions: 1220mm x 1450mm x 1420mm
- Axis Working Area: 680mm x 360mm x 50mm
- Weight: 550KG
- PCB Fixation: Standard, Specialization
- PCB Size (max): 322mm x 322mm
- Power: 400W
Features
Specification
Vacuum Cleaner Specification

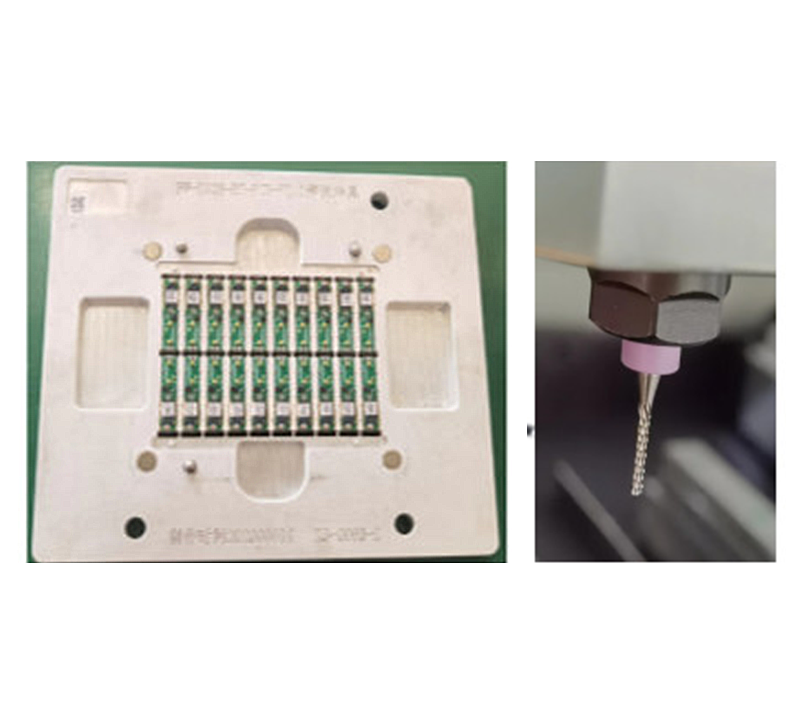

- This machine cutting multi-panel PCB according to the pre-edited path by use of the high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT, or Push cut, improves product quality and reduces scrap rates.
- The machine adopts a human-machine interface vie Windows XP, which is simple and convenient,and can realize automatic cutting path correction, edit and modification of high-pixel CCD program, block program, and single-step program.
- The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program, and editing function, the machine can work more accurately and get sharper graphics. Equipped with an automatical mark positioning correction system, the motion path is displayed in real-time and traced in an analog way; all in all, realize a clear vision.
- Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically,This reduces the operator's standard for placing plates, thereby improving work efficiency.
- The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function, and the block editing function indeed simplify the process of programming and increase efficiency.
Specification
| Dimensions(W*D*H): | 1220mm*1450mm*1420mm |
| Weight: | 550KG |
| Height offset: | 60~110mm |
| Motor type: | JiaBao series |
| Positioning repeatability: | 0.001mm |
| Axis working area(max): | 680mm*360mm*50mm |
| PCB fixation: | standard, specialization |
| PCB loading/unloading: | manual |
| PCB size (max): | 322mm*322mm |
| PCB thick (max): | 3mm |
| Rigidity fixturing: | standard |
| Fixturing fixation: | machinery |
| Power: | 400W |
| Spindle: | 60000rpm/min |
| Protect: | self/wind cooling |
| Change cutter: | Specialization |
Vacuum Cleaner Specification
| Dimension | 650*400*1300mm |
| Material | S/S 41 carbon steel |
| Control way | Built-in |
| Filter | 100% Polyester needle non - woven bag |
| Falling mode | Manual joystick + Dust center of gravity falling automatically |
| Motor | 2HP, 1.5KW, 380V |
| Static pressure | 2000mmAQ |
| Vacuum suction diameter | 50mm |
| Filter bag arrangement | 8 PCS, 120(D)mm*500(L)mm |
| Surface treatment | Single-sided calendering |
| Cleaning way | Drawer type dust box |
| Positioning wheel | 4 pcs, ￠65*￠12mm |
| Handwheel | 2 pcs |
| Weight | 150kgs |
| Remark | Sealed soft rubber access door and clear door |
