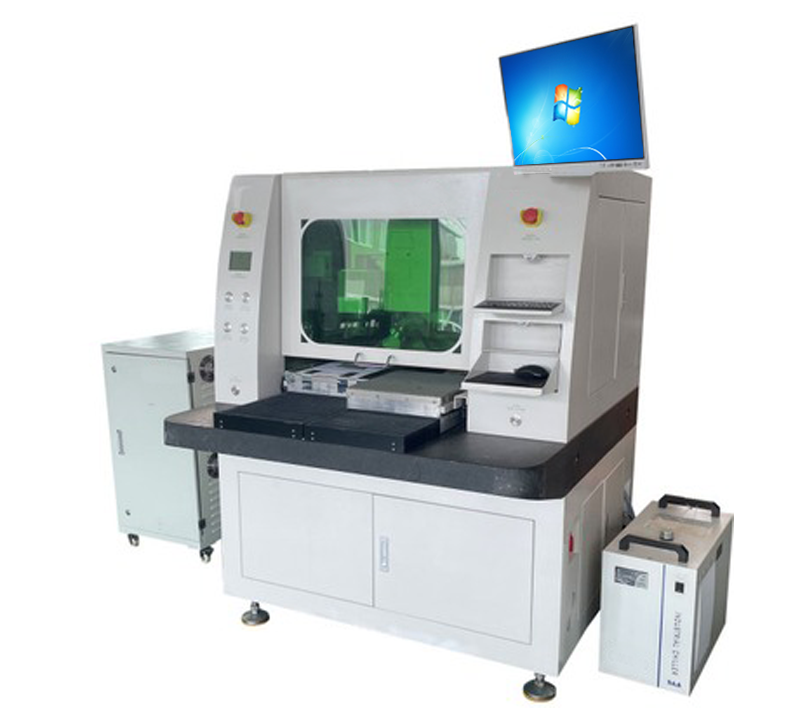

Dual Table PCB FPC Inline Laser Depaneling Machine
- Colour: White
- Power Rate: 10/15W
- Working Area: 300*300mm
- Laser Head: Solid-state UV Lasers
- PCB Material: FPC, FR4
- Name: Laser Depaneling
- High Light: pcb shear cutter, metal cutter machine
Features
Advantages
Application
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
Specifications
- High-precision: Low-drift galvanometer combined with fast ironless linear motor system platform for fast cutting. Keep high precision in micrometers.
- Easy to learn: Self-developed Windows control system, easy-to-use Chinese/English interface, and friendly Views, powerful and diverse, easy to operate.
- Intelligent Automated: Using high-precision CCD to automatically locate and focus, positioning is fast and accurate, without manual intervention, simple operation, realize the one-button mode of the same type, greatly improve production efficiency. Automatic galvanometer correction, auto focus, full implementation Automation, using laser displacement sensor to automatically adjust the height of the focus to the table, to achieve rapid alignment, saving time.

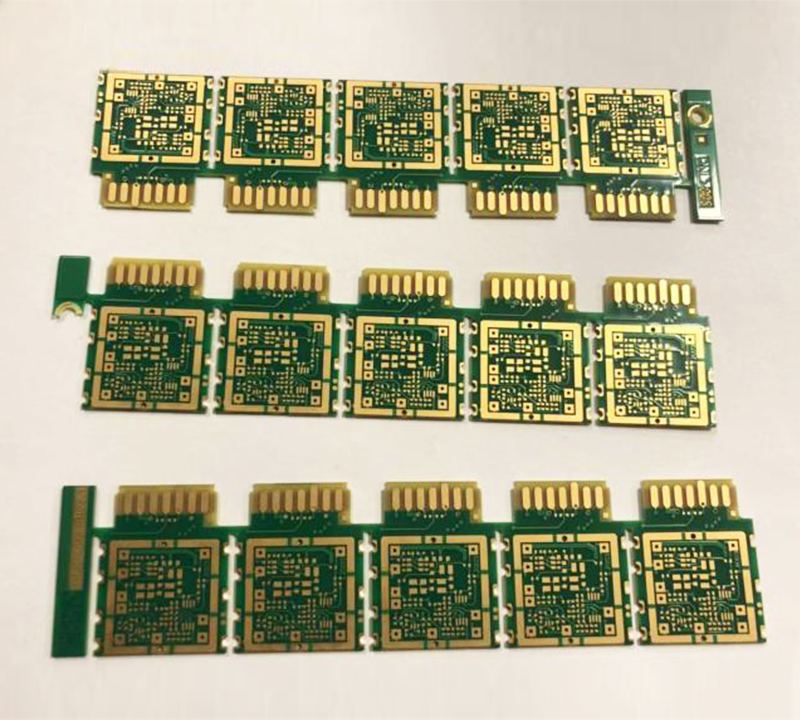

- Suitable for cutting: FPC, PCB, chip cutting, cell phone camera module. Fragments, layers, blocks, or selected areas are cut and formed directly. The cutting edges are neat, smooth, smooth, and free of burrs. Overfilled plastic. Products can be arranged in a matrix for automatic positioning and cutting, especially for fine, difficult and complex patterns .
- High-performance lasers: Adopting solid-state UV lasers from international brands, with good beam quality and focused spot. Small, uniform power distribution, small thermal effect, small kerf width, high cutting quality, etc.
Advantages
- High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;
- Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
- Reduce energy consumption, Cost savings;
- Cost-effective, fast cutting speed, stable performance.
Application
FPC/PCB/ Rigid-Flex PCB cutting, Camera module cutting.
Specifications
| Main body of laser | 1480mm*1360mm*1412 mm |
| Weight of machine | 1500Kg |
| Power | AC220 V |
| Laser | 355 nm |
| Laser | Optowave 10-20W(US) |
| Material | ≤1.2 mm |
| Precision | ±20 µm |
| Positioning | ±2 µm |
| Platform | ±2 µm |
| Working area | 450*430 mm |
| Maximum | 3 KW |
| Vibrating | CTI(US) |
| Power | AC220 V |
| Diameter | 20±5 µm |
| Ambient | 20±2 °C |
| Ambient | < 60 % |
| The Machine | Marble |
