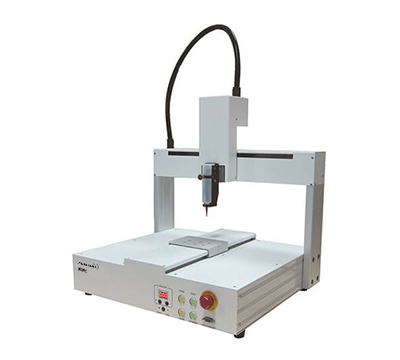

EC Series Costdown Dispensing Robot 300EC
Features
- Step & Repeat function – Program one object for multiple identical objects.
- It is a economically priced benchtop robot.
- USB port allows for data transfer between PC.
- Continuous path motion for accurate XYZ movement.
- Optional SRE software (PC programming).
Specification
| Model | 300EC | ||
|---|---|---|---|
| Working Area X / Y / Z (mm) | 300 / 300 / 100 | ||
| Load Worktable Y-Axis / Z-Axis | 6 kg / 3 kg | ||
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 600 / 300 | ||
| Repeatability | +/- 0.02 mm / Axis | ||
| Data Memory Capacity | 256 programs、4000 points / program | ||
| Drive System / Stepping Motor | Micro stepping motor | ||
| Motion Control | PTP & CP | ||
| Teaching Method | Teach pendant | ||
| Power Supply | 100 ~ 230 VAC , 320 W | ||
| Working Temperature | 0 - 40°C | ||
| Relative Humidity (no condensation) | 20 - 90% No condensation | ||
| Dimensions (WxDxH mm) | 520 x 434 x 519 | ||
| Robot Weight | 26 kg | ||
※Specification and Pictures are for reference only, call our sales to have latest data.
