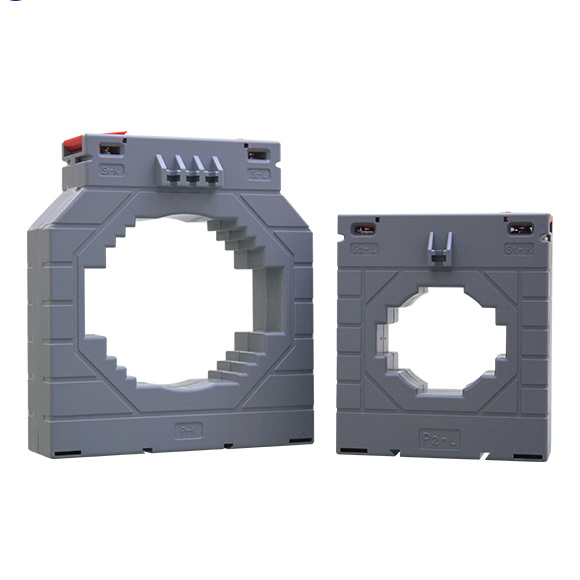

Esct-cp 5a Ct Output Solid Core Current Sensor Eastron ESCT-CP Series

Specification

Frequency

50-60HZ

Rated Current

5A to 3000A Loads

Rated Output

1A/5A(AC)

Measuring Range

5%ln-120%ln

Rated Voltage

0.72KV(AC)

Dielectric Strength

3.0KV/1mA/1Min

Case

PC/UL94-V0

Bobbin

PBT

Core

Silicon Steel

Construction

Screw

Operating Temp

-25℃~+75℃

Operating Humidity

<85%

Output Connection

Terminal

Model

Ratio(A)

Burden(VA)

Class 0.5

Class 1.0

ESCT-CP-62/B

5/5

1.5

2.5

ESCT-CP-62/B

10/5

1.5

2.5

ESCT-CP-62/B

15/5

1.5

2.5

ESCT-CP-62/B

20/5

1.5

2.5

ESCT-CP-62/B

25/5

1.5

2.5

ESCT-CP-62/B

30/5

1.5

2.5

ESCT-CP-62/B

40/5

1.5

2.5

ESCT-CP-62/B

50/5

1.5

2.5

ESCT-CP-62/B

60/5

1.5

2.5

ESCT-CP-62/B

75/5

1.5

2.5

ESCT-CP-62/B

100/5

1.5

2.5

ESCT-CP-62/B

150/5

1.5

2.5

ESCT-CP-62/20

30/5

-

2.5

ESCT-CP-62/20

40/5

-

2.5

ESCT-CP-62/20

50/5

-

2.5

ESCT-CP-62/20

60/5

-

2.5

ESCT-CP-62/20

75/5

-

1.5

ESCT-CP-62/20

80/5

-

2.5

ESCT-CP-62/20

100/5

1.5

2.5

ESCT-CP-62/20

150/5

2.5

3.75

ESCT-CP-62/20

200/5

3.75

5

ESCT-CP-62/30

30/5

-

2.5

ESCT-CP-62/30

40/5

-

2.5

ESCT-CP-62/30

50/5

-

2.5

ESCT-CP-62/30

60/5

-

2.5

ESCT-CP-62/30

75/5

-

1.5

ESCT-CP-62/30

100/5

1.5

2.5

ESCT-CP-62/30

150/5

2.5

3.75

ESCT-CP-62/30

200/5

3.75

5

ESCT-CP-62/30

250/5

5

7.5

ESCT-CP-62/30

300/5

5

7.5

ESCT-CP-62/30

400/5

5

10

ESCT-CP-62/40

60/5

-

1.5

ESCT-CP-62/40

75/5

-

1.5

ESCT-CP-62/40

100/5

-

1.5

ESCT-CP-62/40

150/5

-

2.5

ESCT-CP-62/40

200/5

2.5

3.75

ESCT-CP-62/40

250/5

2.5

3.75

ESCT-CP-62/40

300/5

2.5

5

ESCT-CP-62/40

400/5

2.5

5

ESCT-CP-62/40

500/5

2.5

5

ESCT-CP-62/40

600/5

2.5

7.5

ESCT-CP-80/30

30/5

-

2.5

ESCT-CP-80/30

50/5

-

2.5

ESCT-CP-80/30

60/5

-

2.5

ESCT-CP-80/30

75/5

-

1.5

ESCT-CP-80/30

100/5

-

2.5

ESCT-CP-80/30

150/5

2.5

3.75

ESCT-CP-80/30

200/5

3.75

5

ESCT-CP-80/30

250/5

5

5

ESCT-CP-80/30

400/5

5

10

ESCT-CP-80/40

100/5

-

2.5

ESCT-CP-80/40

150/5

2.5

3.75

ESCT-CP-80/40

200/5

3.75

5

ESCT-CP-80/40

250/5

3.75

5

ESCT-CP-80/40

300/5

5

5

ESCT-CP-80/40

400/5

5

10

ESCT-CP-80/40

500/5

5

10

ESCT-CP-80/40

600/5

5

10

ESCT-CP-80/40

800/5

5

10

ESCT-CP-86/60

250/5

3.75

5

ESCT-CP-86/60

300/5

5

7.5

ESCT-CP-86/60

400/5

5

7.5

ESCT-CP-86/60

500/5

5

7.5

ESCT-CP-86/60

600/5

10

15

ESCT-CP-86/60

750/5

10

15

ESCT-CP-86/60

800/5

10

15

ESCT-CP-86/60

1000/5

10

15

ESCT-CP-86/60

1200/5

10

15

ESCT-CP-86/60

1500/5

10

15

ESCT-CP-100/60

400/5

3.75

5

ESCT-CP-100/60

500/5

5

10

ESCT-CP-100/60

600/5

10

15

ESCT-CP-100/60

750/5

10

15

ESCT-CP-100/60

800/5

10

15

ESCT-CP-100/60

1000/5

10

20

ESCT-CP-100/60

1200/5

15

20

ESCT-CP-100/60

1500/5

15

20

ESCT-CP-100/60

1600/5

15

20

ESCT-CP-104/80

600/5

10

15

ESCT-CP-104/80

750/5

10

15

ESCT-CP-104/80

800/5

10

15

ESCT-CP-104/80

1000/5

15

20

ESCT-CP-104/80

1200/5

15

20

ESCT-CP-104/80

1250/5

15

20

ESCT-CP-104/80

1500/5

15

20

ESCT-CP-104/80

1600/5

15

20

ESCT-CP-104/80

2000/5

15

20

ESCT-CP-140/100

800/5

15

20

ESCT-CP-140/100

1000/5

15

20

ESCT-CP-140/100

1200/5

15

20

ESCT-CP-140/100

1250/5

15

20

ESCT-CP-140/100

1500/5

15

20

ESCT-CP-140/100

1600/5

15

20

ESCT-CP-140/100

2000/5

15

25

ESCT-CP-140/100

2500/5

15

25

ESCT-CP-140/100

3000/5

15

25
