SMT Splice Tapes & Tools

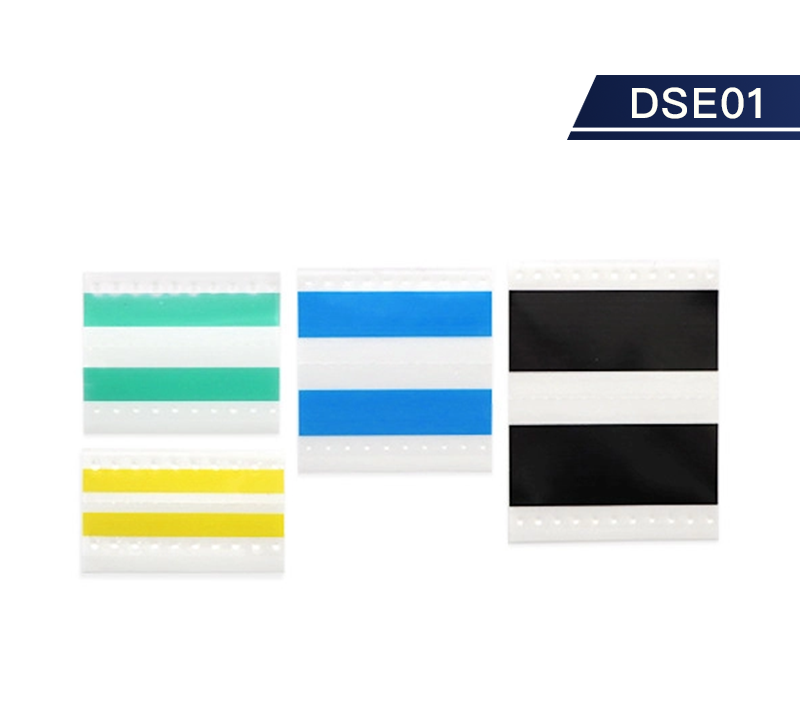

ESD SMT Double Splice Tape with Embossed Dots
- For most of pick and place machines
Features
For jointing carrier tapes in the SMT process
Specification
- Double embossed dots design
- Applicable for most of pick and place machines
For jointing carrier tapes in the SMT process
Specification
| Material | PET |
| Adhesive | Acrylic |
| Peeling-off Force | (N/25mm) by angle 180°≥15 |
| Retaining Time | (H/25*25mm) ＞100 |
| Tensile Strength at Break | (N/25mm)＞4.0 |
| Certificate | RoHS |
| Part No | Description | Color | Width/mm |
| DSE0108 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 08 |
| DSE0112 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 12 |
| DSE0116 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 16 |
| DSE0124 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 24 |
| DSE0132 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 32 |
| DSE0144 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 44 |
| DSE0156 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 56 |
| DSE0172 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 72 |
| DSE0188 | ESD SMT Double Splice Tape with Embossed Dots | Yellow/ Black/ Blue/ Green | 88 |
