SMT Splice Tapes & Tools
Features
For jointing carrier tapes in the SMT process
Specification

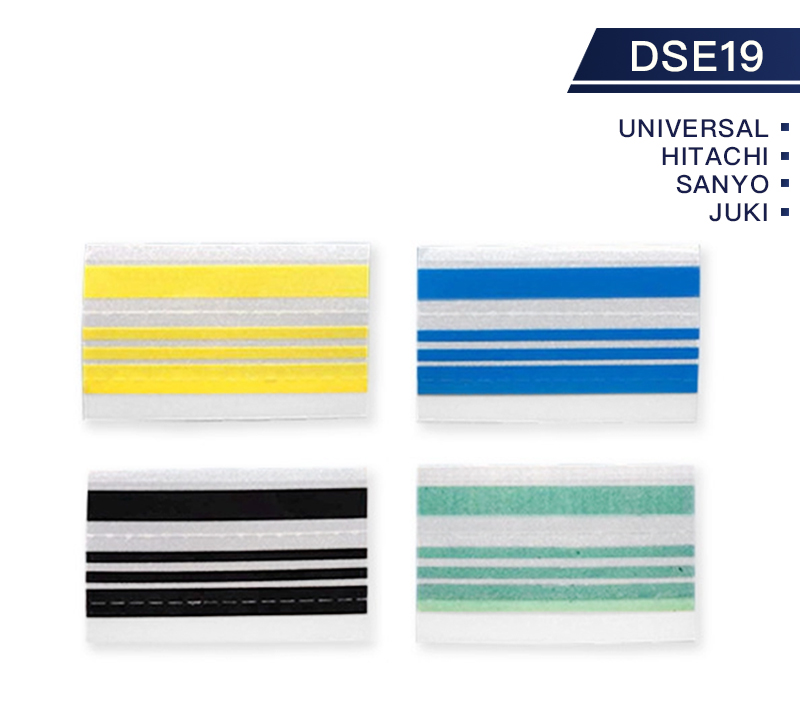

- Four-Strips design
- Applicable for Universal, Juki, Sanyo and Hitachi SMT Pick and Place machines
For jointing carrier tapes in the SMT process
Specification
| Material | PET |
| Adhesive | Acrylic |
| Peeling-off Force | (N/25mm) by angle 180°≥15 |
| Retaining Time | (H/25*25mm) ＞100 |
| Tensile Strength at Break | (N/25mm)＞4.0 |
| Certificate | RoHS |
| Part No | Description | Color | Width/mm |
| DSE1908 | SMT Double Splice Tape with Double Embossed Dots | Yellow/ Black/ Blue/ Green | 08 |
| DSE1912 | SMT Double Splice Tape with Double Embossed Dots | Yellow/ Black/ Blue/ Green | 12 |
| DSE1916 | SMT Double Splice Tape with Double Embossed Dots | Yellow/ Black/ Blue/ Green | 16 |
| DSE1924 | SMT Double Splice Tape with Double Embossed Dots | Yellow/ Black/ Blue/ Green | 24 |
