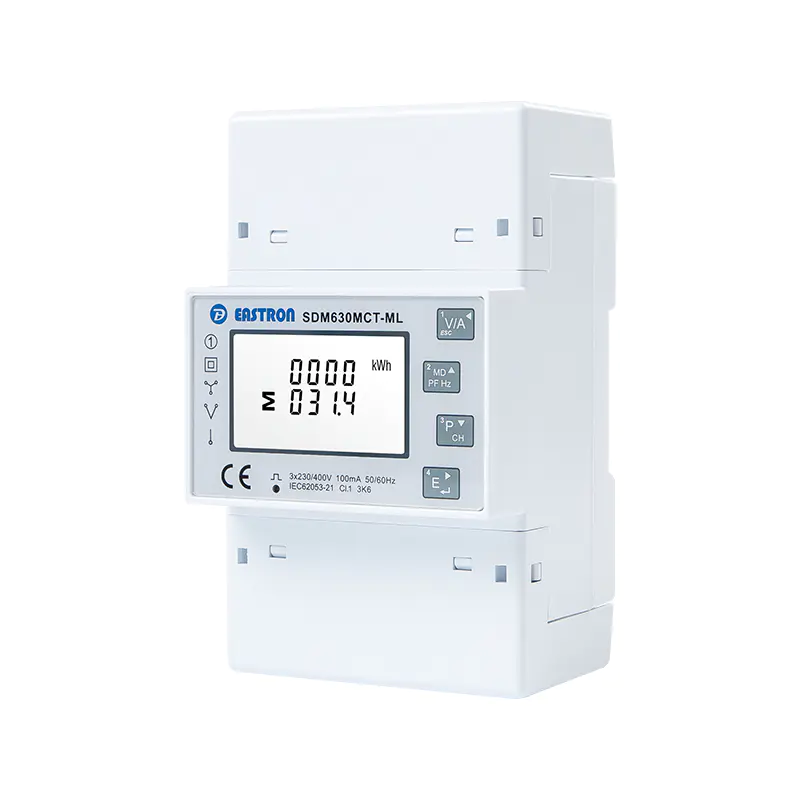

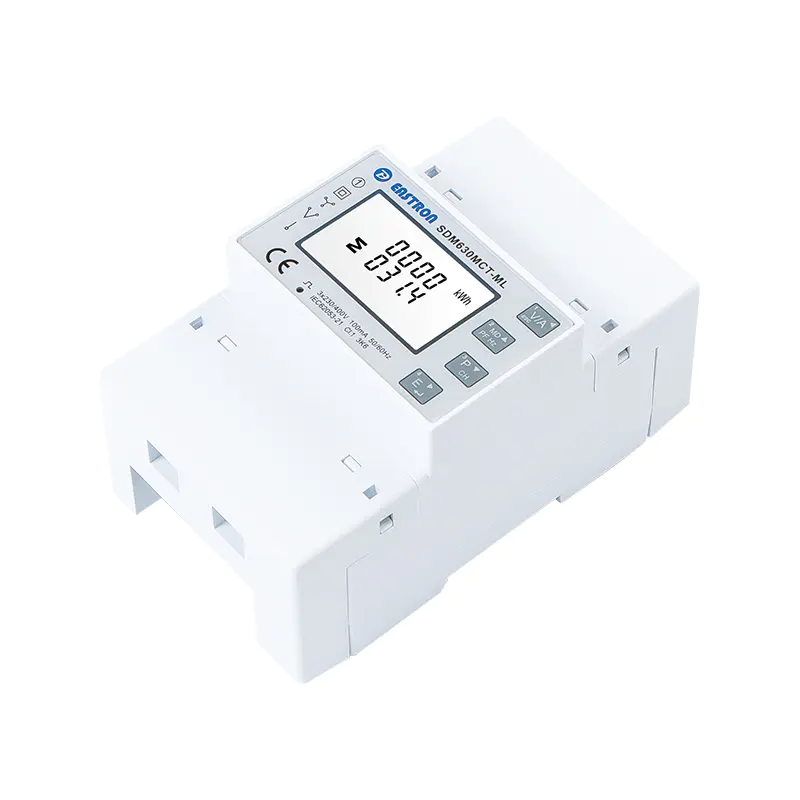

Ethernet Quad Load Three Phase Energy Meter For Multi Circuit Metering Eastron SDM630MCT-ML-TCP
- Multi-parameters for 4 Loads, 12 Loads
- Multi-Parameter Measurement
- Ethernet TCP/IP
- Independently programmable CT ratios
- RJ12 Socket for fast connection
- True RMS measurement
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Power |
0.5% of range maximum |
|
Active Energy |
IEC 62053-22 Class 0.5S, IEC 62053-21 Class 1.0 |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
|||
|
Input |
Current |
CT Secondary |
100mA/ 100mV |
|
CT Primary |
1-9999A |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM630MCT-ML/3L/2L-1L |
RS485 Modbus (RJ45 port) |
|
|
SDM630MCT-ML-TCP |
Ethernet Modbus TCP |
||
|
RS485/Ethernet Modbus Communications |
|
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Transmission Speed |
1200bps~38400bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
