Sensor
Specifications
|

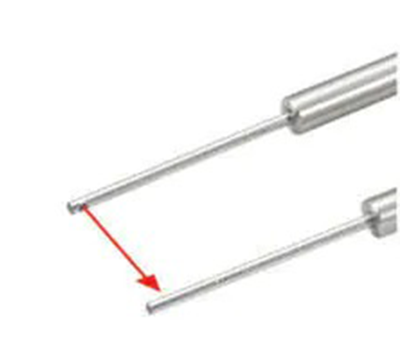

Model |
FU-32*1 |
|||
|
Optical axis diameter |
ø0.6 mm0.024" |
|||
|
Beam emitting direction |
Side |
|||
|
Fibre unit length |
1 m39.37" free-cut |
|||
|
Fibre unit diameter |
ø1.3 |
|||
|
Minimum bend radius |
R25 mm0.984" |
|||
|
Minimum detectable object |
Gold wire with a diameter of 0.005 mm0.0002" *2 |
|||
|
Environmental resistance |
Ambient temperature |
-40 to +70 °C -40 to 158 °F |
||
|
Weight |
Approx. 5 g |
|||
|
*1 For details on the detecting distance, see the fiber amplifier catalog. |
||||
