Fixed Mount Bar Code Scanners SICK CLV62x / CLV620
Type:CLV620-1000
Part No.:1041548
Part No.:1041548

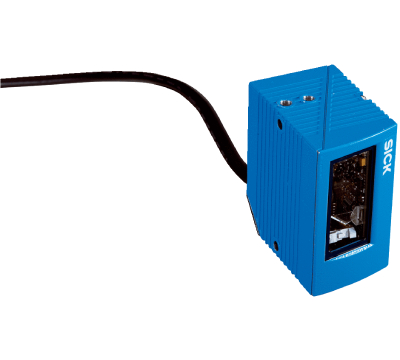

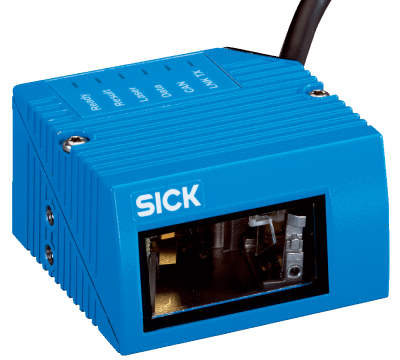

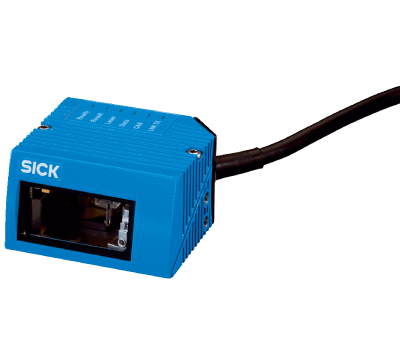

Fixed Mount Bar Code Scanners CLV62x / CLV620 SICK CLV620-1000
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
General notes
Classifications
Features
| Version | Mid Range | ||||
| Connection type | Cable | ||||
| Reading field | Front | ||||
| Scanning method | Raster scanning | ||||
| Sensor type | Raster scanner | ||||
| Optical focus | Fixed focus | ||||
|
|||||
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) | ||||
| Aperture angle | ≤ 50° | ||||
| Scanning frequency | 400 Hz ... 1,200 Hz | ||||
| Code resolution | 0.2 mm ... 1 mm | ||||
| Reading distance | 60 mm ... 365 mm 1) | ||||
| Raster height, number of lines, at distance | 15 mm, 8, 200 mm | ||||
- 1) For details see reading field diagram.
Mechanics/electronics
| Connection type | 1 x 15-pin D-Sub HD male connector (0.9 m) |
| Supply voltage | 10 V DC ... 30 V DC |
| Power consumption | 4.5 W |
| Housing | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Front screen | Glass |
| Enclosure rating | IP65 (DIN 40 050) |
| Protection class | III (VDE 0106/IEC 1010-1) |
| Weight | 225 g, with connecting cable |
| Dimensions (L x W x H) | 61 mm x 66 mm x 38 mm |
| MTBF | 100,000 h |
| MTTF | 40,000 h (Laser diode) 1) |
- 1) At 25 °C.
Performance
| Readable code structures | 1D codes |
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey |
| Print ratio | 2:1 ... 3:1 |
| No. of codes per scan |
1 ... 20 (Standard decoder) 1 ... 6 (SMART620) |
| No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
| No. of characters per reading interval |
1,500 500 (for multiplexer function in CAN operation) |
| No. of multiple readings | 1 ... 99 |
Interfaces
| PROFINET | ✔ |
| Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
| Function | PROFINET Single Port, PROFINET Dual Port |
Ambient data
| Electromagnetic compatibility (EMC) | EN 61000-6-3 (2001-10) / EN 61000-6-2:2005 |
| Vibration resistance | EN 60068-2-6 (1995) |
| Shock resistance | EN 60068-2-27 (1993) |
| Ambient operating temperature | 0 °C ... +40 °C |
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 2,000 lx, on bar code |
| Bar code print contrast (PCS) | ≥ 60 % |
General notes
| Note on use | For Ethernet connection please use an Ethernet version of CLV6xx |
Classifications
| ECl@ss 5.0 | 27280102 |
| ECl@ss 5.1.4 | 27280102 |
| ECl@ss 6.0 | 27280102 |
| ECl@ss 6.2 | 27280102 |
| ECl@ss 7.0 | 27280102 |
| ECl@ss 8.0 | 27280102 |
| ECl@ss 8.1 | 27280102 |
| ECl@ss 9.0 | 27280102 |
| ECl@ss 10.0 | 27280102 |
| ECl@ss 11.0 | 27280102 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 43211701 |
