    Fixed Mount Bar Code Scanners SICK CLV62x / CLV620

    Type:CLV620-3120
    Part No.:1041553
    add to cart Inquiry Now

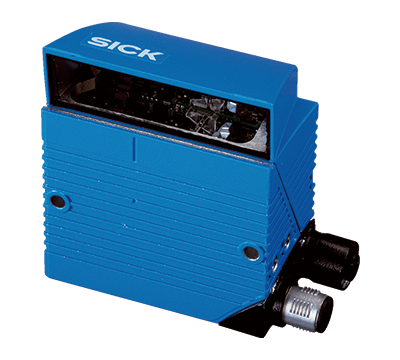

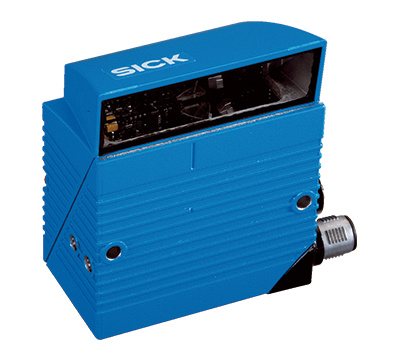

    Fixed Mount Bar Code Scanners SICK CLV62x CLV620 DT35-B15251

    Features
    Version Mid Range
    Connection type Ethernet
    Reading field Side (105°)
    Scanning method Raster scanning
    Sensor type Raster scanner
    Optical focus Fixed focus
    Light source
    Light spot Laser, Visible, Red, 655 nm
    Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
    Aperture angle ≤ 50°
    Scanning frequency 400 Hz ... 1,200 Hz
    Code resolution 0.2 mm ... 1 mm
    Reading distance 60 mm ... 365 mm 1)
    Raster height, number of lines, at distance 15 mm, 8, 185 mm
    • 1) For details see reading field diagram.

    Mechanics/electronics
    Connection type 2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector
    Supply voltage 10 V DC ... 30 V DC
    Power consumption 4.5 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Front screen Glass
    Enclosure rating IP65 (DIN 40 050)
    Protection class III (VDE 0106/IEC 1010-1)
    Weight 230 g, without connecting cable
    Dimensions (L x W x H) 80 mm x 66 mm x 38 mm 1)
    MTBF 100,000 h
    MTTF 40,000 h (Laser diode) 2)
    • 1) Swivel connector is 15 mm longer.
    • 2) At 25 °C.

    Performance
    Readable code structures 1D codes
    Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
    Print ratio 2:1 ... 3:1
    No. of codes per scan

    1 ... 20 (Standard decoder)

    1 ... 6 (SMART620)
    No. of codes per reading interval 1 ... 50 (auto-discriminating)
    No. of characters per reading interval

    1,500

    500 (for multiplexer function in CAN operation)
    No. of multiple readings 1 ... 99

    Interfaces
    Ethernet ✔ , TCP/IP
    Function Host, AUX
    Data transmission rate 10/100 MBit/s
    PROFINET ✔
    Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
    Data transmission rate 10/100 MBit/s
    EtherNet/IP™ ✔
    Data transmission rate 10/100 MBit/s
    EtherCAT® ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600
    Serial ✔ , RS-232, RS-422, RS-485
    Function Host, AUX
    Data transmission rate 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN ✔
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    CANopen ✔
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    DeviceNet™ ✔
    Type of fieldbus integration Optional, over external connection module CDM + CMF
    Digital inputs 3 (“Sensor 1”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
    Digital outputs 2 (Via optional CMC600 parameter memory in CDB620/CDM420)
    Reading pulse Digital inputs, non-powered, serial interface, auto pulse, CAN
    Optical indicators

    6 LEDs (Ready)

    Result

    Laser

    Data

    CAN

    LNK TX
    Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function)
    Configuration software SOPAS ET

    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
    Vibration resistance EN 60068-2-6 (1995)
    Shock resistance EN 60068-2-27 (1993)
    Ambient operating temperature 0 °C ... +40 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on bar code
    Bar code print contrast (PCS) ≥ 60 %

    Classifications
    ECl@ss 5.0 27280102
    ECl@ss 5.1.4 27280102
    ECl@ss 6.0 27280102
    ECl@ss 6.2 27280102
    ECl@ss 7.0 27280102
    ECl@ss 8.0 27280102
    ECl@ss 8.1 27280102
    ECl@ss 9.0 27280102
    ECl@ss 10.0 27280102
    ECl@ss 11.0 27280102
    ETIM 5.0 EC002550
    ETIM 6.0 EC002550
    ETIM 7.0 EC002550
    ETIM 8.0 EC002550
    UNSPSC 16.0901 43211701
