    Fixed Mount Bar Code Scanners SICK CLV63x CLV631

    Type:CLV631-6000
    Part No.:1041986

    add to cart Inquiry Now

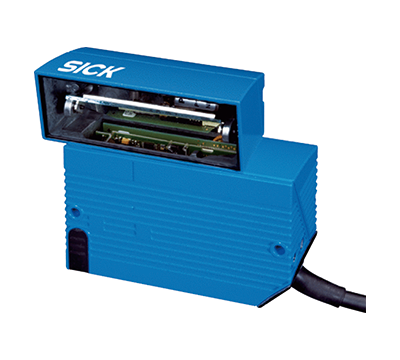

    Fixed Mount Bar Code Scanners SICK CLV63x CLV631 CLV631-6000

    Features
    Version Mid Range
    Connection type Cable
    Reading field Oscillating mirror
    Scanning method Line scanning
    Sensor type Line scanner
    Optical focus Fixed focus
    Light source
    Light spot Laser, Visible, Red, 655 nm
    Light spot Circular
    Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
    Aperture angle ≤ 50°
    Scanning frequency 400 Hz ... 1,200 Hz
    Code resolution 0.25 mm ... 0.5 mm
    Reading distance 78 mm ... 397 mm 1)
    Oscillating mirror functions Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
    Oscillation frequency 0.5 Hz ... 6.25 Hz
    Angle of deflection –20° ... 20°
    • 1) For details see reading field diagram.

    Mechanics/electronics
    Connection type 1 x 15-pin D-Sub HD male connector (0.9 m)
    Supply voltage 18 V DC ... 30 V DC
    Power consumption 6 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Front screen Glass
    Enclosure rating IP65 (EN 60529)
    Protection class III (EN 61140)
    Weight 420 g, with connecting cable
    Dimensions (L x W x H) 95 mm x 107 mm x 41 mm
    MTBF 100,000 h
    MTTF 40,000 h (Laser diode) 1)
    • 1) At 25 °C.

    Performance
    Readable code structures 1D codes
    Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
    Print ratio 2:1 ... 3:1
    No. of codes per scan

    1 ... 20 (Standard decoder)

    1 ... 6 (SMART decoder)
    No. of codes per reading interval 1 ... 50 (auto-discriminating)
    No. of characters per reading interval

    5,000

    500 (for multiplexer function in CAN operation)
    No. of multiple readings 1 ... 99

    Interfaces
    PROFINET ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    Function PROFINET Single Port, PROFINET Dual Port
    EtherCAT® ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600
    Serial ✔ , RS-232, RS-422, RS-485
    Function Host, AUX
    Data transmission rate 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN ✔
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    CANopen ✔
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    DeviceNet™ ✔
    Type of fieldbus integration Optional, over external connection module CDM + CMF
    Digital inputs 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
    Digital outputs 4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420)
    Reading pulse Digital inputs, non-powered, serial interface, auto pulse, CAN
    Optical indicators

    6 LEDs (Ready)

    Result

    Laser

    Data

    CAN

    LNK TX

    Bar graph for displaying the reading rate percentage (10 LEDs)
    Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function)
    Control elements 2 buttons (choose and start/stop functions)
    Configuration software SOPAS ET
    Memory card MicroSD memory card (flash card), optional

    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
    Vibration resistance EN 60068-2-6 (1995)
    Shock resistance EN 60068-2-27 (1993)
    Ambient operating temperature 0 °C ... +40 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on bar code
    Bar code print contrast (PCS) ≥ 60 %

    General notes
    Note on use For Ethernet connection please use an Ethernet version of CLV6xx
