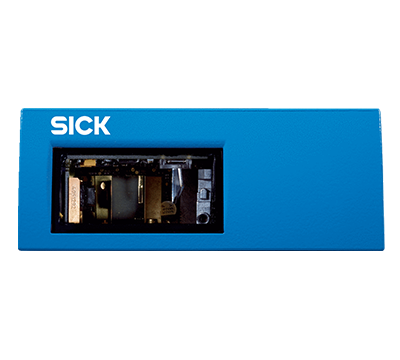

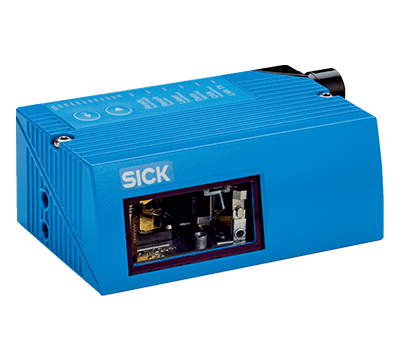

    Fixed Mount Bar Code Scanners SICK CLV65x / CLV650

    Type:CLV650-0120
    Part No.:1042121
    add to cart Inquiry Now
    Fixed Mount Bar Code Scanners SICK CLV65x CLV650 CLV650-0120

    Features
    Version Standard Density
    Connection type Ethernet
    Reading field Front
    Scanning method Line scanning
    Sensor type Line scanner
    Optical focus Auto focus
    Light source Laser, Visible, Red, 658 nm
    Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
    Aperture angle ≤ 50°
    Scanning frequency 600 Hz ... 1,000 Hz
    Code resolution 0.25 mm ... 1 mm
    Reading distance 140 mm ... 1,625 mm 1)
    • 1) For details see reading field diagram.

    Mechanics/electronics
    Connection type 2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector
    Supply voltage 18 V DC ... 30 V DC
    Power consumption 8.5 W
    Housing Aluminum die cast
    Housing color Light blue (RAL 5012)
    Front screen Glass
    Enclosure rating IP65 (EN 60529)
    Protection class III (EN 61140)
    Weight 250 g, without connecting cable
    Dimensions (L x W x H) 61 mm x 96 mm x 38 mm 1)
    MTBF 100,000 h
    MTTF 40,000 h (Laser diode) 2)
    • 1) Swivel connector is 15 mm longer.
    • 2) At 25 °C.

    Performance
    Readable code structures 1D codes
    Bar code types All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
    Print ratio 2:1 ... 3:1
    No. of codes per scan

    1 ... 20 (Standard decoder)

    1 ... 6 (SMART decoder)
    No. of codes per reading interval 1 ... 50 (auto-discriminating)
    No. of characters per reading interval

    5,000

    500 (for multiplexer function in CAN operation)
    No. of multiple readings 1 ... 99

    Interfaces
    Ethernet ✔ , TCP/IP
    Function Host, AUX
    Data transmission rate 10/100 MBit/s
    PROFINET ✔
    Function PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2)
    Data transmission rate 10/100 MBit/s
    EtherNet/IP™ ✔
    Data transmission rate 10/100 MBit/s
    EtherCAT® ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600
    Serial ✔ , RS-232, RS-422, RS-485
    Function Host, AUX
    Data transmission rate 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232)
    CAN ✔
    Function SICK CAN sensor network CSN (master/slave, multiplexer/server)
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    CANopen ✔
    Data transmission rate 20 kbit/s ... 1 Mbit/s
    PROFIBUS DP ✔
    Type of fieldbus integration Optional over external fieldbus module CDF600-2
    DeviceNet™ ✔
    Type of fieldbus integration Optional, over external connection module CDM + CMF
    Digital inputs 3 (“Sensor 1”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420)
    Digital outputs 2 (Via optional CMC600 parameter memory in CDB620/CDM420)
    Reading pulse Digital inputs, non-powered, serial interface, auto pulse, CAN
    Optical indicators

    6 LEDs (Ready)

    Result

    Laser

    Data

    CAN

    LNK TX

    Bar graph for displaying the reading rate percentage (10 LEDs)
    Acoustic indicators Beeper/buzzer (can be switched off, can be allocated as a result indication function)
    Control elements 2 buttons (choose and start/stop functions)
    Configuration software SOPAS ET
    Memory card MicroSD memory card (flash card), optional

    Ambient data
    Electromagnetic compatibility (EMC) EN 61000-6-3 (2001-10) / EN 61000-6-2:2005
    Vibration resistance EN 60068-2-6 (1995)
    Shock resistance EN 60068-2-27 (1993)
    Ambient operating temperature 0 °C ... +40 °C
    Storage temperature –20 °C ... +70 °C
    Permissible relative humidity 90 %, Non-condensing
    Ambient light immunity 2,000 lx, on bar code
    Bar code print contrast (PCS) ≥ 60 %

    Classifications
    ECl@ss 5.0 27280102
    ECl@ss 5.1.4 27280102
    ECl@ss 6.0 27280102
    ECl@ss 6.2 27280102
    ECl@ss 7.0 27280102
    ECl@ss 8.0 27280102
    ECl@ss 8.1 27280102
    ECl@ss 9.0 27280102
    ECl@ss 10.0 27280102
    ECl@ss 11.0 27280102
    ETIM 5.0 EC002550
    ETIM 6.0 EC002550
    ETIM 7.0 EC002550
    ETIM 8.0 EC002550
    UNSPSC 16.0901 43211701
