Fixed Mount Bar Code Scanners SICK CLV65x / CLV650
Type:CLV650-6120
Part No.:1042125
Part No.:1042125

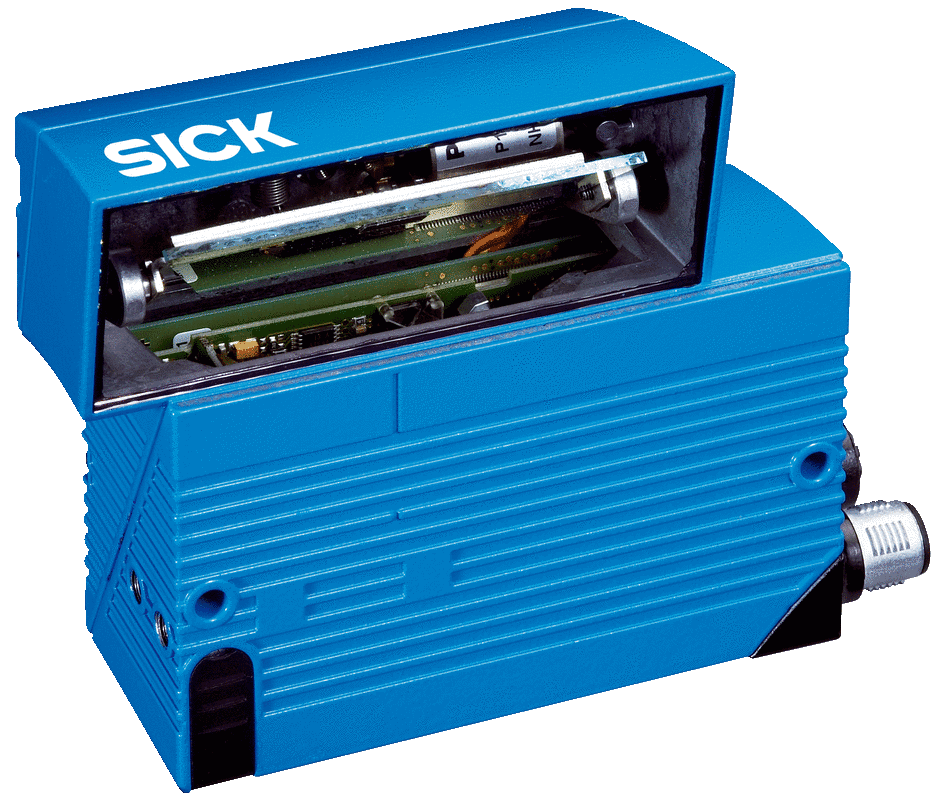

Fixed Mount Bar Code Scanners SICK CLV65x / CLV650 CLV650-6120
Features
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
Features
| Version | Standard Density | ||||||
| Connection type | Ethernet | ||||||
| Reading field | Oscillating mirror | ||||||
| Scanning method | Line scanning | ||||||
| Sensor type | Line scanner | ||||||
| Optical focus | Auto focus | ||||||
|
|||||||
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) | ||||||
| Aperture angle | ≤ 50° | ||||||
| Scanning frequency | 600 Hz ... 1,000 Hz | ||||||
| Code resolution | 0.25 mm ... 1 mm | ||||||
| Reading distance | 125 mm ... 1,570 mm 1) | ||||||
|
|||||||
- 1) For details see reading field diagram.
Mechanics/electronics
| Connection type | 2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector |
| Supply voltage | 18 V DC ... 30 V DC |
| Power consumption | 9.5 W |
| Housing | Aluminum die cast |
| Housing color | Light blue (RAL 5012) |
| Front screen | Glass |
| Enclosure rating | IP65 (EN 60529) |
| Protection class | III (EN 61140) |
| Weight | 250 g, without connecting cable |
| Dimensions (L x W x H) | 95 mm x 107 mm x 41 mm 1) |
| MTBF | 100,000 h |
| MTTF | 40,000 h (Laser diode) 2) |
- 1) Swivel connector is 15 mm longer.
- 2) At 25 °C.
Performance
| Readable code structures | 1D codes |
| Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey |
| Print ratio | 2:1 ... 3:1 |
| No. of codes per scan |
1 ... 20 (Standard decoder) 1 ... 6 (SMART decoder) |
| No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
| No. of characters per reading interval |
5,000 500 (for multiplexer function in CAN operation) |
| No. of multiple readings | 1 ... 99 |
Interfaces
| Ethernet | ✔ , TCP/IP |
| Function | Host, AUX |
| Data transmission rate | 10/100 MBit/s |
Ambient data
| Electromagnetic compatibility (EMC) | EN 61000-6-3 (2001-10) / EN 61000-6-2:2005 |
| Vibration resistance | EN 60068-2-6 (1995) |
| Shock resistance | EN 60068-2-27 (1993) |
| Ambient operating temperature | 0 °C ... +40 °C |
| Storage temperature | –20 °C ... +70 °C |
| Permissible relative humidity | 90 %, Non-condensing |
| Ambient light immunity | 2,000 lx, on bar code |
| Bar code print contrast (PCS) | ≥ 60 % |
