Fixed-quantity Pickup Screw Feeder Ohtake FM-36 Type
- Batch screw counter supplies precise number of screws
- Continuous screw supply form the rail
- Compatible with different manufacturing settings

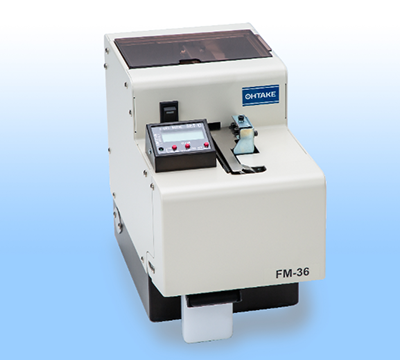

Fixed-quantity Pickup Screw Feeder FM-36 Type
Batch screw counter supplies precise number of screws
The counter can be set from 1~99, supplying exact amount of screws.
Continuous screw supply form the rail
The horizontal rail prevents jamming of screws.
Compatible with different manufacturing settings
Simple installation allows uses in various production environments.
Batch screw counter supplies precise number of screws
The counter can be set from 1~99, supplying exact amount of screws.
Continuous screw supply form the rail
The horizontal rail prevents jamming of screws.
Compatible with different manufacturing settings
Simple installation allows uses in various production environments.
| Supported screw diameter (mm) |
Main component type | Swap rail set type | |
| FM Series | FME Series | FM/FME | |
|---|---|---|---|
| 3.0 | FM-3630 | FME-3630 | FR30SET |
| 3.5 | FM-3635 | FME-3635 | FR35SET |
| 4.0 | FM-3640 | FME-3640 | FR40SET |
| 5.0 | FM-3650 | FME-3650 | FR50SET |
| 6.0 | FM-3660 | FME-3660 | FR60SET |
- Product name：FM-36
- Dimensions：130(W)×254(D)×201(H)
- Total weight (with rail) ：Approx. 6.0kgf
- Power supply：AC100～240V DC15V 1A AC adapter included
- Overload protection：-
- Output signal：-
- Brush overload prevention：-
- Screw size：M3.0～M6.0
- Screw length：Up to 25mm
- Capacity：Approx. 150cc
- Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
