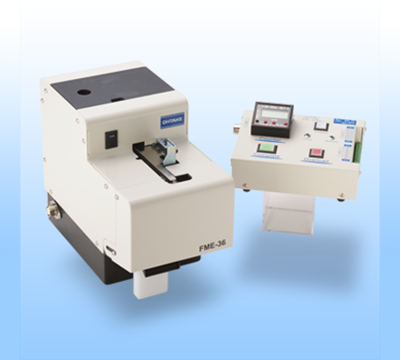

Fixed-quantity Pickup Screw Feeder Ohtake FME-36 Type

Fixed-quantity Pickup Screw Feeder FME-36 Type

Batch screw counter supplies precise number of screws
The counter can be set from 1~127, supplying exact amount of screws.

Continuous screw supply form the rail
The horizontal rail prevents jamming of screws.

Compatible with different manufacturing settings
Simple installation allows uses in various production environments.

PLC- and PC-compatible models available
The FME model is compatible with PROFI BUS/ DeviceNet/ CC-Link and other control schemes or protocols.





Supported screw diameter (mm)	Main component type		Swap rail set type
	FM Series	FME Series	FM/FME
3.0	FM-3630	FME-3630	FR30SET
3.5	FM-3635	FME-3635	FR35SET
4.0	FM-3640	FME-3640	FR40SET
5.0	FM-3650	FME-3650	FR50SET
6.0	FM-3660	FME-3660	FR60SET



• Product name：FME-36
• Dimensions：130(W)×254(D)×201(H)
• Total weight (with rail) ：Approx. 6.0kgf
• Power supply：AC100V～240V DC15V 1A AC adapter included
• Overload protection：-
• Output signal：-
• Brush overload prevention：-
• Screw size：M3.0～M6.0
• Screw length：Up to 25mm
• Capacity：Approx. 150cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver
