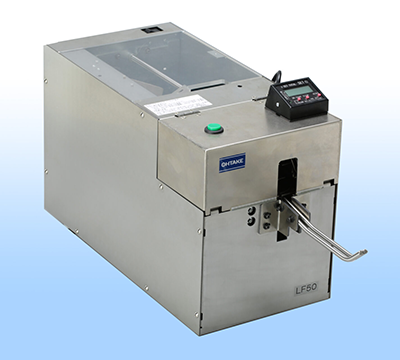

Fixed-quantity Pickup Screw Feeder Ohtake LF FL-R Type

Fixed-quantity Pickup Screw Feeder LF / FL-R Type

Fixed-quantity feeder for rivets
Available for a mandrel diameter of φ1.8 – 2.6 and a length of up to 50 mm (in case of LF50)

Align the orientation vertically and feed the set number of rivets
Rivets with the same orientation can be taken out by hand from the rail.

Flexible for line changes
Easy installation just by placing it. Easy to change workpieces and production lines.



Mandrel diameter (mm)	Model number
	LF series	FL-R series
	Max. mandrel length	Max. mandrel length
	50mm	29mm
2.0	LF50-20	FL-R20
2.3	LF50-23	-
2.6	LF50-26	-
3.0	LF50-30	-

• Product name：LF50　｜　FL-R
• Dimensions：169(W)×354(D)×229(H)　｜　115(W)×225(D)×152(H)
• Total weight (with rail) ：Approx. 13 kg　｜　Approx. 4.1 kg
• Power supply：AC100V - 240V DC15V 3A AC Adapter
• Overload protection：-
• Output signal：-
• Safety function：Stops operation when the stock chamber cover is open
• Applicable mandrel diameter：φ1.8～2.8　｜　φ1.8~1.9
• Screw length：Up to 50mm　｜　Up to 29 mm
• Applicable rivet material：Iron only because magnet is used for the internal mechanism
• Capacity：Approx. 1000 cc　｜　Approx. 300 cc
• Accessories：Instruction manual, AC adapter, hex wrench, adjustment screw driver, ground wire
